Freedom Expansion Board for GD3000 - BLDC Motor Pre-Driver

FRDM-GD3000EVB Active

Roll over image to zoom in

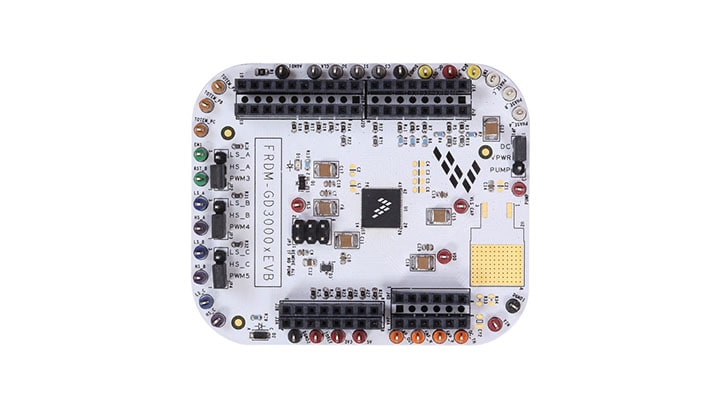

The FRDM-GD3000EVB Freedom Expansion Board is an easy-to-use circuit board that allows the user to exercise all the functions of the GD3000 pre-driver to drive a brushless DC motor. The inputs to the FRDM-GD3000EVB can be easily controlled using 3.3 V or 5.0 V GPIO signals.

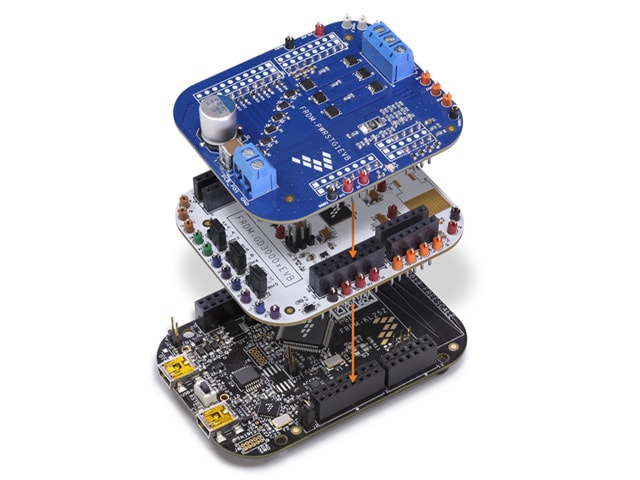

The FRDM-GD3000EVB is designed to be used in conjunction with a FRDM-PWRSTG Freedom Expansion Boards. Each FRDM-PWRSTG board is geared toward a different type of application. Both an FRDM-PWRSTG board and an FRDM MCU board are required for full functionality of the FRDM-GD3000EVB.

Used in conjunction with the FRDM-KL25Z, SPI Generator (SPIGen) may be used to demonstrate certain limited functions of the device.

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • GD3000: 3-Phase Brushless Motor Pre-Driver

Features

Connectivity

  • Enabling/disabling of outputs

Power Management

  • Optional built-in voltage regulator to supply logic level circuitry

Debug

  • Test points to allow probing of signals

Support

  • Compatible with NXP® KV series Freedom Development Platforms
  • Compatible with any FRDM-PWRSTG Freedom Expansion Board

User Components

  • LEDs to indicate the voltage supply status

Buy Options

FRDM-GD3000EVB-Image

Click to expand

  • FRDM-GD3000EVB
    Active

  • Three-Phase Motor Driver Evaluation Board Power Stage Expansion.

    • FRDM-GD3000EVB Freedom Expansion Board
    • Arduino® UNO Rev3 sockets
    • Extra Jumpers
  • $40.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
