PF7100 Embedded Software Driver

PF71-SW-DRIVER

Roll over image to zoom in

This embedded software solution provides high-level support for PF7100 family of PMICs.

The driver provides an abstraction of the device, enabling easy configuration of its functional blocks such as watchdog, regulators, clocks, safety features etc. The driver also provides complete register map of the device.

Implementation of the PF7100 software driver is generic, making the driver suitable for any microcontroller fitted with I2C module.

Example project for KL25Z microcontroller is a part of the package.

Features

PF7100 SW Driver

  • I2C communication abstraction.
  • Watchdog settings and refresh.
  • Regulators and safety features configuration.
  • Complete register map.

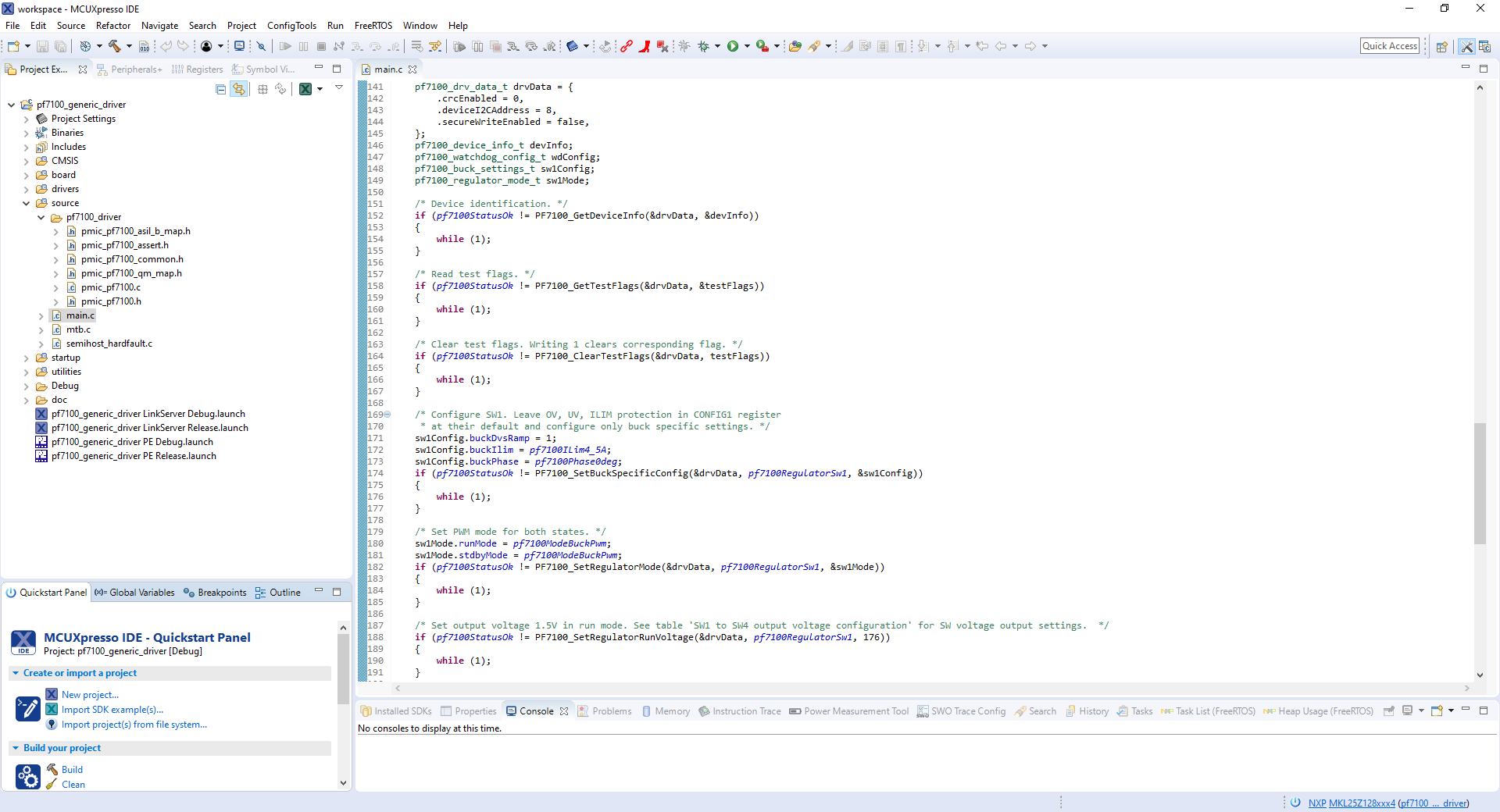

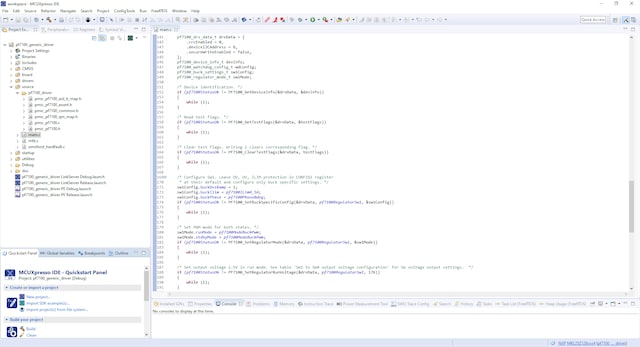

MCUXpresso example project

  • Example project for PF7100 and KL25Z evaluation board.

Supported Devices

  • PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level
