PF7100 OTP Programming Board

KITPF7100FRDMPGM Active

Roll over image to zoom in

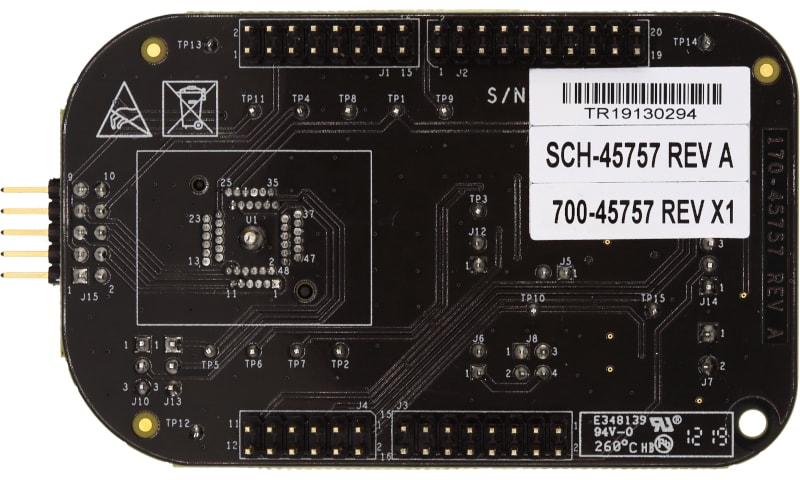

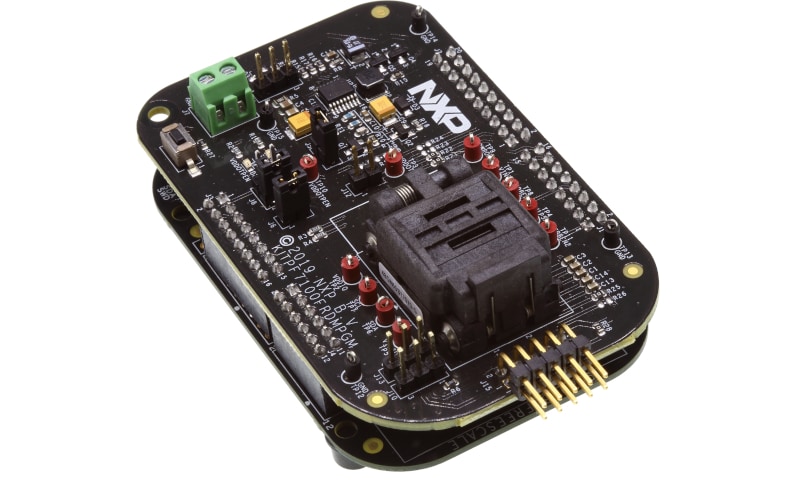

The KITPF7100FRDMPGM is a programming board featuring a 48-pin QFN socket for PF7100 PMIC. The kit integrates all hardware needed to program the OTP registers in the PMIC. It integrates a communication bridge based on the FRDM-KL25Z freedom board to communicate with the NXP GUI software interface to program the OTP configuration.

Supported Devices

Power Management

PMICs

  • PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level

Features

Programming socket

  • Clamshell 48-pin QFN socket

System features

  • 5.0 V operating input voltage range (from USB connector)
  • Integrated boost converted to supply VDDOTP programming voltage
  • USB to I²C communication via the FRDM-KL25Z interface
  • In-line programming interface connector

Buy Options

KITPF7100FRDMPGM-Image

Click to expand

  • KITPF7100FRDMPGM
    Active

  • PF7100 OTP Programming Board.

    • Assembled and tested KITPF7100FRDMPGM

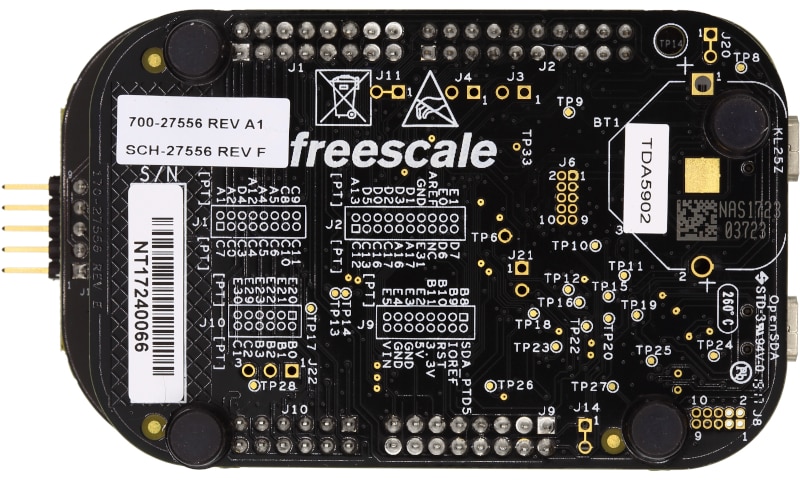

    • Preprogrammed FRDM-KL25Z

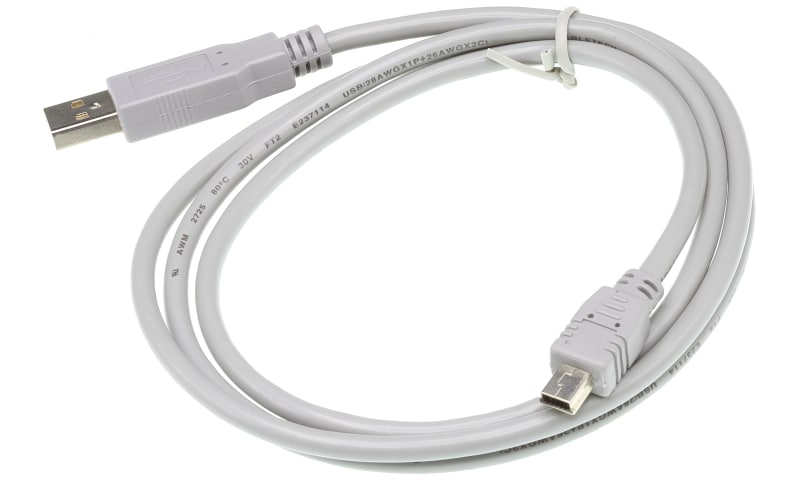

    • 3.0 ft. USB-STD A to USB-B-mini cable
  • $235.99 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
