Refrigerator Compressor

REFRIGERATOR-COMPRESSOR

Roll over image to zoom in

The refrigerator compressor solution with brushless DC motor (BLDC) sensorless control offers greater efficiency using field-oriented control (FOC) based on the MC56F82xxx controller.

Brushless DC motors are used more and more often in order to increase the efficiency in reciprocating refrigerator compressors. Because there’s nowhere to install sensors in the compressor, the motor has to have a sensorless controller.

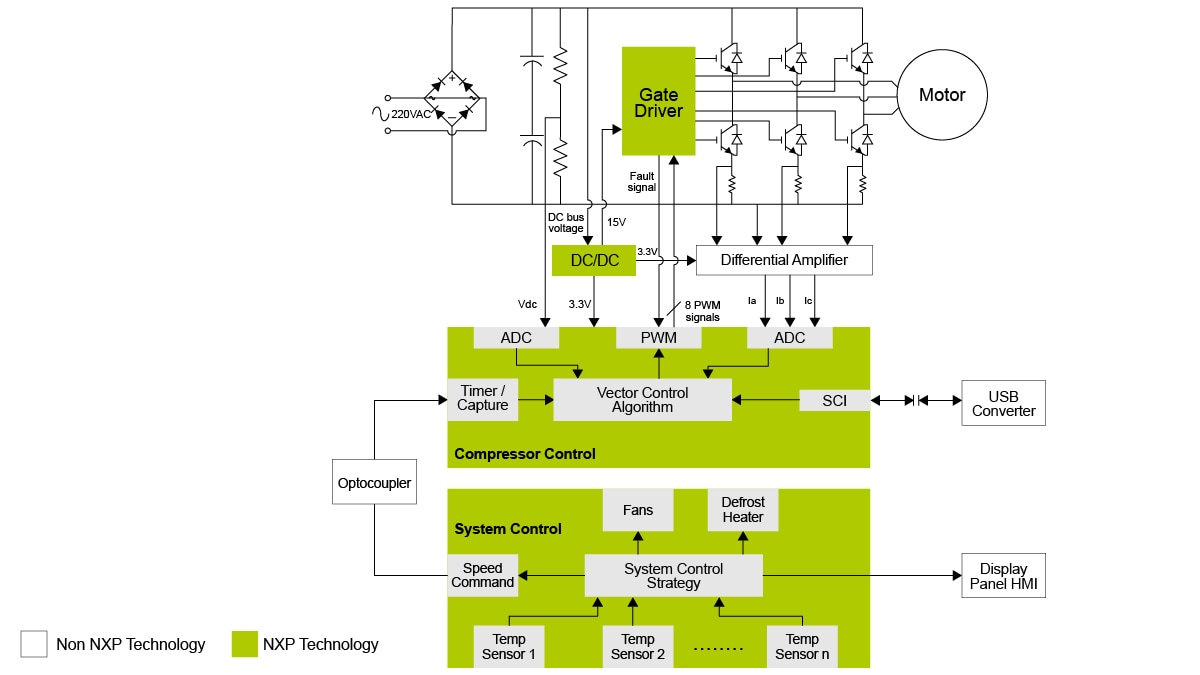

Block Diagram

Refrigerator Compressor

Refrigerator Compressor Block Diagram
Get diagram PDF

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • GD3000: 3-Phase Brushless Motor Pre-Driver

Integrated Switching Regulators

Processors and Microcontrollers

32-Bit 56800EX/EF Core

  • MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers

Features

Power Consumption

  • Less than 0.6 W standby for the motor drive board

Input

  • Input voltage range of 80 % – 110 % rated mains voltage

Control

  • High performance VF refrigerator compressor control solution with Class 1 energy efficiency
  • Sensorless FOC control with speed and current closed-loop control

Certified

  • IEC60730 certified controller

Buy Options

HVP-MC3PH-Image

Click to expand

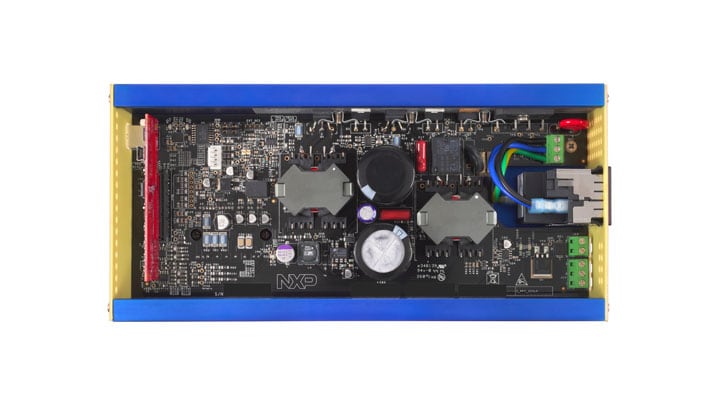

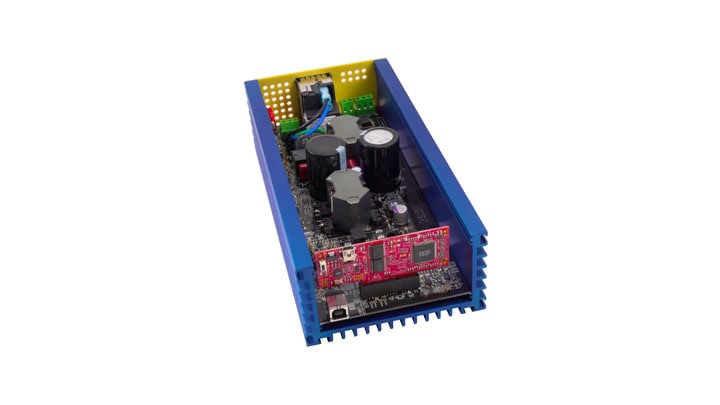

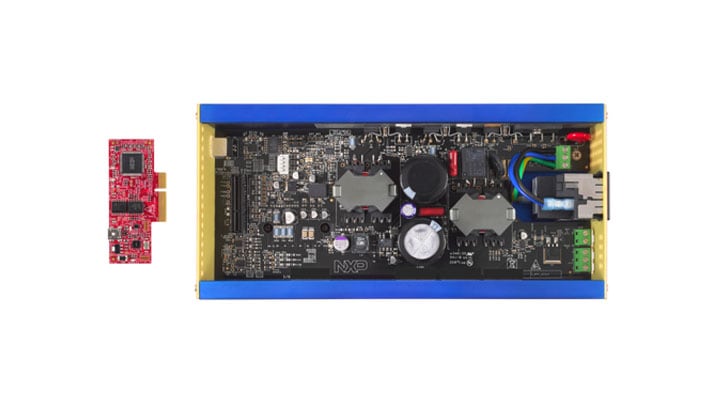

  • HVP-MC3PH
    Active

  • High-Voltage Development Platform.

  • Kit contains:

    • HVP-MC3PH High-Voltage Development Platform (main board)

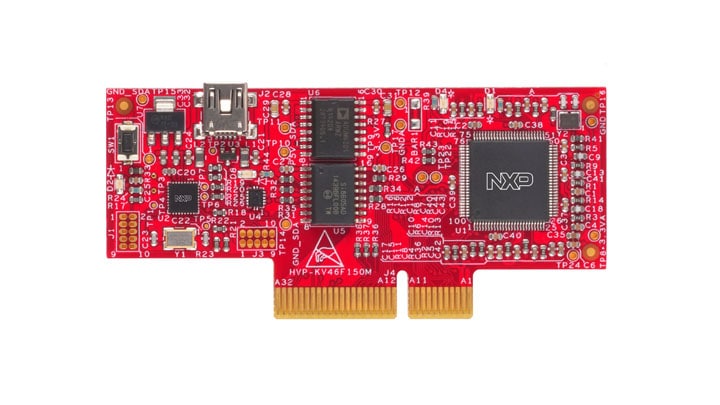

    • HVP-KV46F150M Controller Card
    • USB 2.0 cable, receptacle A to plug B
    • USB 2.0 cable, receptacle A to mini B
    • AC cable: USA/Canada, UK, JPN, EU
  • $690.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
HVP-56F82748-Image

Click to expand

  • HVP-56F82748
    Active

  • High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz.

  • $57.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
PCA9410AUK-Image

Click to expand

  • PCA9410AUK
    Active

  • 3.0 MHz, 500 mA, DC-to-DC boost converter.

  • For a quantity of 10K
Order from distributors
