Evaluation Kit - 33937, Three-Phase FET Pre-Driver

KIT33937AEKEVBE Active

Roll over image to zoom in

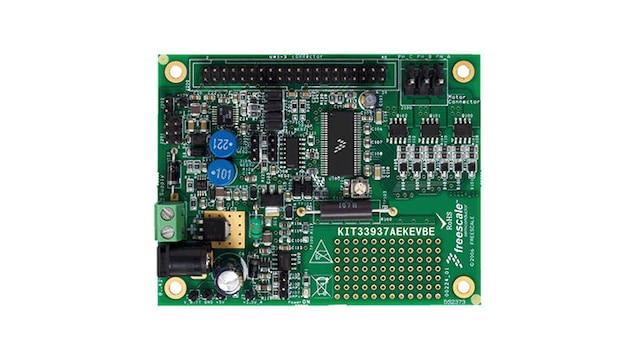

This Evaluation Kit features the NXP® MC33937, a Field Effect Transistor (FET) pre-driver designed for 3-phase motor control and similar applications.

The integrated circuit (IC) uses SMARTMOS® technology and contains three high side FET pre-drivers and three low side FET pre-drivers. The IC interfaces to a MCU via six direct input control signals, an SPI port for device setup and asynchronous reset, enable and interrupt signals. Both 5 V and 3 V logic level inputs are accepted and 5.0V logic level outputs are provided.

This Evaluation kit may be used with the KITUSBSPIDGLEVME.

Supported Devices

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver
  • MC34937: Three Phase Field Effect Transistor Pre-driver

BLDC, H-Bridge, Stepper

  • GD3000: 3-Phase Brushless Motor Pre-Driver

Features

Key Features

  • Fully specified from 8 to 40 V covers 12 and 24 V automotive systems
  • Extended operating range from 6 to 58 V covers 12 and 42 V systems
  • Greater than 1 A gate drive capability with protection
  • Protection against reverse charge injection from CGD and CGS of external FETs
  • Includes a charge pump to support full FET drive at low battery voltages
  • Deadtime is programmable via the SPI port
  • Simultaneous output capability enabled via safe SPI command

Buy Options

KIT33937AEKEVBE-Image

Click to expand

  • KIT33937AEKEVBE
    Active

  • Evaluation Kit - MC33937, Three-Phase Field Effect Transistor Pre-driver.

  • Kit contains:

    • KIT33937AEKEVBE Hardware
    • Quick Reference Guide
  • $241.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
