Evaluation Kit - USB-SPI Interface, MC68HC908JW32, Dongle

KITUSBSPIDGLEVME Active

Roll over image to zoom in

This evaluation kit (EVK) is a working hardware/software example that allows you to become familiar with the NXP MC68HC908JW32 MCU by means of an actual useful application, a USB to SPI and USB to parallel converter. The main function provided by this EVK is to allow a PC that may not have a parallel port to communicate with other NXP EVKs via a USB port. The USB port is a standard feature on almost every new PC. This kit makes use of the MC68HC908JW32;s built-in USB, SPI and parallel ports.

Product Details

Supported Devices

Power Management

Pre-Drivers

  • MC33800: Engine Control Integrated Circuit
  • MC33812: Multifunctional Ignition and Injector Driver
  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Configurable Switches

  • MC33879: Configurable Octal Serial Switch

BLDC, H-Bridge, Stepper

  • MC33926: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 20 kHz

Powertrain and Engine Control

  • MC33932: H-Bridge Motor Driver, 5-28 V, 5 A, 11 kHz

System Basis Chips

  • MC33907: Safe System Basis Chip DC/DC up to 800 mA
  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN
  • MC33912: LIN SBC with DC Motor Predriver and Current Sense

Multi-Switch Detection Interface

  • MC33972: MSDI with Suppressed Wakeup
  • MC33975: MSDI with 32 mA Suppressed Wakeup

Processors and Microcontrollers

8-bit Legacy MCUs

More

Features

Key Features

  • Reprogramming capability for the MC68HC908JW32, through the USB port, using SPIGen v7.0 or later (see New Software link in right column of this page) or through the onboard MON08 connector port.
  • Uses Our PC-based SPIGen software

Connectivity

  • USB to SPI converter
  • USB to parallel converter
  • PCB contains a USB type A connector (male) and a USB type B connector (female)

Microcontroller

  • MC68HC908JW32 MCU

Buy Options

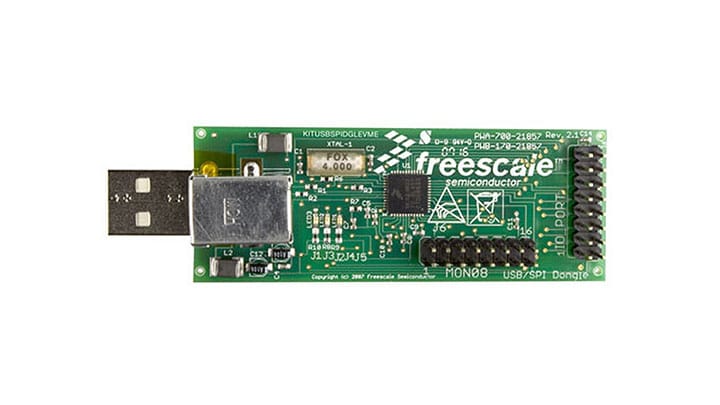

KITUSBSPIDGLEVME-Image

Click to expand

  • KITUSBSPIDGLEVME
    Active

  • Evaluation Kit - USB to SPI Interface BD featuring the MC68HC908JW32 with Dongle.

  • Kit contains:

    • KITUSBSPIDGLEVME hardware
    • Various Cables (2)
    • Quick Reference Guide
  • $80.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
