SPI-Programmable H-Bridge Brushed DC Motor Driver

HB2002 Active

Roll over image to zoom in

The HB2002 meets shifting demands for motor control applications in automotive and industrial spaces, delivering the efficient and robust performance necessary for tomorrow's safety-critical solutions.

  • Safety and Protection: H-Bridge motor driver designed using ISO 26262 processes to support ASIL C and D system qualifications.
  • Scalability: SPI-programmable current limits, slew rates, fault reporting, and control schemes enable the same IC to service various applications and motor sizes.
  • Thermal Management: Integrated power MOSFETs have temperature-dependent current limit foldback to reduce power and prevent excessive device heating.

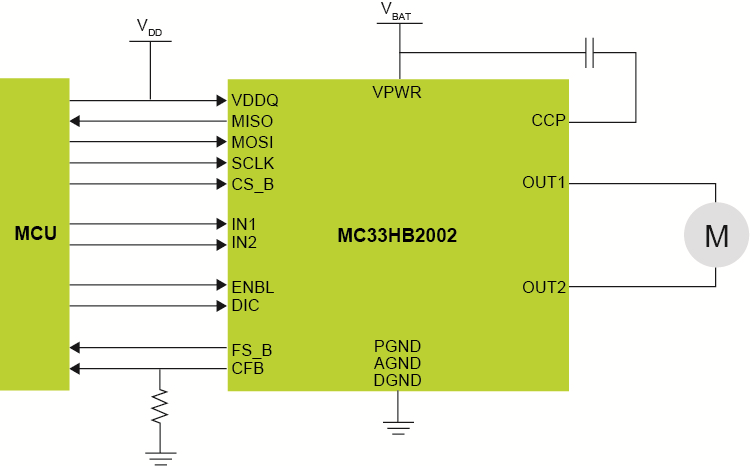

Block Diagram

HB2002: SPI-Programmable H-Bridge Brushed DC Motor Driver

HB2002 Block Diagram
Get diagram PDF

Features

Key Features

  • Advanced diagnostic and fault reporting, via SPI
  • Accuracy for real-time current feedback (5%)
  • Low RDS(on) integrated MOSFETs: 235 mΩ per device MAX (TJ = 150°C)
  • Thermally-efficient QFN package: RΘJC < 1.0 °C/W
  • Wide operating range: 5 V to 28 V, 40 V transient
  • Eight slew rate options, selectable by SPI: 0.25 to > 16 V/µs
  • Four current limit options, selectable by SPI: 5.4/7.0/8.8/10.7 A
  • Configurable for full bridge or half-bridge mode
  • Load supply voltage min. 5 V, max. 28 V
  • Ambient operating temperature -40 to 125 °C
  • Parallel and SPI interface and input controllers
