MPC56xx shield

XPC56xxMB2 Active

Roll over image to zoom in

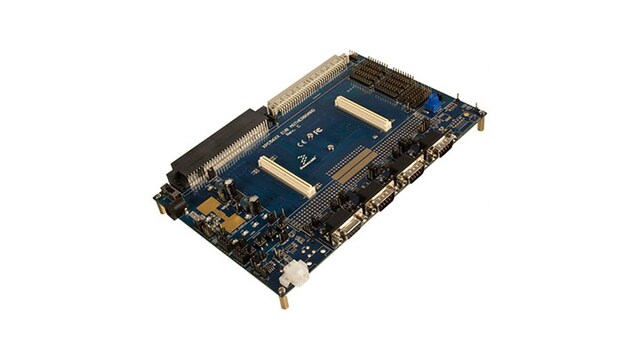

The XPC56xxMB2 motherboard is an evaluation system supporting the NXP® MPC56xx MPUs.

  • The complete system consists of an XPC56xxMB2 motherboard and an XPC56xxADPT mini-module (not included) which plugs into the motherboard.
  • Different mini-modules are available for evaluating a variety of devices in the MPC56xx family of MPUs.
  • The evaluation system (motherboard and mini-module) allows full access to the CPU, all of the CPU’s I/O signals, and the motherboard peripherals (such as CAN, SCI, LIN).

Select your Evaluation System under Current Updates and Releases section below.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose
  • MPC560xP: Ultra-Reliable MPC560xP MCU for Automotive and Industrial Safety Applications
  • MPC560xS: Ultra-Reliable MPC560xS MCU for Automotive and Industrial Instrument Clusters
  • MPC563xM: Ultra-Reliable MPC563xM for Automotive and Industrial Engine Management
  • MPC564xA: Ultra-Reliable MPC564xA MCU for Automotive and Industrial Engine Management
  • MPC564xB-C: Ultra-Reliable MPC564xB-C MCU for Automotive and Industrial Control Applications
  • MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

Products

No Longer Manufactured

  • MC33730: Power Supply with Multiple Linear Regulators

Features

Connectivity

  • Two CAN channels with jumper enable
    • One CAN channel with high-speed transceiver
    • One CAN channel with low-speed fault tolerant and high-speed transceiver (selectable with jumpers)
  • Two LIN channels with jumper enable
    • One channel with footprints only
    • One channel with transceiver
  • One SCI channel with jumper enables

Power Management

  • 12 V DC power supply input barrel connector

Components

  • Four user push buttons with jumper enable and polarity selection
  • Four user LEDs with jumper enable

Buy Options

MPC56XXMB2-Image

Click to expand

  • MPC56XXMB2
    Active

  • Mother board for evaluation of Qorivva MPC56xx devices, CAN, LIN, SCI, FlexRay, LEDs, push buttons.

    • When purchasing XPC56xxMB2 you will get:
      • One XPC56xxMB2 Motherboard
      • One XPC56xx Resources CD–ROM
      • NXP Warranty Card
      • Power Supply
  • $375.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
