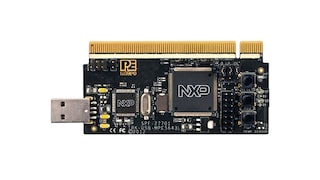

Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

MPC564xL Active
SafeAssure<sup>&#174;</sup> Functional Safety Solution Program

Click over video to play

ISO 26262 functional safety standard certification

The MPC5643L 32-bit MCU built on Power Architecture® technology reduces design complexity and component count by putting key functional safety features on a single chip. It specifically addresses the ISO 26262 safety standard up to the most stringent ASIL D requirements.

  • Dual-core, dual-issue architecture enables more performance while using less power
  • Lockstep mode provides a software environment for redundant processing and calculations
  • Decoupled parallel mode supports applications needing maximum performance or software diversity
  • Precise and deterministic control timing for real-time applications, such as motor control
  • A SafeAssure® functional safety solution

Block Diagram

MPC564XL Microcontroller Block Diagram

MPC564XL Microcontroller Block Diagram
Get diagram PDF

Features

  • Dual e200 Z4 CPU architecture
  • Dual processing spheres including; CPU, DMA, interrupt controller, crossbar and MPU for logic level fault detection
  • Two statically configurable modes of operation: Lockstep operation (redundant processing and calculations) and dual parallel mode (independant core operation)
  • Fault collection unit, which monitors and manages fault events
  • Error correction coding on RAM and flash memory allows detection/correction of memory errors
  • First MCU to achieve ISO 26262 functional safety standard certification
  • Robust communications with FlexRay™ and CAN/safety port high-speed low latency messaging
  • Cross-triggering unit coordinates ADC, timer and PWM generation and minimizes CPU interrupt load
  • eTimer x 3
  • ADC x 2
  • This product is included in our product longevity program, with assured supply for a minimum of 15 years after launch
