Evaluation Board - MC33908, Safe DC/DC up to 1.5 A

KIT33908AEEVB Active

Roll over image to zoom in

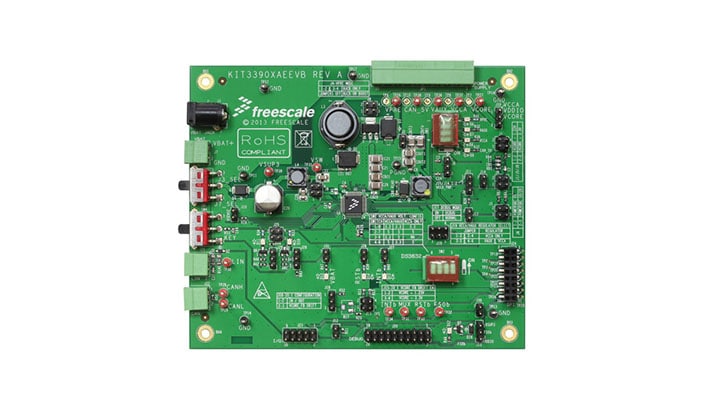

The KIT33908AEEVBE evaluation board demonstrates the functionality of the NXP® MC33908 power system basis chips. These ICs are equipped with an Intelligent Power Management System, including safety features targeting the latest ISO 26262 automotive functional safety standard. The evaluation board is a standalone board that can be used either with a compatible MCU or with a PC. In the latter case, it is necessary to use an SPI/USB accessory interface board.

Supported Devices

Power Management

System Basis Chips

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

Features

Connectivity

  • LIN bus
  • CAN-bus
  • IO connector (IO_0 to IO_5)
  • Debug connector
    • SPI bus
    • CAN digital
    • LIN digital
    • RSTb
    • FSOb
    • INTb
    • Debug
    • MUX_OUT

Power Management

  • VCORE configuration: 1.23 V or 3.3 V
  • VCCA configuration: 5.0 V / 3.3 V
  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VAUX configuration: 3.3 V or 5.0 V

User Components

  • Ignition key switch
  • Signaling LED to give state of signals or regulators

General Specifications

  • Internal transistor or external PNP
  • Enabled or disabled at startup

Buy Options

KIT33908AEEVB-Image

Click to expand

  • KIT33908AEEVB
    Active

  • Evaluation Kit - MC33908, PowerSBC with High Speed CAN&LIN transceivers.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $144.90 USD
  • For a quantity of 1
    • Availability: Pending Stock
