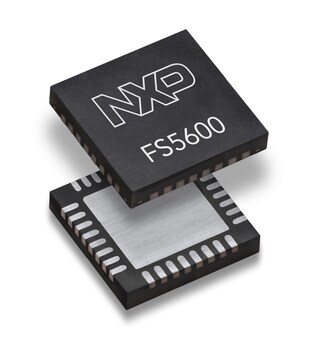

The FS56 System Basis Chip (SBC) for Automotive features a battery connected DC-DC buck controller with external FET and a battery connected DC-DC buck controller with internal FET.
In addition, it offers functional safety features such as independent voltage monitors, windowed watchdog timer, I/O monitoring via ERRMON and FCCU and built-in-self test. The FS56 is offered in QM, ASIL B and Enhanced ASIL B versions.
The FS56 offers highly configurable General Purpose Input/Outputs for seamless operation with PF PMICs as PF8x, PF7x and PF5x families.
The FS56 presents an optimized architecture for automotive with low-power modes and EMC minimizing as spread spectrum, frequency tuning and synchronization.
| Part Number | Target Market | Safety Grade | OTP ID |
|---|---|---|---|
| MFS5600AMMA0ES | Automotive | QM | A0-Non-programmed |
| MFS5600AMBA0ES | Automotive | ASIL B | A0-Non-programmed |
| MFS5600AMEA0ES | Automotive | Enhanced ASIL B | A0-Non-programmed |
| MFS5600AMMA7ES | Automotive | QM | A7 – SW1 = 5.0 V, SW2 = 3.3 VMFS5600A7ES-OTP-Report |
| MFS5600AMMA8ES | Automotive | QM | A8 – SW1 = 3.3 V, SW2 = 5.0 VMFS5600A8ES-OTP-Report |
| MFS5600AMBAFES | Automotive | ASIL B | AF – SW1 = 3.3 V, SW2 = 5.0 VMFS5600AMBAFES-OTP-Report |
| MFS5600AMMABES | Automotive | QM | AB – SW1 = 5.0 V, SW2 = 5.0 VMFS5600AMMABES-OTP-Report |
| Part Number | Target Market | Safety Grade | OTP ID |
|---|---|---|---|
| MFS5600AVNA0EP | Industrial | QM | A0-Non-programmed |
| MFS5600AVMABEP | Industrial | QM | AB – SW1 = 5.0 V, SW2 = 5.0 VMFS5600AVMABEP-OTP-Report |
| MFS5600AVMADEP | Industrial | QM | AD – SW1 = 3.3 V, SW2 = 3.3 VMFS5600AVMADEP-OTP-Report |
| MFS5600AVMAEEP | Industrial | QM | AE – SW1 = 5.5 V, SW2 = 5.0 VMFS5600AVMAEEP-OTP-Report |
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
| | | | | |
|---|---|---|---|---|---|
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
