FS5600 Evaluation Board

KITFS5600FRDMEVM Active

Roll over image to zoom in

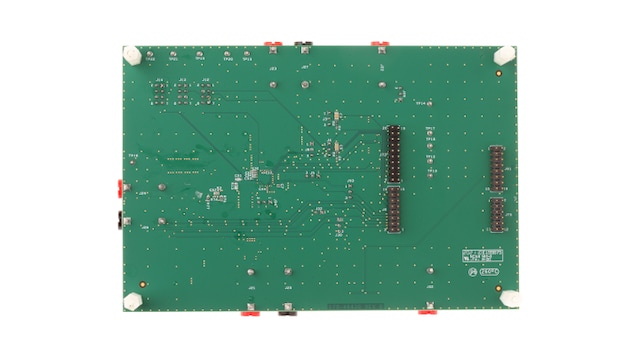

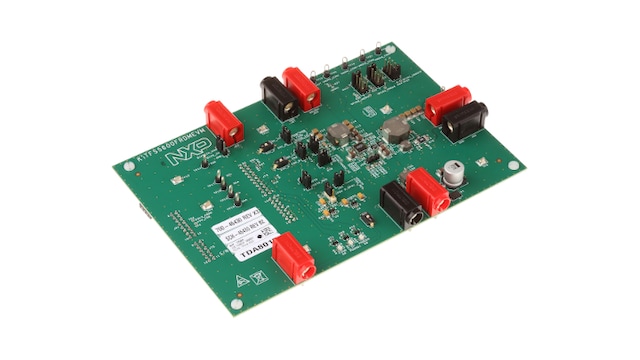

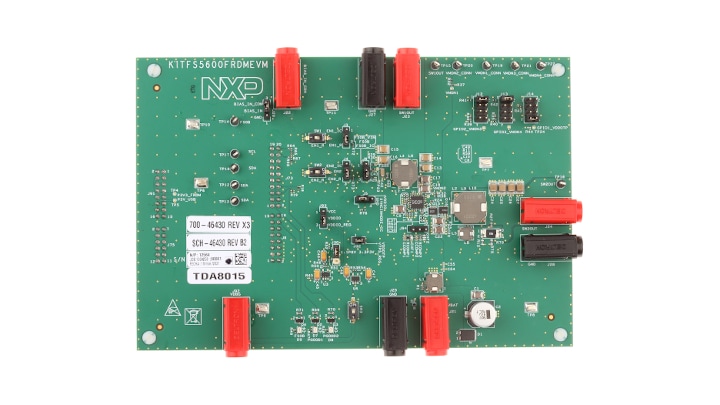

The KITFS5600FRDMEVM is the customer evaluation board featuring the FS5600 dual DC-DC converter.

The kit integrates all hardware needed to fully evaluate the FS5600. It integrates a communication bridge based on the FRDM-K82F freedom board to interface with the FS5600 GUI software interface and fully configure and control the FS5600.

Supported Devices

Power Management

System Basis Chips

  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

Features

General Features

  • Dual-Output
  • OTP Programmable
  • Fit to ASIL B Safety Level

Buy Options

KITFS5600FRDMEVM-Image

Click to expand

  • KITFS5600FRDMEVM
    Active

  • FS5600 Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
    • Pre-programmed FRDM-K82F freedom development platform
    • USB cable
    • Quick start guide
  • $125.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
