SAF8544 Pluto Sensor - Radar Reference Design
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

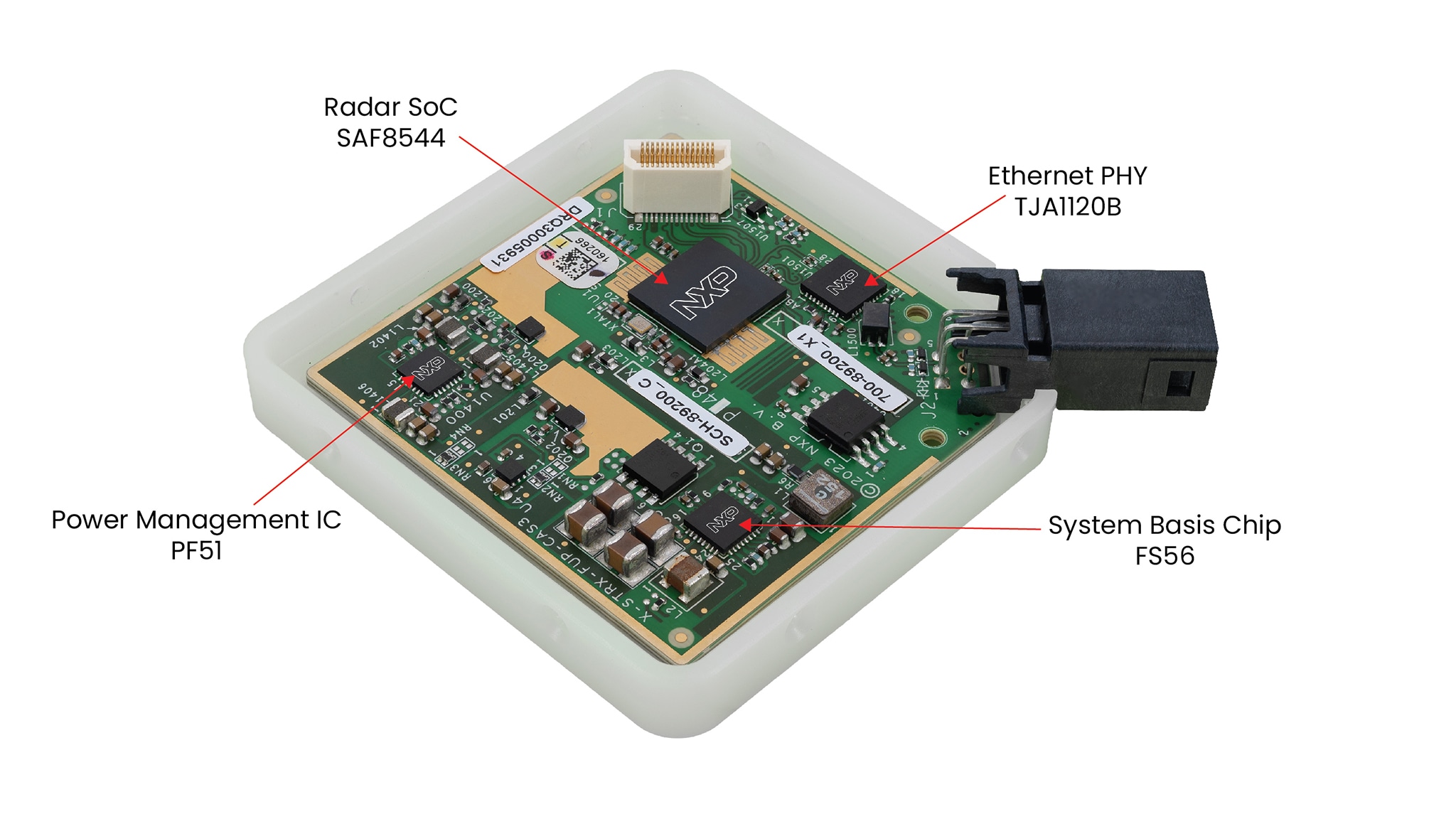

The Pluto radar reference design enables customers to evaluate corner and front radar applications. This reference design embeds SAF8544 radar one-chip SoC, the TJA1120B 1000Base-T1 Ethernet transceiver and the optimized system basis chip FS56 and PF51 power management IC in a small sensor form factor. Four transmitters and four receivers are paired with a patch antenna in a very small footprint. This reference design accelerates time-to-market and offers a validated system solution.
The SAF8544 Pluto sensor radar reference design is available for selected customers with an approved NDA. For additional information, contact support or your local sales representative.
Product Details
Supported Devices
RF
Radar Transceivers and SoCs
- SAF85XX: High Performance 77GHz RFCMOS Automotive Radar One-Chip SoC
Power Management
PMICs
- PF5103: Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level
System Basis Chips
- FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer
Interfaces
Automotive Ethernet PHYs
- TJA1120: TJA1120, ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver
Features
Compact Size
- PCB size: 50 x 50 mm

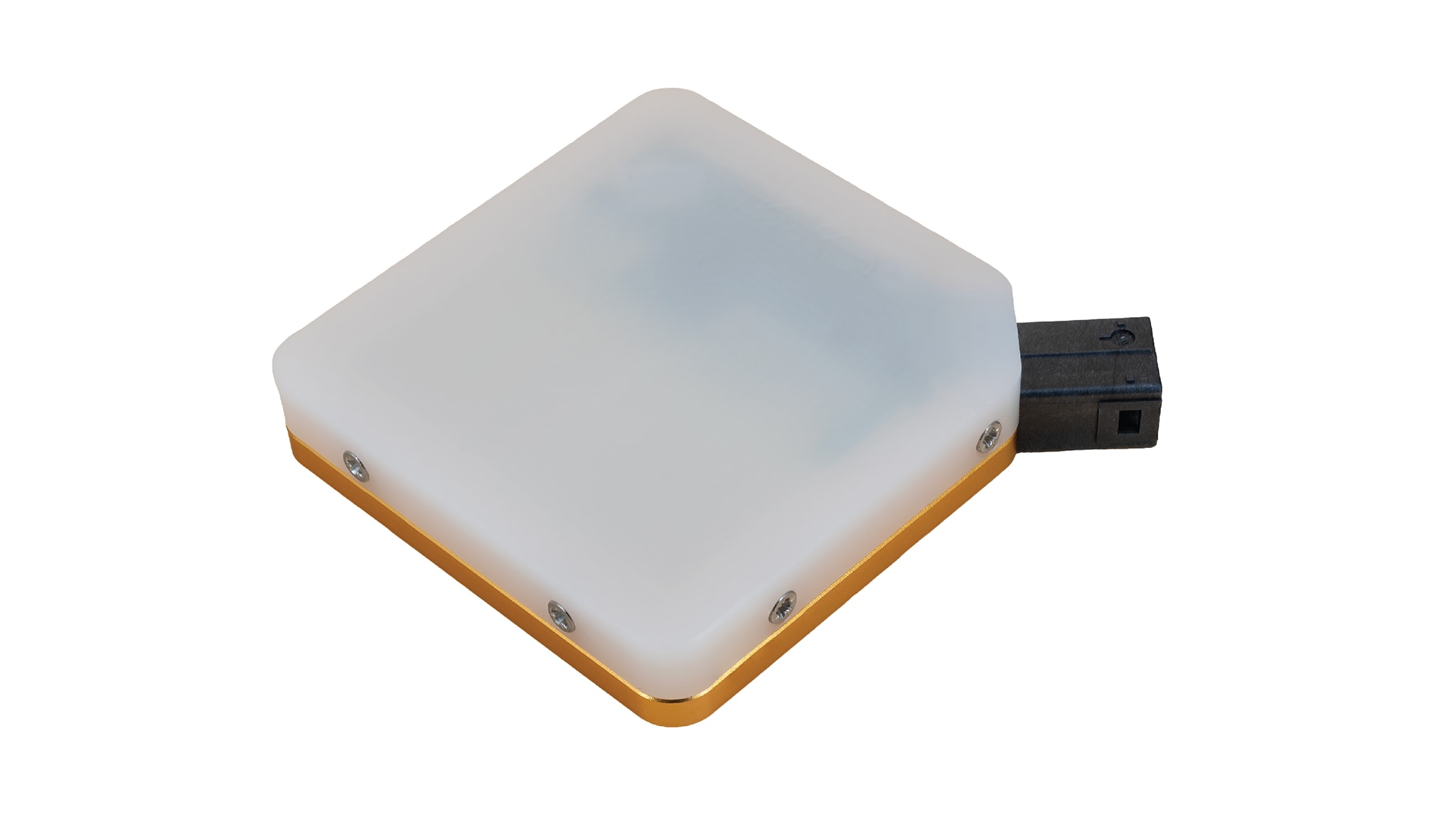

- Sensor size: 60 x 60 x 35 mm
Integrated Antenna

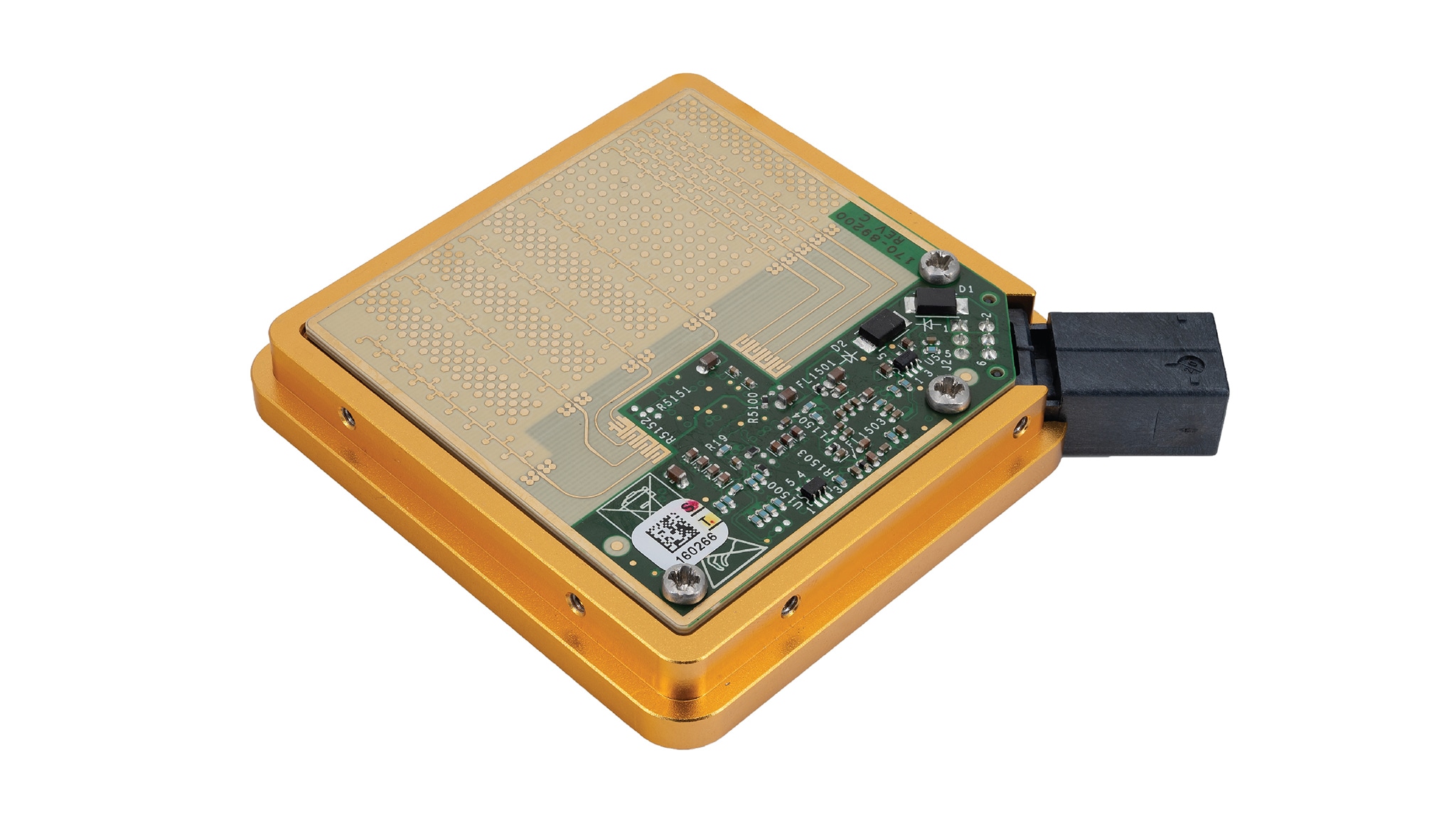

- 4 transmitters and 4 receivers
High Performance
- Range > 200m
Flexible Data Output
- Supports raw data capture as well as processed radar point cloud
Interfaces
- JTAG
- CSI
- QSPI
- I²C
- UART
- CAN
Power Dissipation
- 2.25 W @ Room Temperature
- 50% Duty Cycle
Weight
- Weight ≈100 g
