SAF85xxL Evaluation Kit with Antenna

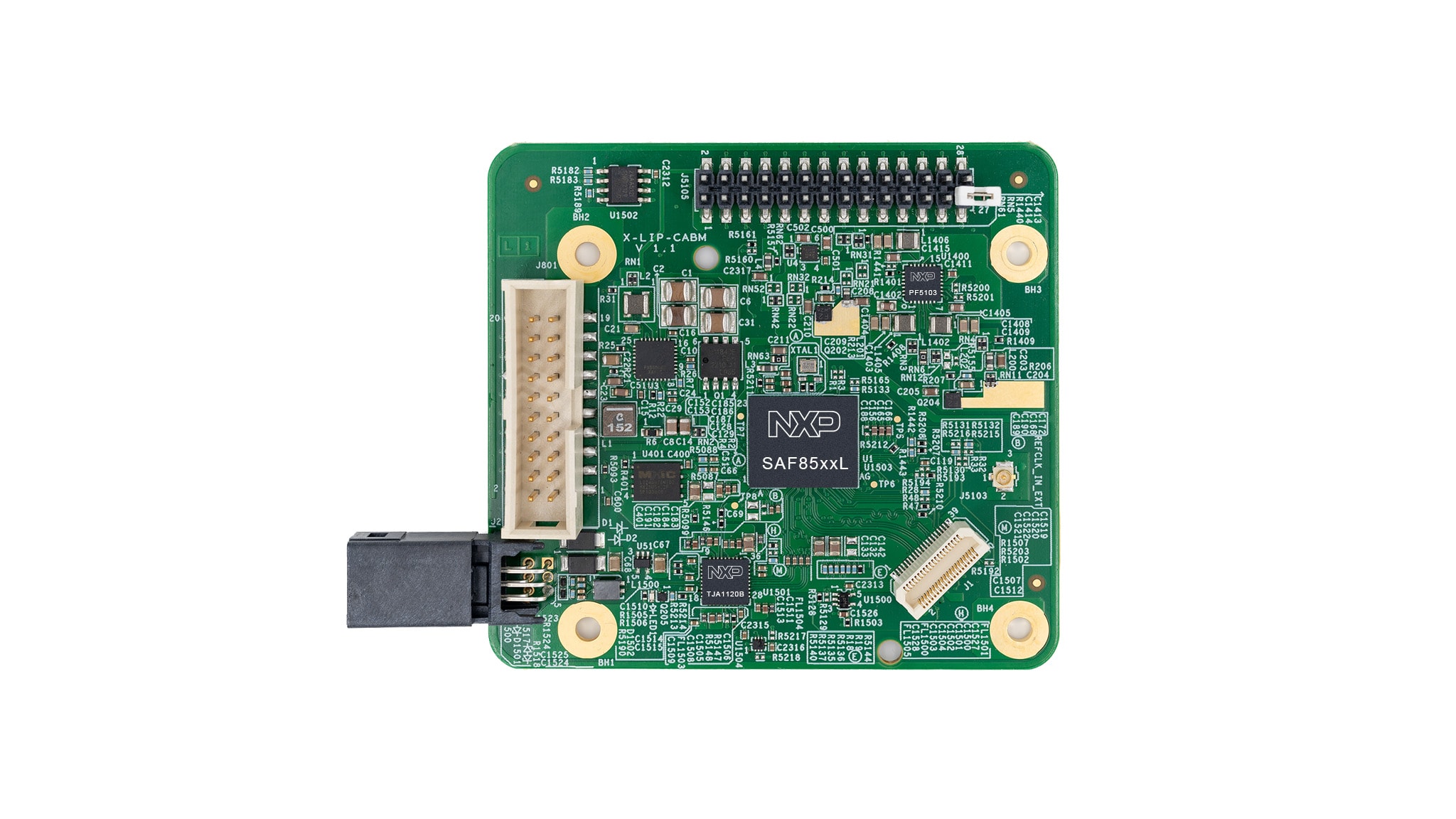

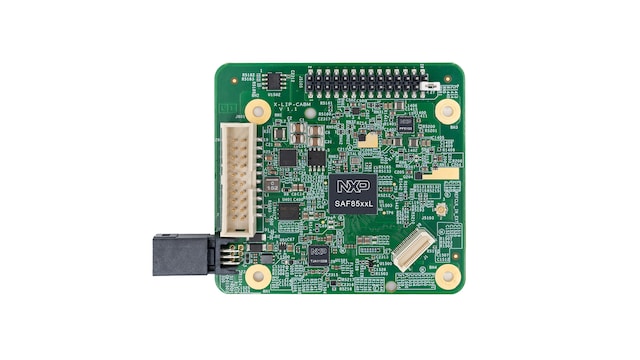

The SAF85xxL evaluation kit (EVK) LIP-CKITA supports the development of 77 GHz radar applications and the evaluation of SAF85xxL one-chip Launcher-in-Package (LIP) radar SoC for automotive applications. This kit allows evaluation of various radar use cases by flexibly configuring the radar chirps and observing the processed output on a PC. Radar software development and evaluation of a comprehensive set of communication and debug interfaces are enabled by the evaluation kit. The EVK consists of a front-end antenna board with an optional slotted waveguide antenna supporting four transmitters and four receivers. This evaluation kit can be used for comprehensive application development as well as RF evaluation.
The LIP-CKITA is available for selected customers with an approved NDA. For additional information, contact support or your local sales representative.
Product Details
Supported Devices
Interfaces
Automotive Ethernet PHYs
CAN Signal Improvement
- TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode
Power Management
PMICs
- PF5103: Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level
System Basis Chips
- FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer
RF
Radar Transceivers and SoCs
- SAF85XXL: One-Chip LiP 77GHz RFCMOS Automotive Radar SoC
Features
Function and Configuration
- Supports RF evaluation
- Supports evaluation of digital interfaces
- Supports radar software and use case development
- Provides access to debug interfaces
- Streams radar data to PC
- Allows configuration of radar profile from PC using Radar Xplorer
Supported Connection Types
- GPIO
- JTAG
- CAN
- CSI2
- UART
