MPC5643L StarterTRAK Development Board

TRK-USB-MPC5643L Active

Roll over image to zoom in

StarterTRAK is a low-cost development kit based on the NXP® MPC5643L that enables rapid prototyping and tool reuse.

NXP MPC564xL ICs are a family of powerful 32-bit MCUs for automotive chassis and safety applications and designs where enhanced motor control and functional safety capability are required.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

Features

Microcontroller

  • MPC5643L MCU in a 144 LQFP package

Connectivity

  • JTAG connection via open source OSBDM circuit using the MPC9S08JM MCU
  • MCZ3390S5EK system basis chip with advanced power management and integrated CAN transceiver
  • CAN and LIN interface
  • Analog interface with potentiometer
  • High-efficiency LEDs
  • SCI serial communication interface
  • Connector to BLDC–motorboard

Buy Options

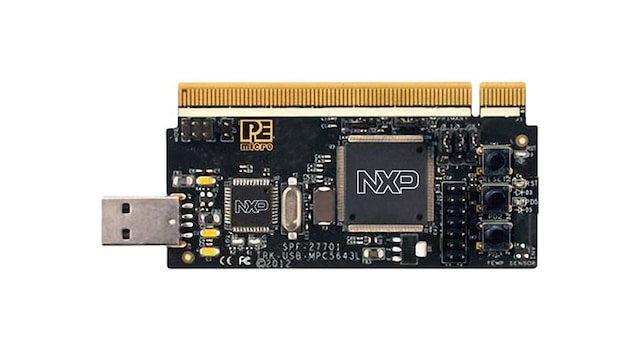

TRK-USB-MPC5643L-Image

Click to expand

  • TRK-USB-MPC5643L
    Active

  • StarterTRAK USB Dev Kit for Qorivva MPC5643L, Primary Tower connector, OSBDM debug through USB.

  • $55.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
