S12ZVH family of 16-bit MCUs Development Board

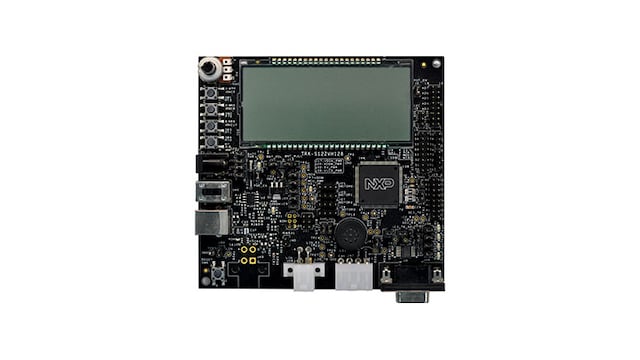

TRK-S12ZVH128 Preproduction

Roll over image to zoom in

The TRK-S12ZVH128 is a development board for the NXP MagniV® S12ZVH family of 16-bit MCUs targeted for automotive instrument cluster applications.

  • Designed to enable rapid prototyping and development for applications requiring CAN communications, Segment LCD and Analog Gauges
  • Features a custom LCD, four stepper motor headers and a low power speaker for alert tone generation
  • Operates as a standalone debug tool featuring the open-source debugging tool OSBDM compatible with the BDM protocol

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVH: S12ZVH MagniV Mixed-Signal MCU

Features

Microcontroller

  • S12ZVH128 MagniV MCU in a 144 LQFP package

Connectivity

  • LIN physical transceiver and connector
  • CAN connector interfaced with MCUs CAN physical transceiver
  • SCI serial communication interface
  • Unused pins available on GPIO headers

Debug

  • On-board BDM connection via open source OSBDM circuit using the MPC9S08JM MCU

Display

  • Custom 160 segment LCD

Audio

  • Low-power piezoelectric speaker

Components

  • 4 user LEDs
  • 4 user buttons
  • 1 potentiometer
N true 0 TSPTRK-S12ZVH128en 8 Application Note Application Note t789 3 Fact Sheet Fact Sheet t523 1 Reference Manual Reference Manual t877 2 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US 2 1 0 English The TRK-S12ZVH128 features the S12ZVH128 MCU, an automotive 16-bit MCU for instrument cluster applications. The S12ZVH128 MCU integrates an S12Z CPU, a CAN physical interface, a 5 V regulator system to supply the MCU, four low-power stepper motor drivers and an LCD controller on-chip. 1380563205707725945133 TSP 632.4 KB None None documents Y None 1380563205707725945133 /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF 632408 /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF TRK-S12ZVH128_QSG N N 2016-10-31 TRK-S12ZVH128 - Quick Start Guide /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF User Guide N Y 132339537837198660 2022-12-07 PDF N en Sep 30, 2013 User Guide t792 User Guide User Guide Y N TRK-S12ZVH128 - Quick Start Guide 2 1.0 English TRK-S12ZVH128 Bill Of Materials 1392223272625693093009 TSP 19.5 KB None None documents None 1392223272625693093009 /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx 19539 /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx TRK-S12ZVH128_BOM N N 2014-04-02 TRK-S12ZVH128 Bill Of Materials /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx Supporting Information N Y 371282830530968666 2022-12-07 xlsx N en Feb 12, 2014 Supporting Information t531 Supporting Information Supporting Information Y N TRK-S12ZVH128 Bill Of Materials false en_US 0 false en Reference Manual Reference Manual 2 3 1.05 Chinese 1379521703381720981375zh TSP 8.6 MB Registration without Disclaimer None documents Extended 1379521703381720981375 /secured/assets/documents/zh/data-sheet/MC9S12ZVHRMV1.pdf 8629847 /secured/assets/documents/zh/data-sheet/MC9S12ZVHRMV1.pdf MC9S12ZVHRMV1 documents Y N 2016-10-31 MC9S12ZVH Family Reference Manual /secured/assets/documents/zh/data-sheet/MC9S12ZVHRMV1.pdf https://www.nxp.com.cn/webapp/Download?colCode=MC9S12ZVHRMV1&docLang=zh Reference Manual N 500633505221135046 2023-06-18 zh Jun 15, 2015 500633505221135046 Reference Manual Y N MC9S12ZVH系列参考手册 1.05 English MC9S12ZVHRMV1: The MC9S12ZVH family is an optimized automotive 16-bit microcontroller product line focused on low cost, high-performance and application component count reduction. This family integrates the components of an S12HY or S12XHY-family microcontroller with a CAN physical interface and 5V regulator system to supply the MCU and other components. 1379521703381720981375 TSP 8.6 MB Registration without Disclaimer None documents Extended 1379521703381720981375 /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf 8629847 /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf MC9S12ZVHRMV1 documents Y N 2016-10-31 MC9S12ZVH Family Reference Manual /webapp/Download?colCode=MC9S12ZVHRMV1 /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Jun 15, 2015 500633505221135046 Reference Manual Y N MC9S12ZVH Family Reference Manual 4 1.01 English S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. 1360836753606710339755 TSP 3.0 MB Registration without Disclaimer None documents Extended 1360836753606710339755 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2981526 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf S12ZCPURM documents Y N 2016-10-31 CPU S12Z Reference Manual - Reference Manual /webapp/Download?colCode=S12ZCPURM /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf Reference Manual N 500633505221135046 2024-07-15 pdf Y en Jan 13, 2013 500633505221135046 Reference Manual Y N CPU S12Z Reference Manual - Reference Manual Application Note Application Note 3 5 0 Chinese 1375436213120709009305zh TSP 329.6 KB Registration without Disclaimer None documents Extended 1375436213120709009305 /secured/assets/documents/zh/application-note/AN4721.pdf 329642 /secured/assets/documents/zh/application-note/AN4721.pdf AN4721 documents Y N 2016-10-31 AN4721, S12ZVH: Hardware Design Guidelines - Application Notes /secured/assets/documents/zh/application-note/AN4721.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4721&docLang=zh Application Note N 645036621402383989 2023-06-18 zh Aug 1, 2013 645036621402383989 Application Note Y N AN4721，S12ZVH：硬件设计指南 - 应用说明 0 English AN4721: This application note describes external hardware required by different modules of S12ZVH family of MCUs. The S12ZVH family was designed to be used in basic/low automotive instrumentation clusters that include analog stepper motors, an LCD, and/or CAN communications. 1375436213120709009305 TSP 329.6 KB Registration without Disclaimer None documents Extended 1375436213120709009305 /secured/assets/documents/en/application-note/AN4721.pdf 329642 /secured/assets/documents/en/application-note/AN4721.pdf AN4721 documents Y N 2016-10-31 AN4721, S12ZVH: Hardware Design Guidelines - Application Notes /webapp/Download?colCode=AN4721 /secured/assets/documents/en/application-note/AN4721.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Aug 1, 2013 645036621402383989 Application Note Y N AN4721, S12ZVH: Hardware Design Guidelines - Application Notes 6 0 Chinese 1373051786699718197928zh TSP 253.6 KB None None documents None 1373051786699718197928 /docs/zh/application-note/AN4722.pdf 253585 /docs/zh/application-note/AN4722.pdf AN4722 documents N N 2016-10-31 AN4722, Real Time Counter (RTC) on the S12ZVH Family - Application Notes /docs/zh/application-note/AN4722.pdf /docs/zh/application-note/AN4722.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N AN4722，S12ZVH系列上的实时计数器(RTC) - 应用说明 0 English AN4722: This application note introduces embedded Real Time Counter (RTC) module that comes with the S12ZVH family of microcontrollers. This family of MCUs is aimed toward the automotive instrument cluster segment and is part of the MagniV<sup>&#174;</sup> set of products. The idea behind the MagniV portfolio is to create products that have high integration on-chip and the RTC is one of the modules that is integrated with the MCU. 1373051786699718197928 TSP 253.6 KB None None documents None 1373051786699718197928 /docs/en/application-note/AN4722.pdf 253585 /docs/en/application-note/AN4722.pdf AN4722 documents N N 2016-10-31 AN4722, Real Time Counter (RTC) on the S12ZVH Family - Application Notes /docs/en/application-note/AN4722.pdf /docs/en/application-note/AN4722.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 5, 2013 645036621402383989 Application Note Y N AN4722, Real Time Counter (RTC) on the S12ZVH Family - Application Notes 7 0 Chinese 1372857997482752017970zh TSP 463.1 KB None None documents None 1372857997482752017970 /docs/zh/application-note/AN4723.pdf 463109 /docs/zh/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/zh/application-note/AN4723.pdf /docs/zh/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 zh 645036621402383989 Application Note N AN4723，S12Z MagniV引导加载程序 - 应用说明 0 English Describing the boot operation of S12Z core and how to implement and use a bootloader application that can serially reprogram a device. Focusing on explaining how this core manages boot process, memory layout and manipulation schemes, and interrupt management. The bootloader application can be matched with any serial communication protocol driver to provide flexibility to the implementation. 1372857997482752017970 TSP 463.1 KB None None documents None 1372857997482752017970 /docs/en/application-note/AN4723.pdf 463109 /docs/en/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/en/application-note/AN4723.pdf /docs/en/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Jul 2, 2013 645036621402383989 Application Note Y N AN4723: S12Z MagniV Bootloader – Application Note Fact Sheet Fact Sheet 1 8 1 Chinese 1331613385773709388274zh TSP 249.6 KB None None documents None 1331613385773709388274 /docs/zh/fact-sheet/S12ZVHFS.pdf 249563 /docs/zh/fact-sheet/S12ZVHFS.pdf S12ZVHFS documents N N 2012-03-19 S12 MagniV<sup>&#174;</sup> S12ZVH - Fact Sheet /docs/zh/fact-sheet/S12ZVHFS.pdf /docs/zh/fact-sheet/S12ZVHFS.pdf Fact Sheet N 736675474163315314 2022-12-07 zh 736675474163315314 Fact Sheet N S12 MagniV S12ZVH产品简介 1 English The S12ZVH family is part of the S12 MagniV portfolio of mixed-signal MCUs, built upon LL18UHV technology, combining highly reliable 180 nm non-volatile memory technology with high-voltage analog components on a single piece of silicon. The industry&#8217;s first single-chip automotive instrument cluster solution integrates an automotive voltage regulator operating between 5 and 18 volts, a CAN/LIN physical layer, an LCD display controller and instrument cluster gauge drivers. These high-voltage analog comp 1331613385773709388274 TSP 249.6 KB None None documents None 1331613385773709388274 /docs/en/fact-sheet/S12ZVHFS.pdf 249563 /docs/en/fact-sheet/S12ZVHFS.pdf S12ZVHFS documents N N 2012-03-19 S12 MagniV<sup>&#174;</sup> S12ZVH - Fact Sheet /docs/en/fact-sheet/S12ZVHFS.pdf /docs/en/fact-sheet/S12ZVHFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Apr 28, 2015 736675474163315314 Fact Sheet Y N S12 MagniV<sup>&#174;</sup> S12ZVH - Fact Sheet false 0 TRK-S12ZVH128 downloads en true 0 Y TSP Application Note 3 /secured/assets/documents/en/application-note/AN4721.pdf 2016-10-31 1375436213120709009305 TSP 5 Aug 1, 2013 Application Note AN4721: This application note describes external hardware required by different modules of S12ZVH family of MCUs. The S12ZVH family was designed to be used in basic/low automotive instrumentation clusters that include analog stepper motors, an LCD, and/or CAN communications. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4721.pdf English documents 329642 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN4721 AN4721, S12ZVH: Hardware Design Guidelines - Application Notes /secured/assets/documents/en/application-note/AN4721.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4721, S12ZVH: Hardware Design Guidelines - Application Notes 329.6 KB AN4721 N 1375436213120709009305 /docs/en/application-note/AN4722.pdf 2016-10-31 1373051786699718197928 TSP 6 Jul 5, 2013 Application Note AN4722: This application note introduces embedded Real Time Counter (RTC) module that comes with the S12ZVH family of microcontrollers. This family of MCUs is aimed toward the automotive instrument cluster segment and is part of the MagniV<sup>&#174;</sup> set of products. The idea behind the MagniV portfolio is to create products that have high integration on-chip and the RTC is one of the modules that is integrated with the MCU. None /docs/en/application-note/AN4722.pdf English documents 253585 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4722.pdf AN4722, Real Time Counter (RTC) on the S12ZVH Family - Application Notes /docs/en/application-note/AN4722.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4722, Real Time Counter (RTC) on the S12ZVH Family - Application Notes 253.6 KB AN4722 N 1373051786699718197928 /docs/en/application-note/AN4723.pdf 2016-10-31 1372857997482752017970 TSP 7 Jul 2, 2013 Application Note Describing the boot operation of S12Z core and how to implement and use a bootloader application that can serially reprogram a device. Focusing on explaining how this core manages boot process, memory layout and manipulation schemes, and interrupt management. The bootloader application can be matched with any serial communication protocol driver to provide flexibility to the implementation. None /docs/en/application-note/AN4723.pdf English documents 463109 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4723.pdf AN4723: S12Z MagniV Bootloader – Application Note /docs/en/application-note/AN4723.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4723: S12Z MagniV Bootloader – Application Note 463.1 KB AN4723 N 1372857997482752017970 Fact Sheet 1 /docs/en/fact-sheet/S12ZVHFS.pdf 2012-03-19 1331613385773709388274 TSP 8 Apr 28, 2015 Fact Sheet The S12ZVH family is part of the S12 MagniV portfolio of mixed-signal MCUs, built upon LL18UHV technology, combining highly reliable 180 nm non-volatile memory technology with high-voltage analog components on a single piece of silicon. The industry&#8217;s first single-chip automotive instrument cluster solution integrates an automotive voltage regulator operating between 5 and 18 volts, a CAN/LIN physical layer, an LCD display controller and instrument cluster gauge drivers. These high-voltage analog comp None /docs/en/fact-sheet/S12ZVHFS.pdf English documents 249563 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/S12ZVHFS.pdf S12 MagniV<sup>&#174;</sup> S12ZVH - Fact Sheet /docs/en/fact-sheet/S12ZVHFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N S12 MagniV<sup>&#174;</sup> S12ZVH - Fact Sheet 249.6 KB S12ZVHFS N 1331613385773709388274 Reference Manual 2 /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf 2016-10-31 1379521703381720981375 TSP 3 Jun 15, 2015 Reference Manual MC9S12ZVHRMV1: The MC9S12ZVH family is an optimized automotive 16-bit microcontroller product line focused on low cost, high-performance and application component count reduction. This family integrates the components of an S12HY or S12XHY-family microcontroller with a CAN physical interface and 5V regulator system to supply the MCU and other components. Registration without Disclaimer /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf English documents 8629847 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MC9S12ZVHRMV1 MC9S12ZVH Family Reference Manual /secured/assets/documents/en/data-sheet/MC9S12ZVHRMV1.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1.05 Y N MC9S12ZVH Family Reference Manual 8.6 MB MC9S12ZVHRMV1 N 1379521703381720981375 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2016-10-31 1360836753606710339755 TSP 4 Jan 13, 2013 Reference Manual S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf English documents 2981526 None 500633505221135046 2024-07-15 Y /webapp/Download?colCode=S12ZCPURM CPU S12Z Reference Manual - Reference Manual /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1.01 Y N CPU S12Z Reference Manual - Reference Manual 3.0 MB S12ZCPURM N 1360836753606710339755 Supporting Information 1 /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx 2014-04-02 1392223272625693093009 TSP 2 Feb 12, 2014 Supporting Information Supporting Information TRK-S12ZVH128 Bill Of Materials None /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx English 19539 None Supporting Information 2022-12-07 N /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx TRK-S12ZVH128 Bill Of Materials /docs/en/supporting-information/TRK-S12ZVH128_BOM.xlsx documents 371282830530968666 Supporting Information N Y en None Y t531 xlsx 1.0 N N TRK-S12ZVH128 Bill Of Materials 19.5 KB TRK-S12ZVH128_BOM N 1392223272625693093009 User Guide 1 /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF 2016-10-31 1380563205707725945133 TSP 1 Sep 30, 2013 User Guide User Guide The TRK-S12ZVH128 features the S12ZVH128 MCU, an automotive 16-bit MCU for instrument cluster applications. The S12ZVH128 MCU integrates an S12Z CPU, a CAN physical interface, a 5 V regulator system to supply the MCU, four low-power stepper motor drivers and an LCD controller on-chip. Y None /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF English 632408 None User Guide 2022-12-07 N /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF TRK-S12ZVH128 - Quick Start Guide /docs/en/user-guide/TRK-S12ZVH128_QSG.PDF documents 132339537837198660 User Guide N Y en None Y t792 PDF 0 N N TRK-S12ZVH128 - Quick Start Guide 632.4 KB TRK-S12ZVH128_QSG N 1380563205707725945133 true Y Tools
