MPC5xxx StarterTRAK USB Kit

TRK-USB-MPC5602P Active

Roll over image to zoom in

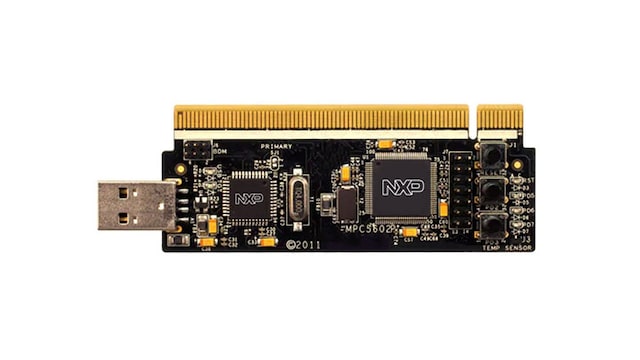

The NXP® StarterTRAK USB kit (TRK-USB-MPC5602P) is designed for you to easily and inexpensively give the NXP 32-bit MPC5xxx MCUs a test drive. It features a PCI card-edge for compatibility with the NXP Tower® System so you can create a custom development system based on your design needs. For a full-featured MPC560xP kit, see TRK-MPC5604P.

The NXP MPC560xP 32-bit MCUs are scalable Power Architecture® devices supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your design.

Before plugging in the USB board, the latest OSJTAG drivers must be downloaded and installed from PEMicro OSBDM.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xP: Ultra-Reliable MPC560xP MCU for Automotive and Industrial Safety Applications

Features

Microcontroller

  • MPC5602P Microcontroller in a 100LQFP package

Debug

  • OSBDM debugger through USB

Sensors

  • Temperature sensor
  • Three user-programmable multicolored LEDs
  • Two user-programmable push buttons
  • Primary Tower® System connector

Buy Options

TRK-USB-MPC5602P-Image

Click to expand

  • TRK-USB-MPC5602P
    Active

  • StarterTRAK USB Dev Kit for Qorivva MPC5602P, Primary Tower connector, OSBDM debug through USB.

  • $55.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
