S12ZVL StarterTRAK Development Board

TRK-S12ZVL Active

Roll over image to zoom in

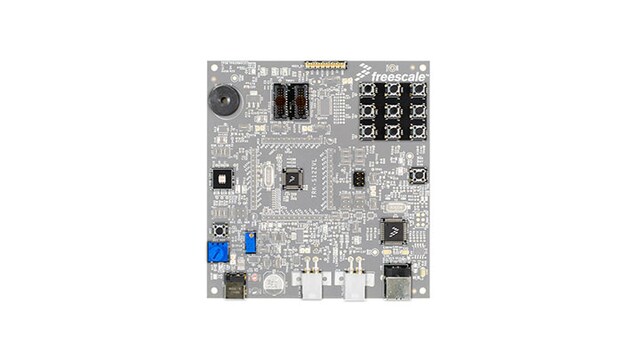

The TRK-S12ZVL features the S12ZVL, an automotive 16-bit MCU family. This integrates on the same die a S12Z CPU, a LINPHY interface, a 5 volts internal LDO (with an option to control an external ballast transistor) which operates at vehicle battery level and a high voltage input pin.

The S12ZVL family includes error correction code (ECC) on program flash, EEPROM as well as SRAM memory, a fast 10 bits ATD converter and a frequency modulated phase locked loop (PLL) that improves the EMC performance.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVL: S12ZVL Mixed-Signal MCU for Automotive and Industrial LIN Applications

Features

Microcontroller

  • MC9S12ZVL32 in 48 pins LQFP
  • S912ZVLS32F0LF
  • MPC9S08JM

Connectivity

  • USB to Serial Interface
  • BDM Connector
  • SPI / IIC Header connector
  • LIN physical layer IN/OUT connectors
  • Power LEDs indicators
  • RGB LED
  • Buzzer to 2048Hz
  • ADC Potentiometer
  • Matix panel Switch
  • TWRPI Interface

Buy Options

TRK-S12ZVL-Image

Click to expand

  • TRK-S12ZVL
    Active

  • TWR-S12ZVL32 board for RGB LED Lighting.

    • TRK-S12ZVL with MC9S12ZVL32 in 48 pins LQFP, S912ZVLS32F0LF
    • TRK-S12ZVL DVD-ROM (Includes CodeWarrior software)
    • Quick start guide
    • LIN cable assembly 2X2
    • Cable, USB type A male/type B male 2.0 3FT
    • Power AC/DC adapter, 12VDC, 5.5x2.1 (mm)
  • $245.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
