S12G StarterTRAK USB Development System

TRK-USB-S12G128 Active

Roll over image to zoom in

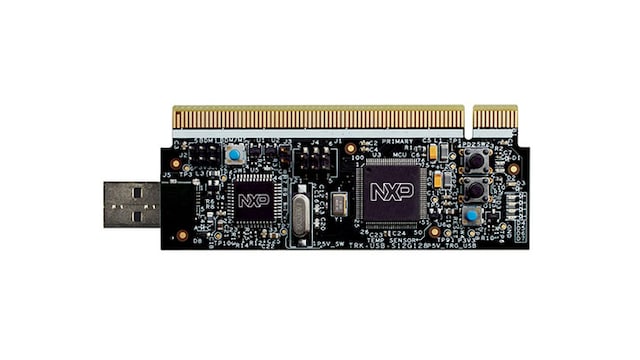

The NXP StarterTRAK USB kit (TRK-USB-S12G128) is designed to easily and inexpensively give Our 16-bit S12G MCUs a test drive.

Designed to enable rapid prototyping and MCU evaluation, it can operate as a standalone debug tool as well as combined and used as part of the modular Tower® System development platform.

The S12G MCU is an optimized, automotive, 16-bit product line focused on low-cost, high-performance and low pin-count. The S12G is suited for automotive body applications requiring CAN or LIN/SAE J2602 communication.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

    S12G128 MCU

  • 16-bit
  • 100 LQFP package

Connectivity

  • Primary tower system connector

Debug

  • OSBDM debugger through USB

Sensors

  • Temperature sensor

User components

  • Three user-programmable multicolored LEDs
  • Two user-programmable push buttons

Buy Options

TRK-USB-S12G128-Image

Click to expand

  • For a quantity of 1
Order from distributors
