MPC5604B StarterTRAK USB Development System

TRK-USB-MPC5604B Active

Roll over image to zoom in

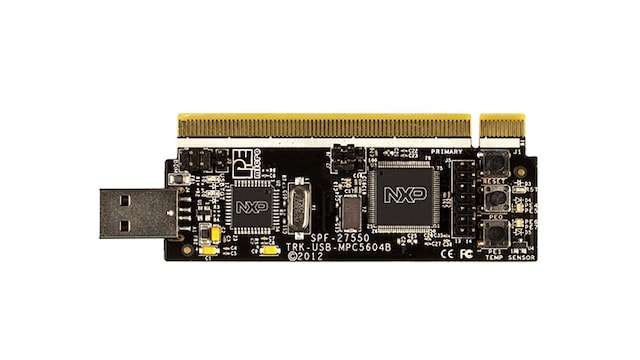

Our StarterTRAK USB kit (TRK-USB-MPC5604B) is designed to easily and inexpensively test drive the NXP® 32-bit MPC5xxx MCUs. Along with the MPC5604B MCU, it features a PCI card-edge for compatibility with the NXP Tower® System so you can create a custom development system based on your design needs.

For a full-featured NXP MPC560xB development kit, please refer to the TRK-MPC5606B StarterTRAK Development Kit.

The NXP MPC560xB family of 32-bit MCUs includes the latest in integrated devices for auto body electronics applications. These scalable Power Architecture® devices are supported by an enablement ecosystem that helps you quickly implement your designs.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose

Features

Microcontroller

  • MPC5604B MCU in a 100 LQFP package

Connectivity

  • Primary Tower® System connector

Debug

  • OSBDM debugger through USB

Sensors

  • Temperature sensor

User components

  • Two bicolor LEDs
  • Two push buttons

Support

Buy Options

TRK-USB-MPC5604B-Image

Click to expand

  • TRK-USB-MPC5604B
    Active

  • StarterTRAK USB Dev Kit for Qorivva MPC5604B, Primary Tower connector, OSBDM debug through USB.

  • $49.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
