MPC5606B StarterTRAK Development Kit

TRK-MPC5606B Active

Roll over image to zoom in

The TRK-MPC5606B development kit for the NXP® MPC560xB/C family of 32-bit MCUs includes the latest in integrated devices for automotive body electronics applications. These scalable Power Architecture® devices are supported by an enablement ecosystem that includes software drivers, operating systems, and configuration code to help you quickly implement your designs.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Features

Microcontroller

  • MPC5606B MCU in a 144 LQFP package
  • MCZ3390S5EK system basis chip with advanced power management and integrated CAN transceiver

Connectivity

  • On-board JTAG connection via open source OSBDM circuit using the MPC9S08JM MCU
  • CAN and LIN interface
  • SCI serial communication interface

Components

  • Analog interface with potentiometer
  • High-efficiency LEDs

Buy Options

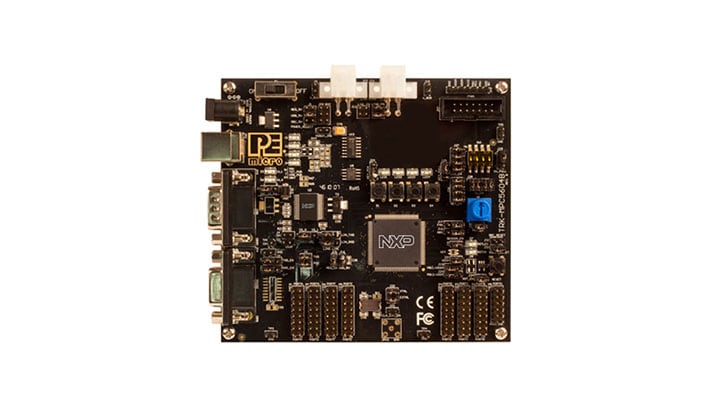

TRK-MPC5606B-Image

Click to expand

  • TRK-MPC5606B
    Active

  • StarterTRAK Development Kit for Qorivva MPC5606B, SCI, CAN and LIN interface, GPIO conncectors.

    • TRK-MPC5606B Board
    • TRK-MPC5606B DVD-ROM (includes Fast Start Kit software)
    • USB A–to–B Cable
    • NXP Warranty Card
  • $149.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
