S12ZVHY family Development Board

TRK-S12ZVHY64 Preproduction

Roll over image to zoom in

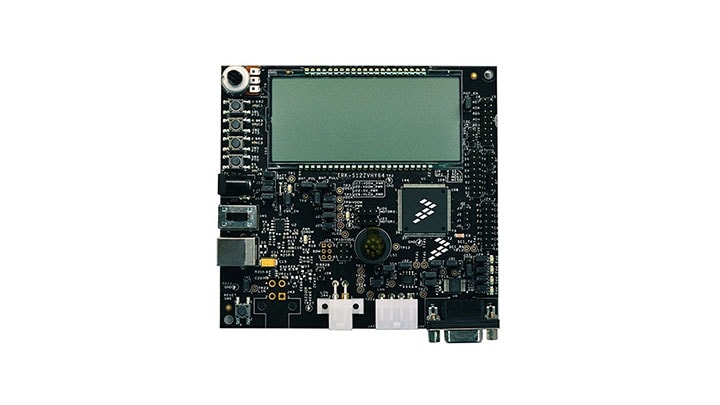

The TRK-S12ZVHY64 is a development board for the S12 MagniV® S12ZVHY family of 16-bit MCUs, which are targeted for motorcycle and small vehicle instrument cluster applications. It is designed to enable rapid prototyping and development for applications requiring a segment LCD and Analog Gauges. It takes full advantage of the MagniV high voltage technology alowing it to operate with up to 18V of power supply. The board features a custom LCD, two stepper motor headers and a low power speaker for alert tone generation.

The TRK-S12ZVHY64 operates as a standalone debug tool featuring the open-source debugging tool OSBDM compatible with the BDM protocol.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVH: S12ZVH MagniV Mixed-Signal MCU

Features

Microcontroller

  • S12ZVFP64 S12 MagniV® MCU in a 144 LQFP package

Connectivity

  • LIN connector interfaced with on-chip LINPHY transceiver
  • CAN physical transceiver and connector (unpopulated)
  • SCI serial communication interface (unpopulated, available through OSDM)
  • Unused pins available on GPIO headers

Debug

  • On-board BDM connection via open source OSBDM circuit using the MPC9S08JM MCU

Audio

  • Low-power piezoelectric speaker

Display

  • Custom 160 segment LCD

Components

  • CAN physical transceiver and connector (unpopulated)
  • 4 user LEDs, 4 user buttons, and 1 potentiometer
