Evaluation Board - MC33907, Safe DC/DC up to 800 mA

KIT33907AEEVB Active

Roll over image to zoom in

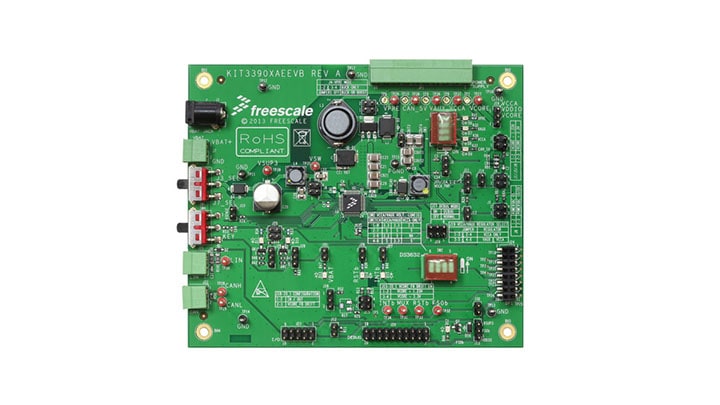

The KIT33907AEEVBE evaluation board demonstrates the functionality of the NXP® MC33907 power system basis chips.

  • These ICs are equipped with an Intelligent Power Management System including safety features targeting the latest ISO 26262 automotive functional safety standard
  • The evaluation board is a standalone board that can be used either with a compatible microcontroller or with a PC; in the latter case, it is necessary to use an SPI/USB accessory interface board

Supported Devices

Power Management

System Basis Chips

  • MC33907: Safe System Basis Chip DC/DC up to 800 mA

Features

General Specifications

  • LIN bus
  • CAN-bus

Connectivity

  • IO connector (IO_0 to IO_5)

Power Management

  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VCORE configuration, 1.23 V, or 3.3 V
  • VCCA configuration, 5.0 V/3.3 V
  • VAUX configuration, 3.3 V, or 5.0 V
  • Enabled or disabled at startup
  • Ignition key switch

Debug

  • Debug connector (SPI bus, CAN digital, LIN digital, RSTb, FSOb, INTb, Debug, MUX_OUT)

Components

  • Signaling LED to give state of signals or regulators
  • Internal transistor or external PNP

Buy Options

KIT33907AEEVB-Image

Click to expand

  • KIT33907AEEVB
    Active

  • Evaluation Kit - MC33907, PowerSBC with High Speed CAN&LIN transceivers.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $161.47 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
