Zipwire Cable Assembly

SIPI-ERM8-ZIPCBL Active

Roll over image to zoom in

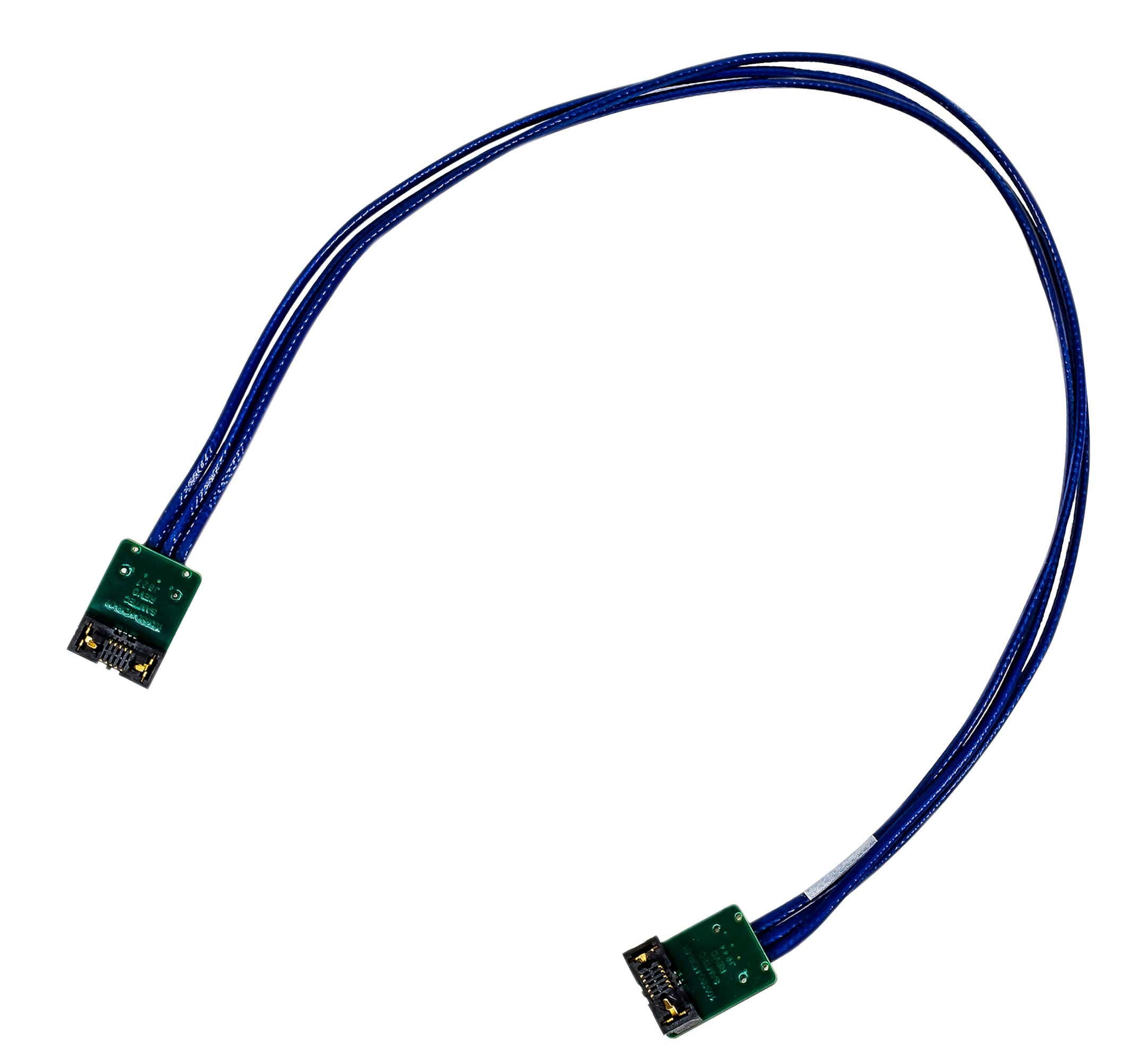

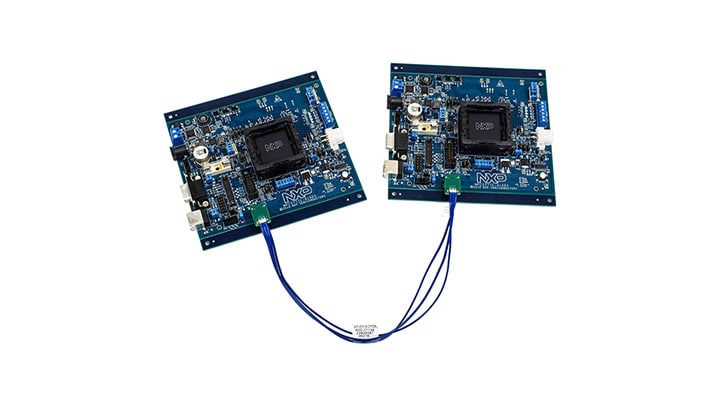

Zipwire is a new bus for communicating between two devices over a high speed (240 MHz) serial interface. It is implemented using a Serial Inter-Processor Interface (SIPI) over an LVDS Fast synchronous Serial Transmission Interface (LFAST). The SIPI module controls the higher level protocol of the interface, and the LFAST controls the physical interface. SIPI-ERM8-ZIPCBL is a Zipwire cable assembly that allows for communication between two boards (not included) via Zipwire.

CAUTION

Zipwire is intended to be used between two devices on the same printed circuit board. This connector and cable is only intended for evaluation of products and not for actual customer implementations

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5746R: Automotive and Industrial Engine Management MCU
  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications
  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
  • MPC5777M: Ultra-Reliable MPC5777M MCU for Automotive and Industrial Engine Management
  • MPC577xK: Ultra-Reliable MPC577xK MCU for ADAS and Radar

Features

    The Zipwire interface consists of five signals:

  • A pair of LVDS transmits pins
  • A pair of receive LVDS pins
  • A clock. The clock is unidirectional and is defined to be an output on the Follower and an input on the Controller node
  • Additional information about the Zipwire Interface is available in the application note AN5134 “Introduction to Zipwire” which can be found at www.nxp.com

Buy Options

SIPI-ERM8-ZIPCBL-Image

Click to expand

  • SIPI-ERM8-ZIPCBL
    Active

  • SIPI ZIP WIRE CABLE, 2X5 PIN SIPI CONN, 0.8MM PITCH 12 IN LENGTH.

  • $125.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
