MPC574xB/C/G and SJA1105P/Q/R/S Gateway Evaluation Kit

SJA1105SMBEVM Active

Roll over image to zoom in

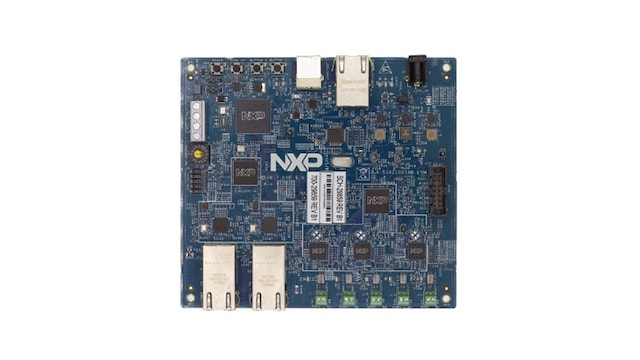

The SJA1105SMBEVM enables early SW development for SJA1105P/Q/R/S Automotive Ethernet switch family and the TJA1102 Automotive Ethernet PHYs on a market-leading Automotive MPC5748xG MCU.

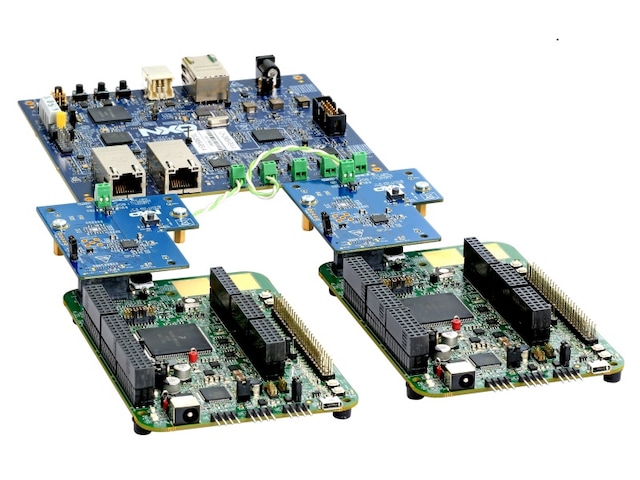

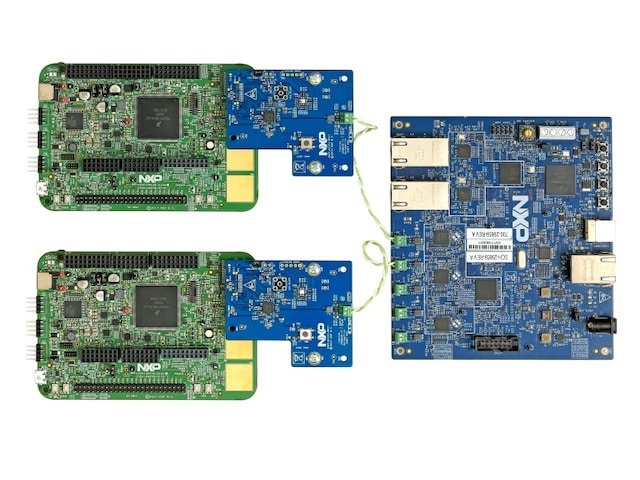

The board hosts two switches enabling the evaluation of the part in a cascaded mode. The TJA1102 PHYs enable the evaluation of the OPEN-Alliance TC10 "Wake Up" function.

Finally, the PCB includes two 1000Base-T Ethernet PHYs for easy connection to a PC and or monitoring equipment and a CAN-FD transceiver.

Product Details

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1145: High-Speed CAN Transceiver for Partial Networking

Automotive Ethernet Switches and Network Controllers

  • SJA1105PQRS: SJA1105PEL/QEL/REL/SEL Series Ethernet Switches

Automotive Ethernet PHYs

  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Features

Key Features

  • Evaluate SJA1105P/Q/R/S Switch in cascaded mode
  • Evaluate TJA1102 Open Alliance Wake Up function
  • Enables Ethernet SW development on MPC57xG MCU
  • Enable Ethernet-to-CAN evaluation

Buy Options

SJA1105SMBEVM-Image

Click to expand

  • SJA1105SMBEVM
    Active

  • MPC574xB/C/G and SJA1105P/Q/R/S Gateway Evaluation Kit.

  • $1179.52 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
