TJA1101 Automotive Ethernet Adapter for S32K148EVB and i.MX8

ADTJA1101-RMII
Active

Roll over image to zoom in

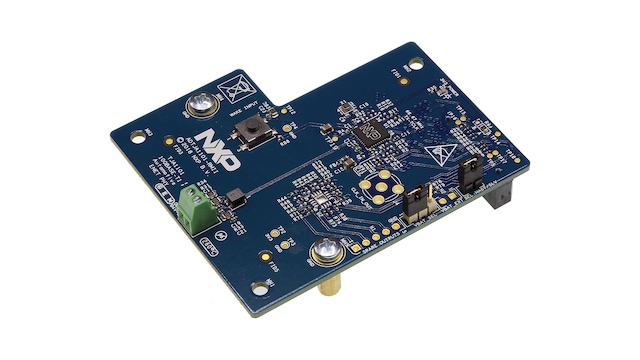

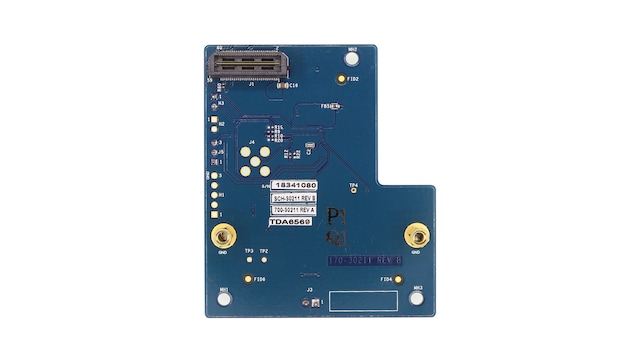

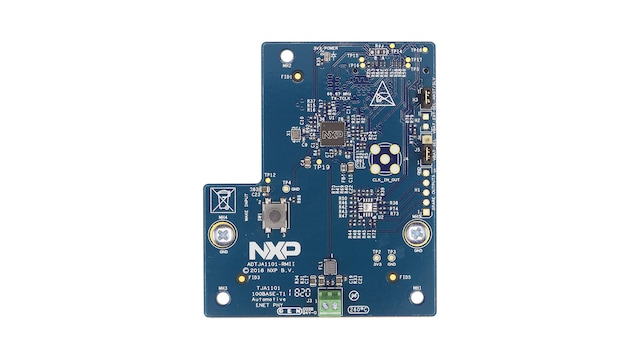

The ADTJA1101-RMII adapter card is a purpose-built hardware development tool which allows to quickly add 100Mbps Automotive Ethernet connectivity to the S32K148 Microcontroller.

By plugging in the common expansion connector, the ADTJA1101-RMII, the RMII interfaces of S32K148 gets directly connected to NXP’s 100BASE-T1 Ethernet PHY TJA1101.

The simple screw connector on ADTJA1101-RMII allows to quickly link the (included) cable to the transceiver’s Medium Dependent Interface (MDI) and build a system from scratch. Drivers are fully pre-integrated in the Software Development Kit of S32K148 for plug-and-play connectivity out of the box.

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Microcontroller

  • Adapter for S32K148 and i.MX8

Connectivity

  • Unshielded Twisted-pair cable provided in the box
  • Screw connector for simple cable assembly
  • Config pin strapping by jumper settings
  • 40-pin standard header (2.54 mm pitch) to Host Controller MII

General Specifications

  • Simple automotive ethernet system setup for prototype applications
  • Quick functional evaluation of TJA1101
    • 100BASE-T1 connectivity at ECU prototyping stage
    • Simple chip configuration
    • Chip status report via onboard LEDs

Buy Options

ADTJA1101-RMII-Image

Click to expand

  • ADTJA1101-RMII
    Active

  • TJA1101 Automotive Ethernet Adapter for S32K148EVB and i.MX8.

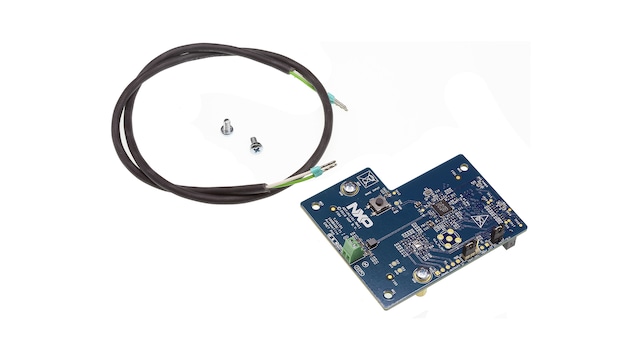

  • Kit Contains:

    • 1x TJA1101 customer evaluation board
    • 1x Unshielded Twisted Pair (UTP) Cable (automotive grade)
  • $108.65 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
