TJA1410, 10BASE-T1S PMD Transceiver
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

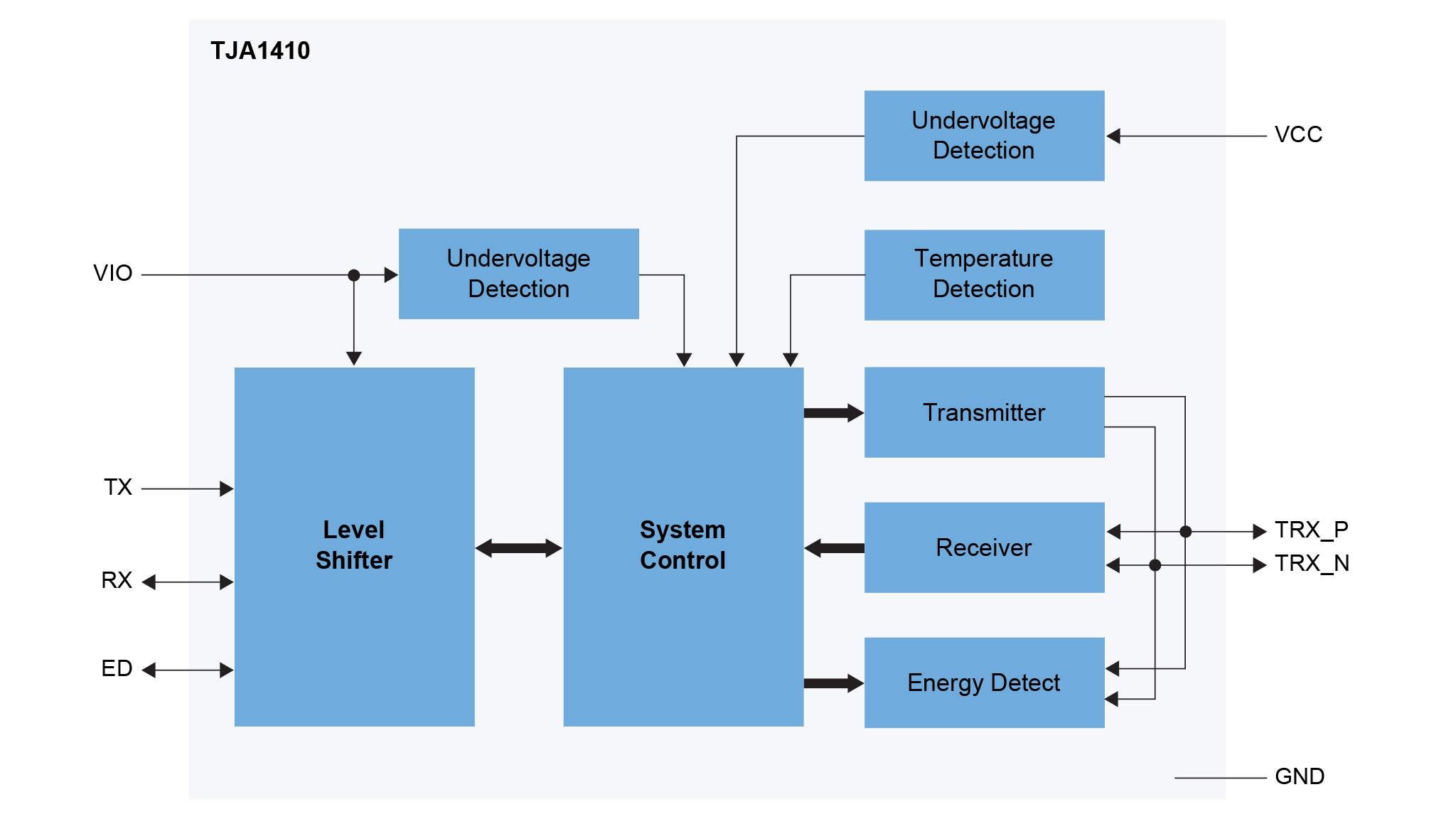

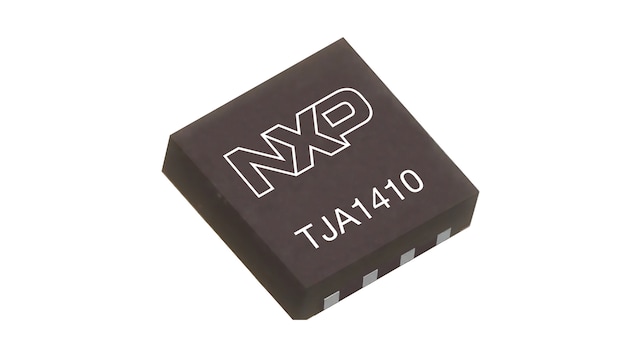

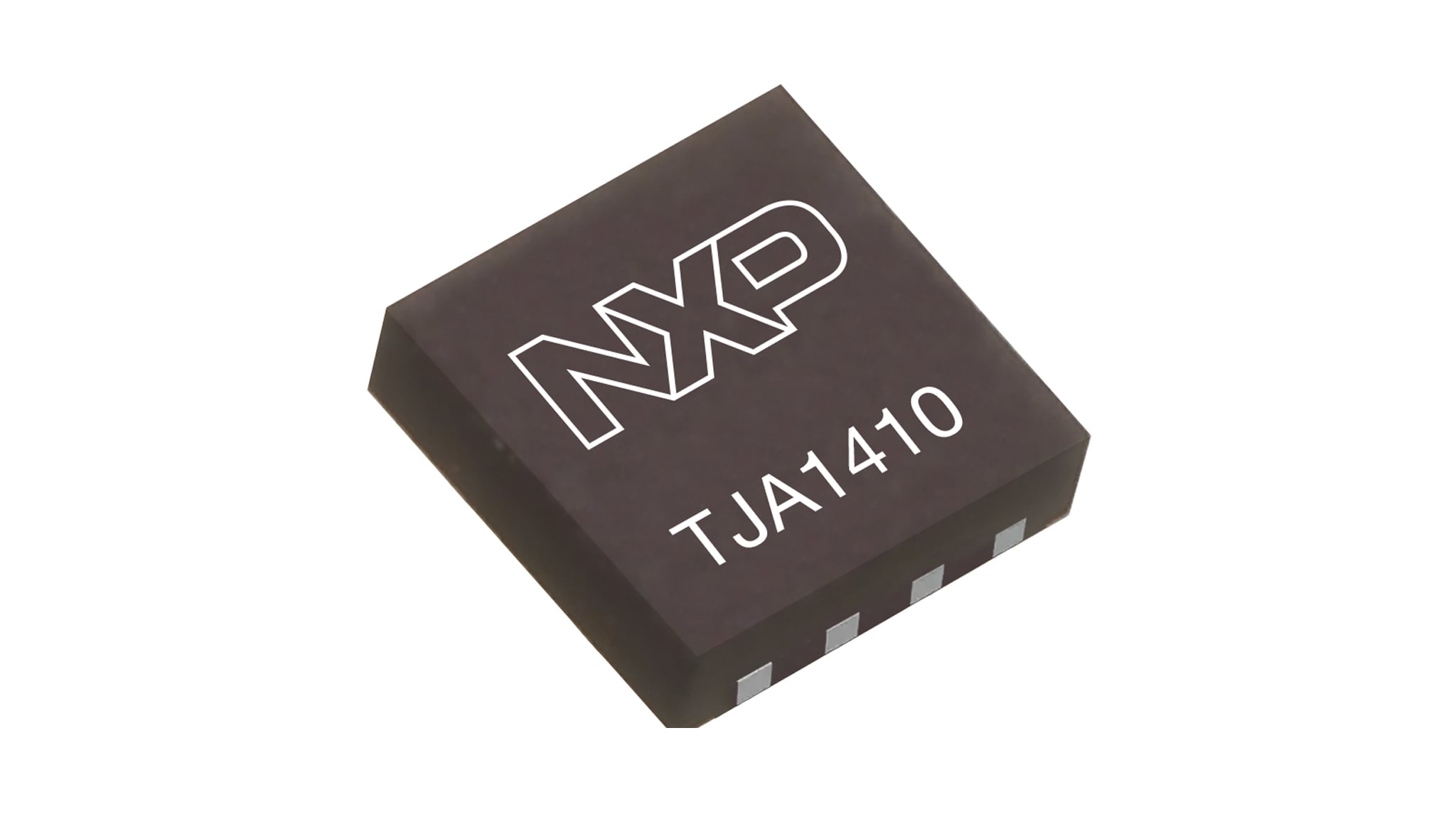

TJA1410 is NXP’s 10BASE-T1S OA TC14 specification-compliant PMD transceiver. It communicates over the OA 3-pin interface with the host MCU or switch, which must have the 10BASE-T1S digital PHY incorporated. The device comes in our compact HVSON8 (3 mm x 3 mm) package. The transceiver is made in our high-voltage process technology to guarantee best-in-class EMC performance.
The TJA1410 complies with all OA TC14 conformance test specifications and is designed according to ISO 26262 to meet ASIL B functional safety requirements. It also supports topology discovery as an advanced diagnostics feature. Further, it fully supports OPEN Alliance TC14-TC10 remote wake-up over the Ethernet data line.
Product Details
Features
Automotive
- Strong EMC performance
- ISO26262 ASIL B
- AECQ-100 Grade 1
- Low footprint HVSON8 (3 mm x 3 mm) package
Power Consumption
- Low quiescent current
Compliance
- Compliant to IEEE802.3cg and OPEN Alliance TC14 specifications
- Open Alliance TC14-TC10 remote wake-up
- Open Alliance TC14 advanced diagnostics topology discovery
Other
- Local and remote wake-up support
