DFN/QFN Support Tools

DFN_QFN_SUPPORT Active

Roll over image to zoom in

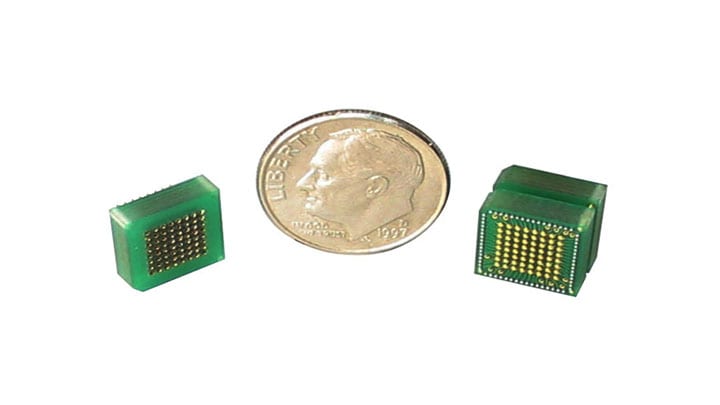

DFN or QFN target adapter designed to be installed (soldered) into the user's target system in place of a DFN or QFN component. Used in conjuction with other DFN or QFN support tools such as ZIF socket adapters

Product Details

Features

pinout options

  • 8, 16, 32, 44, 48, 64

Pitch options

  • 0.5, 0.65, and 0.8 mm

Buy Options

LFTQSE1C-Image

Click to expand

  • LFTQSE1C
    Active

  • 64 PIN 0.5MM QFN QFP Surface Mount Target Interface Set.

  • $600.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFTAA1C-Image

Click to expand

  • LFTAA1C
    Active

  • 8 PIN 0.8MM DFN target adapter.

  • $240.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFTAA13C-Image

Click to expand

  • LFTAA13C
    Active

  • 32 PIN 0.5MM QFN target adapter.

  • $240.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFDAA13C-Image

Click to expand

  • LFDAA13C
    Active

  • 32 PIN 0.5MM PITCH QFN ZIF socket adapter.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
