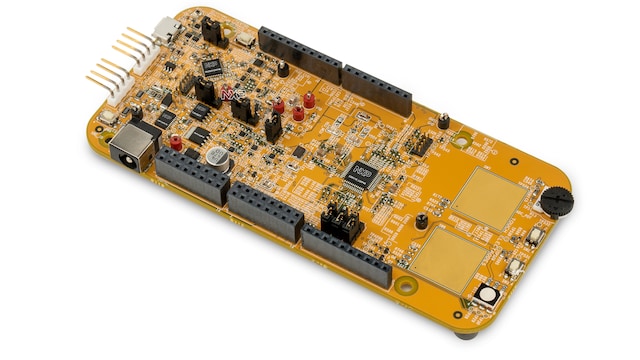

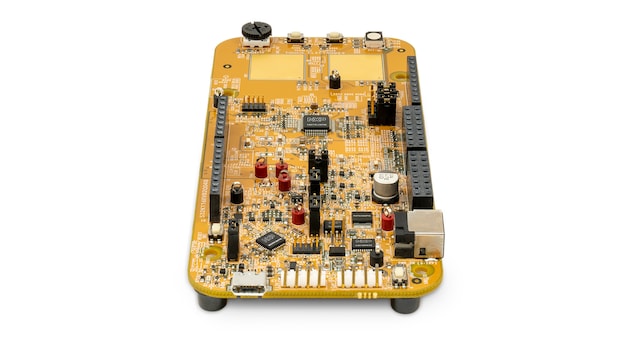

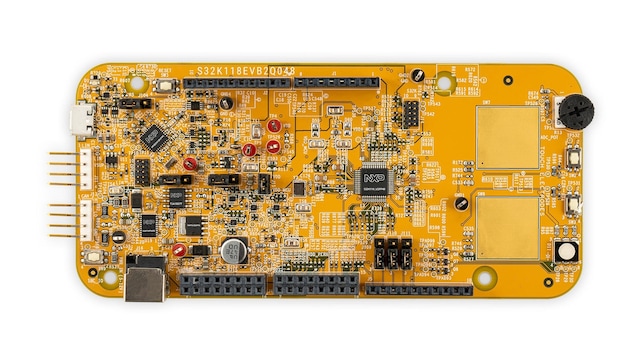

The S32K116EVB2Q048 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm^® Cortex^®-M0+ S32K11x MCU, both S32K116EVB2Q048 and S32K116EVB-Q048 offer a standard-based form factor compatible with the Arduino^® UNO pin layout, providing a broad range of expansion board options.

The two board versions integrate a security module complying with Secure Hardware Extension (SHE) specification for quick application prototyping and demonstration.

Design Files

Software

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

TJA1027: LIN 2.2A/SAE J2602 Transceiver

Power Management

System Basis Chips

UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Adapters

OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces

Size and Price

Small form factor size 4.5” x 2.3”
Low cost

Compatibility

Arduino^® UNO pint-out compatible with expansion “shield” support

Interfaces

On-board connectivity for CAN, LIN, UART/SCI

Power

Flexible power supply options: micro USB or external 12 V supply

Components

2 x touchpads
1 x potentiometer for precise voltage and analog measurement
1 x RGB LED
2 x push buttons
