Vision Toolbox for MATLAB®

VISION-TOOLBOX

Roll over image to zoom in

The NXP Vision Toolbox for MATLAB® is a complementary integrated development environment for the S32V234 processor which is a high-performance automotive processor designed to support safe computation-intensive applications in the area of vision and sensor fusion. The NXP Vision Toolbox for MATLAB enables editing, simulation, compiling and deployment of designs from MATLAB environment.

Based on Mathworks® software including Image Processing and Computer Vision System Toolboxes the NXP Vision Toolbox offers designers a straightforward development tool that makes vision accelerators programming easy. NXP software, along with the NXP Vision Toolbox provides a comprehensive enablement environment that reduces development time.

Diagram

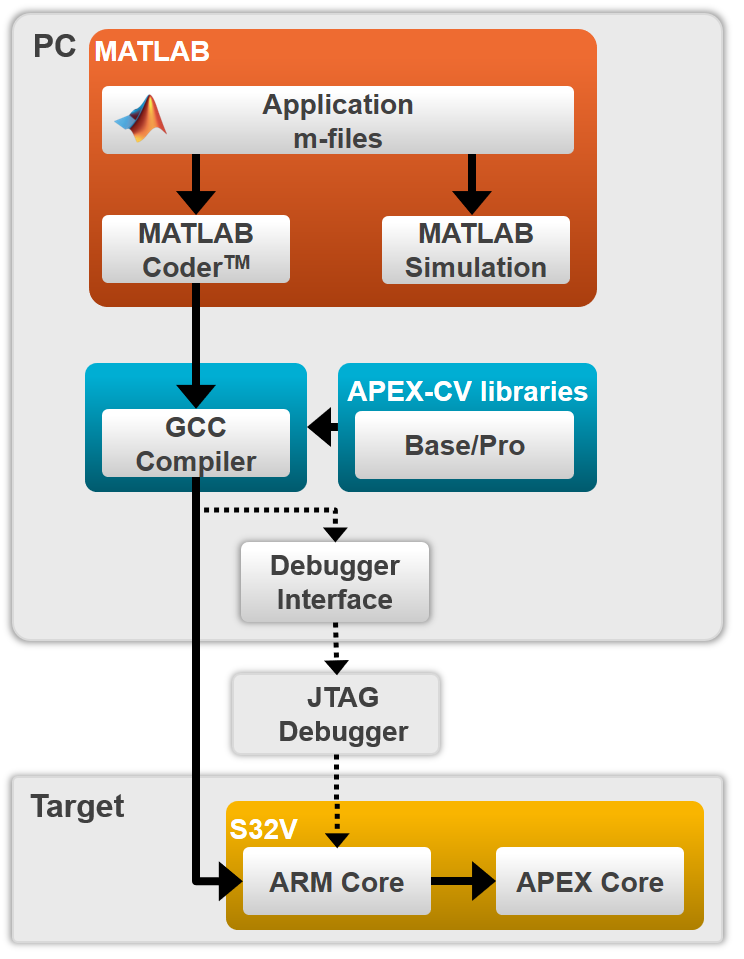

Automotive General Block Diagram

Automotive General Block Diagram
Get diagram PDF

Features

  • Seamless integration with MATLAB environment for easy vision application development, simulations and target running support
  • Generate code for Linux™ based applications with direct download to target support
  • Built-in support for IO functions to control onboard camera and display
  • Integrated NXP Software:
    • Vision SDK – includes ISP and APEX kernels
    • Linux board support package for A53 core development
    • NXP APU Compiler
    • Arm® Compiler
  • Support A53 and APEX programming directly from MATLAB m-scripting
  • Includes collaterals providing convenient access to manuals, tool guides, how-to videos and application notes
  • Example projects demonstrating ISP and APEX functionalities based on Mathworks Computer Vision System Toolbox examples

Supported Devices

  • S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion

Downloads

Quick reference to our software types.
Filters

2 downloads

  • BSPs and Device Drivers

    Vision SDK Software

    FLEXERARev 1.5.1Mar 24, 20201 KBSW32V23-VSDK001E
    Download
  • Debugging and Visualization Tools

    Vision Toolbox for MATLAB - Windows

    EXERev 1.1.0May 2, 20191 KBNXP-VISION-TOOLBOX-MATLABRelease Note
    Download

Note: For better experience, software downloads are recommended on desktop.
