S32V2 Vision and Sensor Fusion Evaluation System

S32V234EVB Active

Roll over image to zoom in

The S32V234-EVB2 is a complete evaluation board and development platform engineered for high-performance, safe computation-intensive front vision, surround vision, and sensor fusion applications.

Based on the 64-bit Arm® Cortex®-A53 S32V processors, the S32V234-EVB is designed to cover all available features in the S32V234 processor, including Automotive Ethernet, VIU camera inputs, FlexRay, and more. The S32V234-EVB offers two board options: with or without a built-in display. There are expansion card options available to support the camera sensor modules.

The S32V234 processors offer both S32V234-EVB2 and SBC-S32V234 board options with similar functionality; consider using the cost-competitive and small form factor SBC-S32V234 evaluation board if your use case is covered by all its features.

Product Details

Features

Memory

  • 2 GiB DDR Memory
  • SD card slot
  • QSPI Nor Flash
  • 16 GiB EMMC for NVM

Connectivity

  • Gigabit Ethernet
  • Expansion card options
  • Various other communication and General IO connectors
  • Automotive Ethernet Switch SJA1105
  • 6 Automotive Ethernet ports TJA1102

Display / Camera Connectors

  • Video input (VIU connectors, 2 x MIPI-CSI2)
  • Video Output (RGB to LVDS converter, RGB to HDMI converter)
  • 1x PCIe 2.0

Sensors

  • Accelerometer and magnetometer plus gyroscope

Buy Options

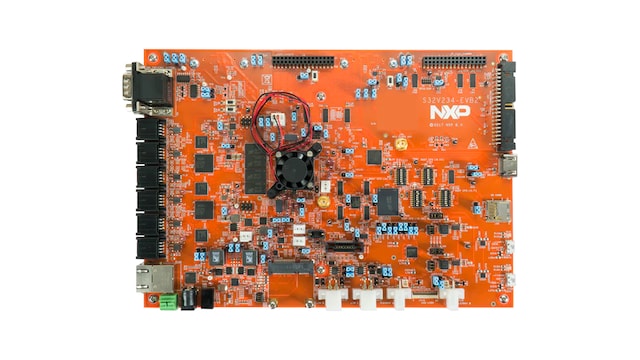

S32V234-EVB2-Image

Click to expand

  • S32V234-EVB2
    Active

  • S32V2 Vision and Sensor Fusion Evaluation System.

    • S32V234-EVB2:
    • S32V234-EVB2 Evaluation Board
    • 12 V power adapter
    • 2x10-pin to 2x5-pin adapter for JTAG
  • $2500.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

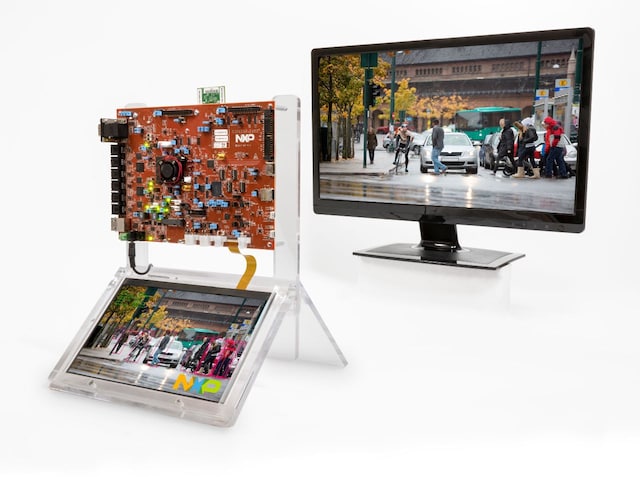

S32V234-EVB2-D-Image

Click to expand

  • S32V234-EVB2-D
    Active

  • S32V2 Vision and Sensor Fusion Evaluation System.

    • S32V234-EVB2-D:
    • S32V234-EVB2 Evaluation Board
    • LVDS Display with 1920x1080 resolution
    • 12 V power adapter
    • 2x10-pin to 2x5-pin adapter for JTAG
  • $2900.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
