SBC-S32V234
Active -
S32V2 Vision and Sensor Fusion low-cost Evaluation Board .

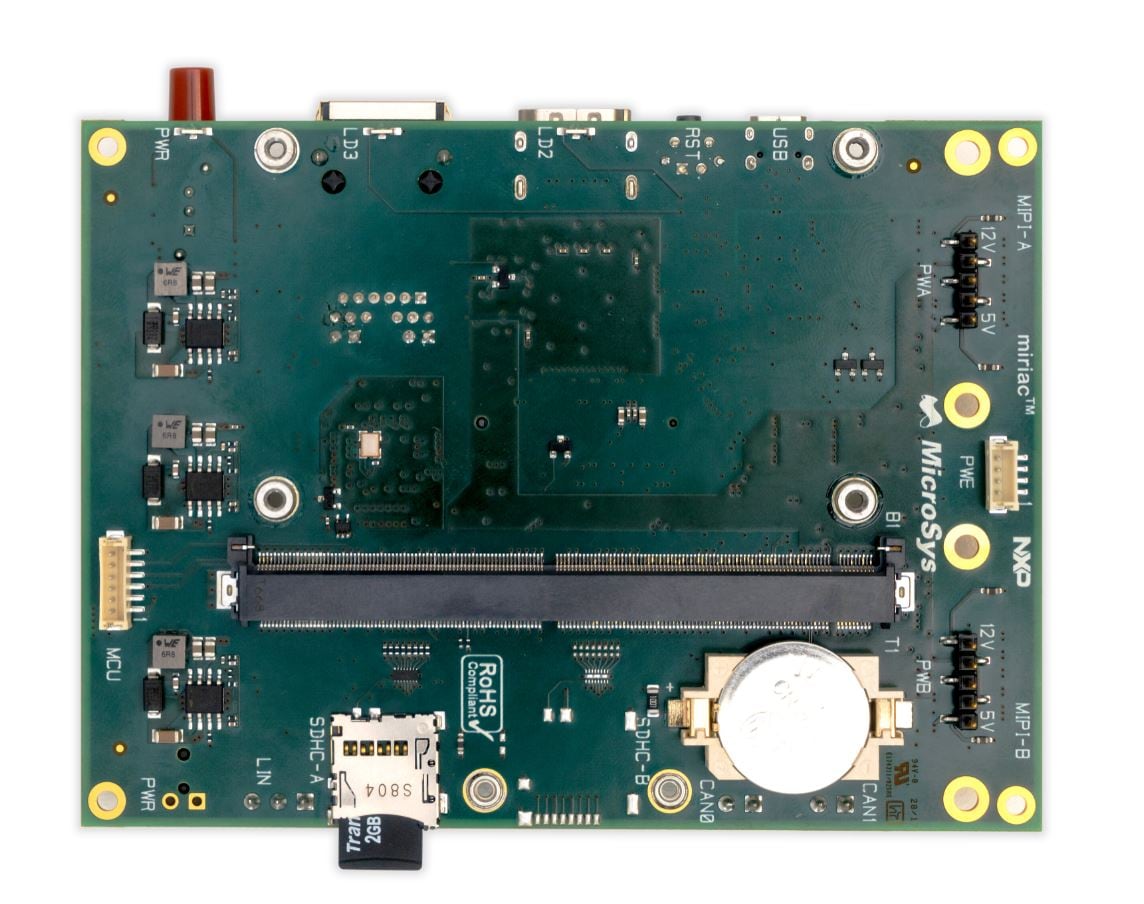

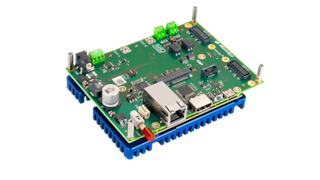

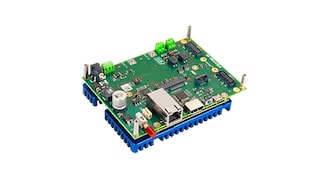

- SBC-S32V234 Evaluation Board
- 12 V power adapter
- SD card
S32V2 Vision and Sensor Fusion low-cost Evaluation Board
The SBC-S32V234 is a cost-competitive evaluation board and development platform engineered for high-performance, safe computation-intensive front vision, surround vision, and sensor fusion applications.
Developed in partnership with MicroSys and based on the 64-bit Arm® Cortex®-A53 S32V processors, the SBC-S32V234 has an efficient form factor while covering many of the uses cases available for the S32V234 processors.
The SBC-S32V234 is the recommended starting evaluation board for S32V processors.
The S32V234 processors offer both S32V234-EVB2 and SBC-S32V234 board options with similar functionality; consider using the cost-competitive and small form factor SBC-S32V234 evaluation board if your use case is covered by all its features.
Product Details
Supported Devices
Processors and Microcontrollers
S32V2 Vision MPUs
- S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion
Features

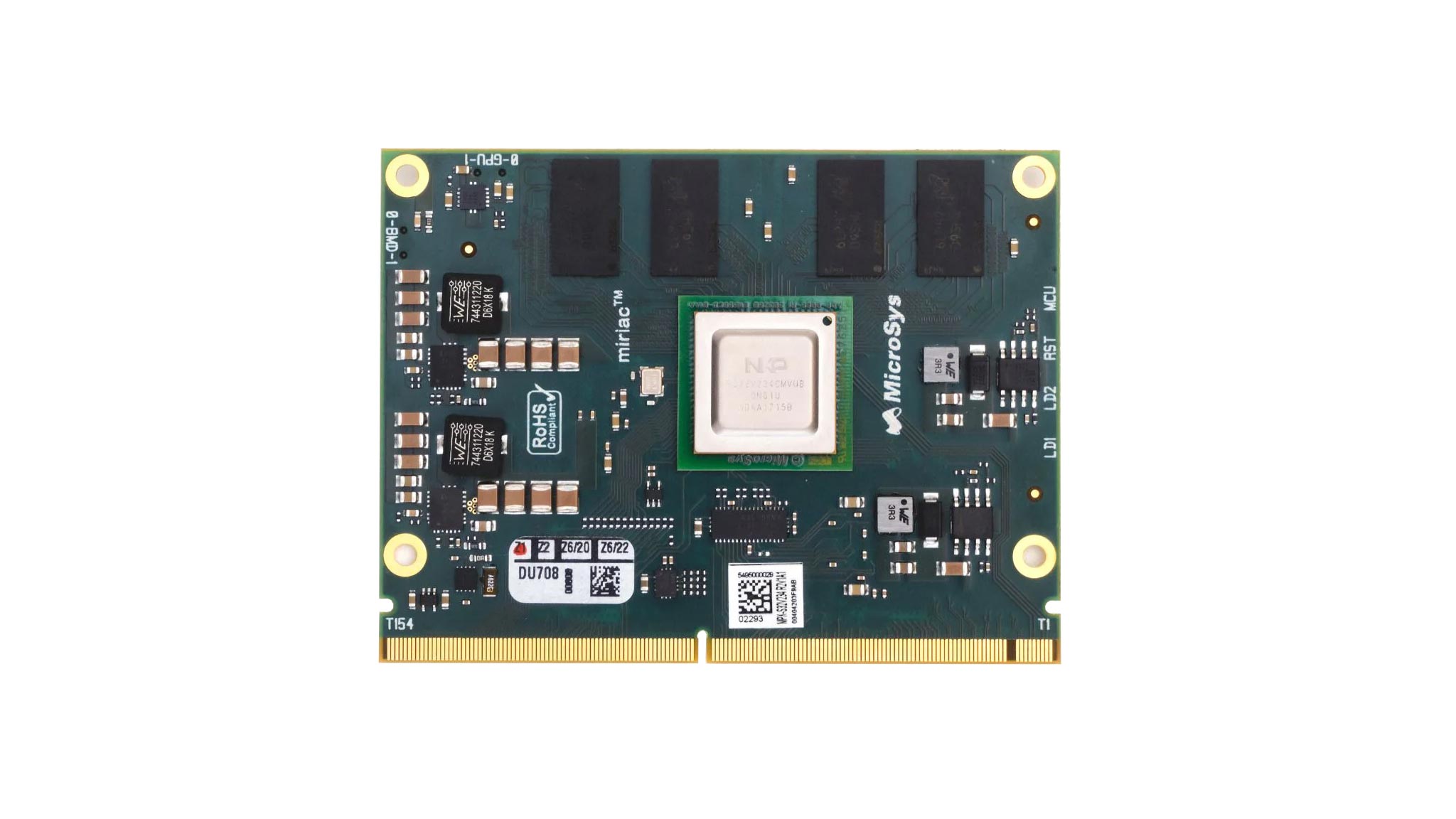

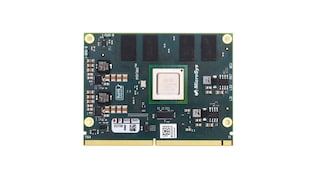

Processor
-
Arm® Cortex®-A53, 64-bit CPU
- Up to 1000 MHz Quad Arm Cortex-A53
- 32 KB/32 kB I-/D- L1 Cache
-
Arm Cortex-M4, 32-bit CPU
- Up to 133 MHz
- 16 KB/16 kB I-/D- L1 Cache
Power Management
- 5 and 12 V Power Supply connector
Display / Camera Connectors

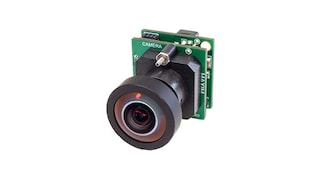

- Video input (2 x MIPI-CSI2)
- Video Output (RGB to HDMI converter)
- 1x PCIe 2.0
Connectivity
- Gigabit Ethernet
- 2 x CAN, 1 x LIN and 1 x UART
- Up to 8 ADC channels
Memory
- 2 GiB DDR Memory plus SD card slot and 16 GiB EMMC for NVM
User Components
- 2 User LEDs
- Reset

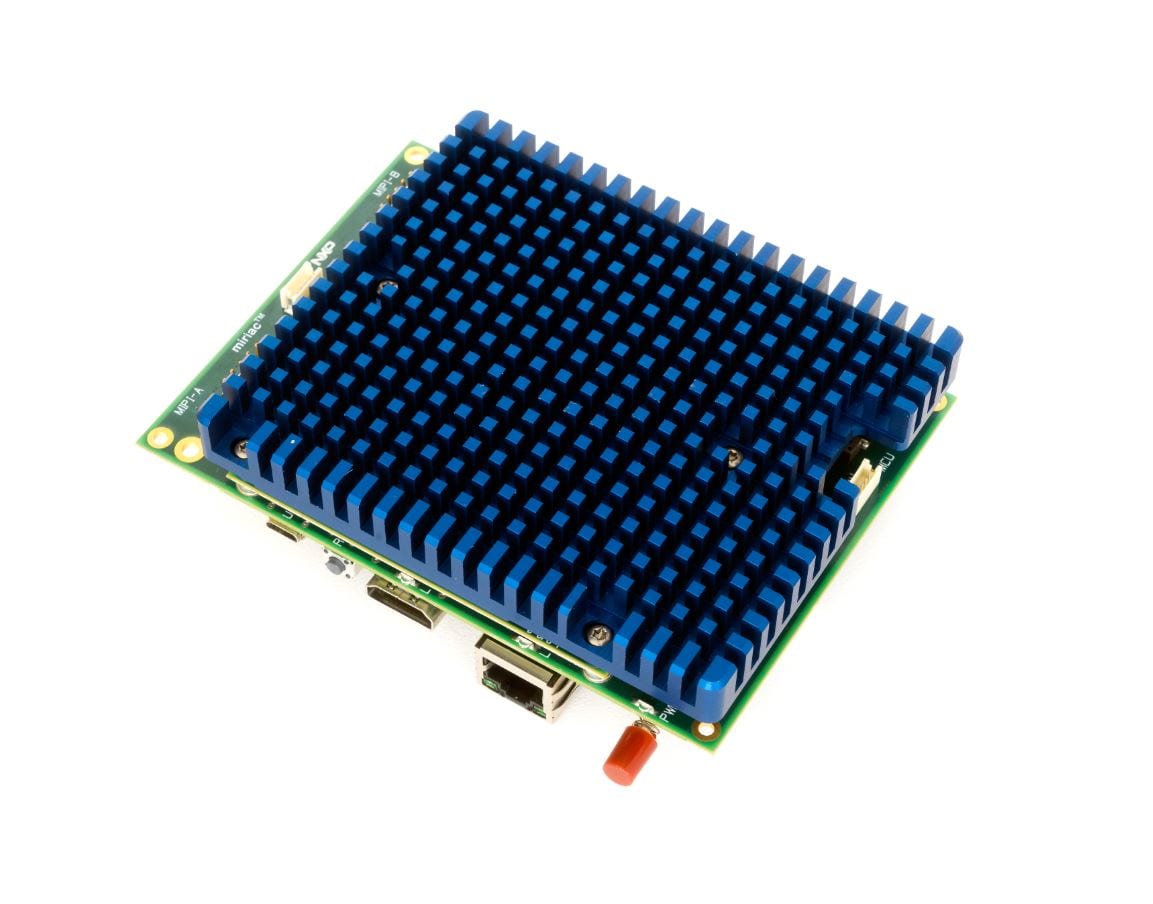

- Aluminum Heatsink and optional fan (not included)
Debug
- 10-pin JTAG debug connector
Buy Options
Documentation
Quick reference to our documentation types.
5 documents
-
User Guide
Get Started with the SBC-S32V234Getting Started
-
Quick Reference Guide
SBC-S32V234 - Quick Start Guide
Design Resources
Design Files
Quick reference to our
design files types.
4 design files
-
Printed Circuit Boards and Schematics
CRX-S32V Schematic
-
Symbols and Footprints
S32V234 - IBIS
-
Symbols and Footprints
S32V234 - FloTHERM
-
Symbols and Footprints
S32V234 - BSDL
Software
Quick reference to our software types.
1-5 of 6 software files
-
BSPs and Device Drivers
BSP for S32 Microcontrollers and Processors
-
BSPs and Device Drivers
Vision Toolbox for MATLAB®
-
BSPs and Device Drivers
Vision SDK Software
-
Additional software available. View our featured partner solutions.
-
BSPs and Device Drivers
S32 Software Development Kit for S32V
-
BSPs and Device Drivers
Automotive SW for S32V234 – Linux BSP
Note: For better experience, software downloads are recommended on desktop.
