S32K31XEVB-Q100
Active
Features
S32K31XEVB-Q100 Evaluation Board for Automotive General Purpose
Buy Options
S32K31XEVB-Q100
Active
12NC: 935437774598
Details
- Min. Package Quantity: 1
- Min. Order Quantity: 1
Operating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
S32K31XEVB-Q100(935437774598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
S32K31XEVB-Q100 (935437774598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | CCATS |
|---|---|---|
S32K31XEVB-Q100 (935437774598) | 847150 | G191205 |
More about S32K31XEVB-Q100

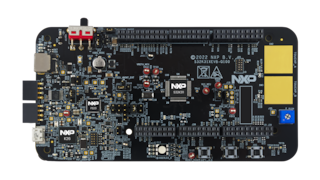

The S32K31XEVB-Q100 is an evaluation and development board for general-purpose industrial and automotive applications.
Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 100 HDQFP package, the S32K31XEVB-Q100 offers a single core mode, HSE security engine, OTA support, advanced connectivity and low power.
The S32K31XEVB-Q100 offers a standard-based form factor compatible with the Arduino® pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
