3 Phase Inverter Reference Design Using the GD3162 with HybridPACK Drive

RDGD3162I3PH5EVB

Roll over image to zoom in

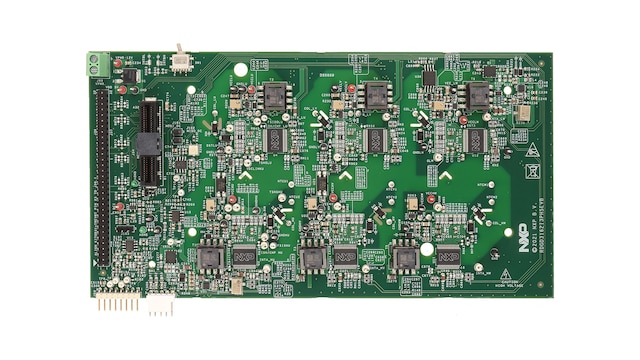

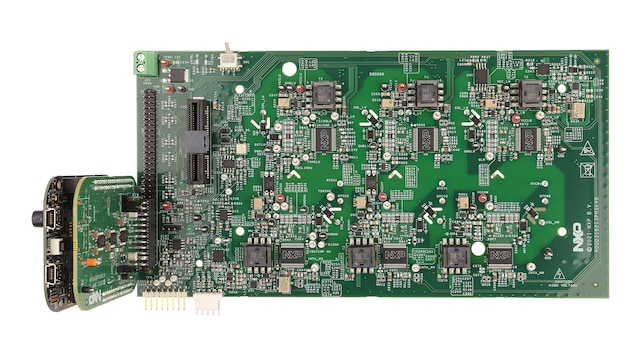

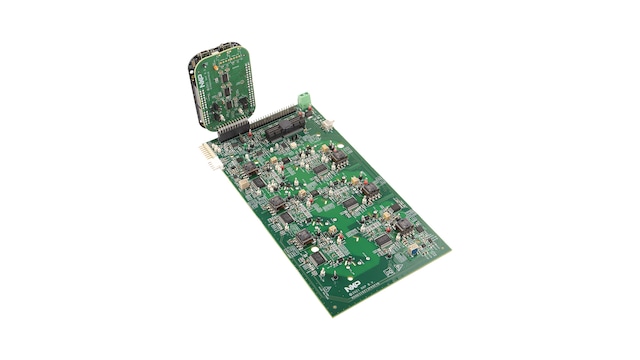

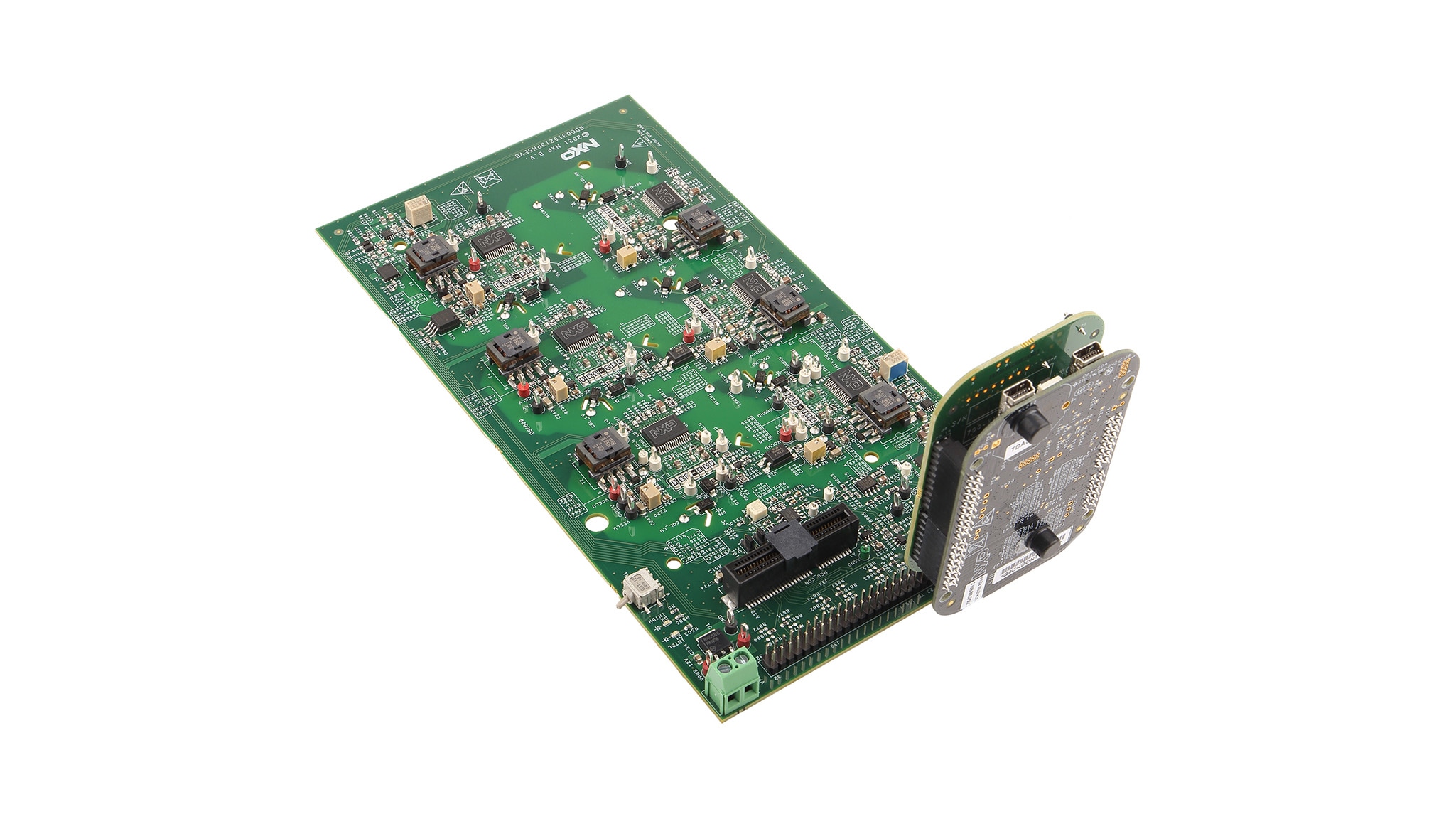

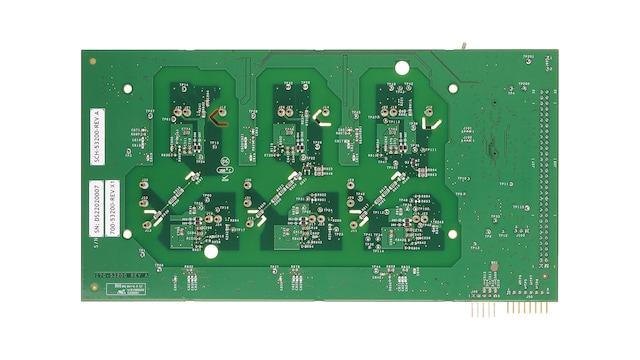

RDGD3162I3PH5EVB is a three-phase inverter reference design and evaluation board populated with six GD3162 single channel IGBT/SiC MOSFET gate drive devices. The evaluation board is designed to connect to a compatible HybridPACK drive IGBT or SiC module for full three-phase inverter applications development and testing. Included with board is KITGD316xTREVB MCU/translator for communication and testing using Flex GUI software.

Block Diagram

GD3162 Block Diagram

GD3162 Block Diagram
Get diagram PDF

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3162: Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications
  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management

Features

General Features

  • GD3162 gate drivers for IGBT/SiC MOSFET
  • Compatible with HybridPACK Drive three-phase module
  • Daisy Chain SPI interface configurability

Buy Options

RDGD3162I3PH5EVB-Image

Click to expand

  • RDGD3162I3PH5EVB
    Active

  • 3 Phase Inverter Reference Design Using the GD3162 with HybridPACK Drive.

  • Kit Contains

    • Assembled and tested RDGD3162I3PH5EVB (three-phase inverter populated with 5.0 V compatible gate driver devices) board in an anti-static bag
    • KITGD316XTREVB 3.3 V to 5.0 V translator with FRDM-KL25Z MCU board with micro USB cable
    • Quick Start Guide
  • $653.05 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
