800 V Battery Junction Box Using ETPL with MC33772C

RD772BJBTPL8EVB Active

Roll over image to zoom in

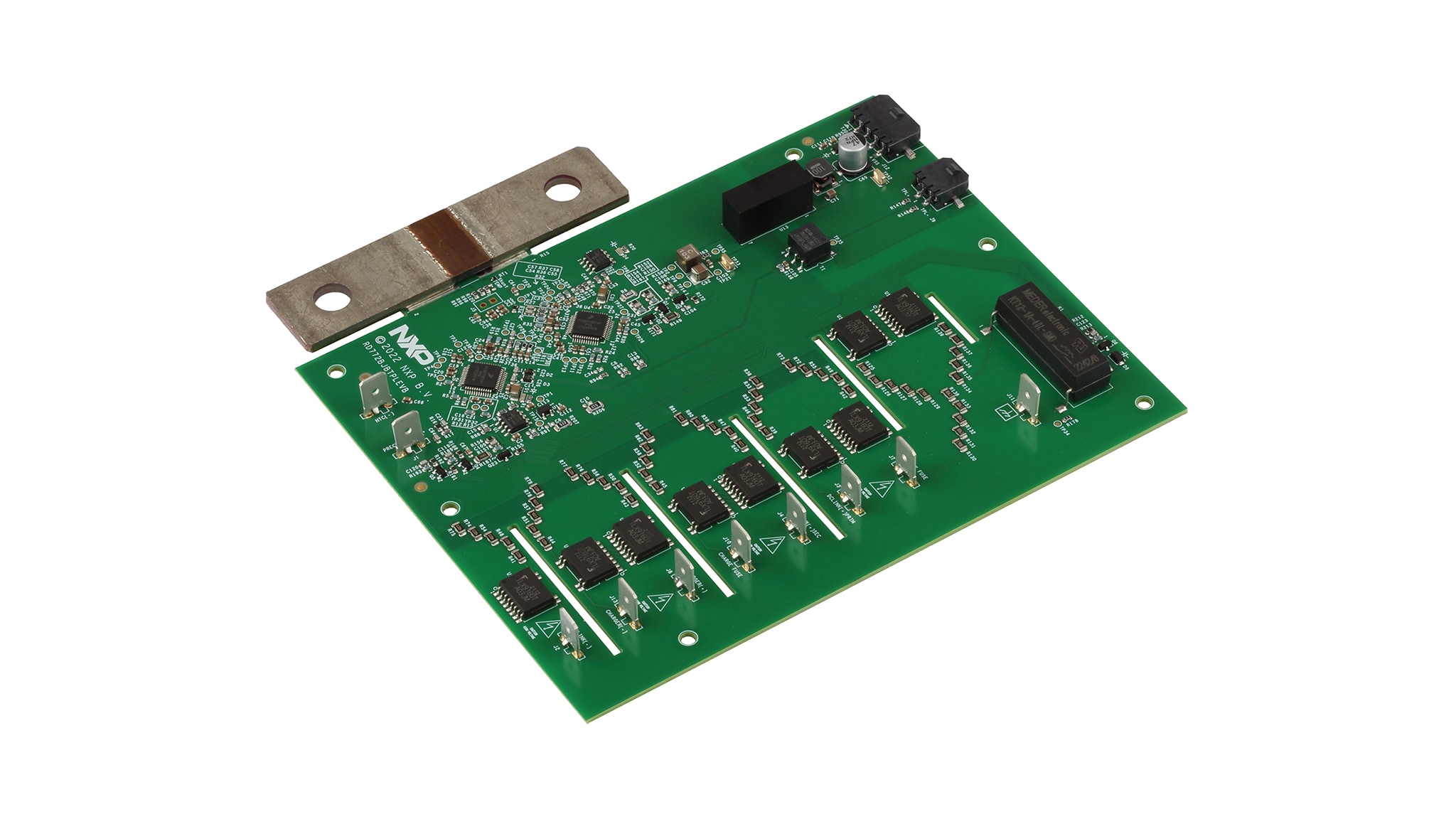

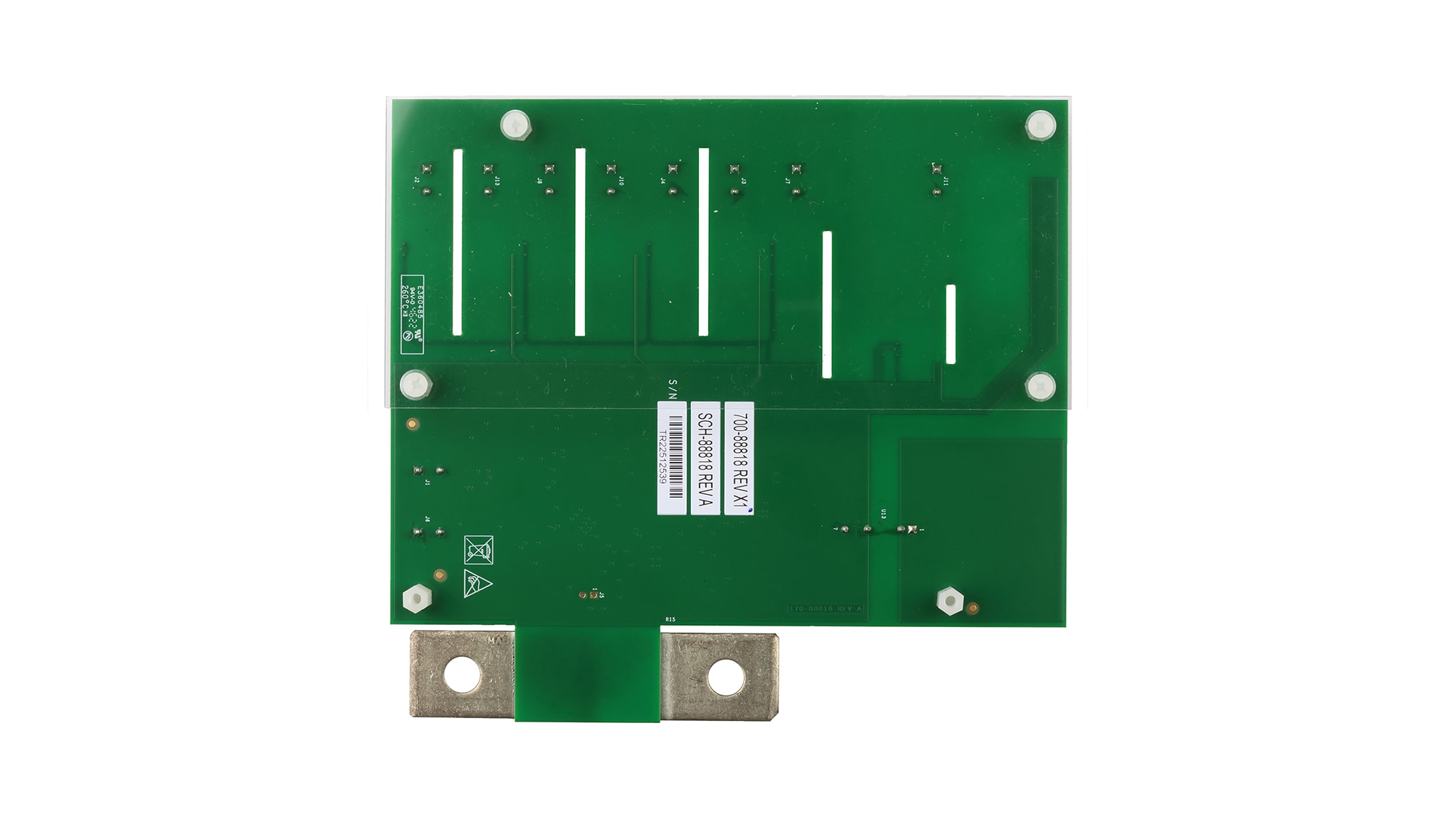

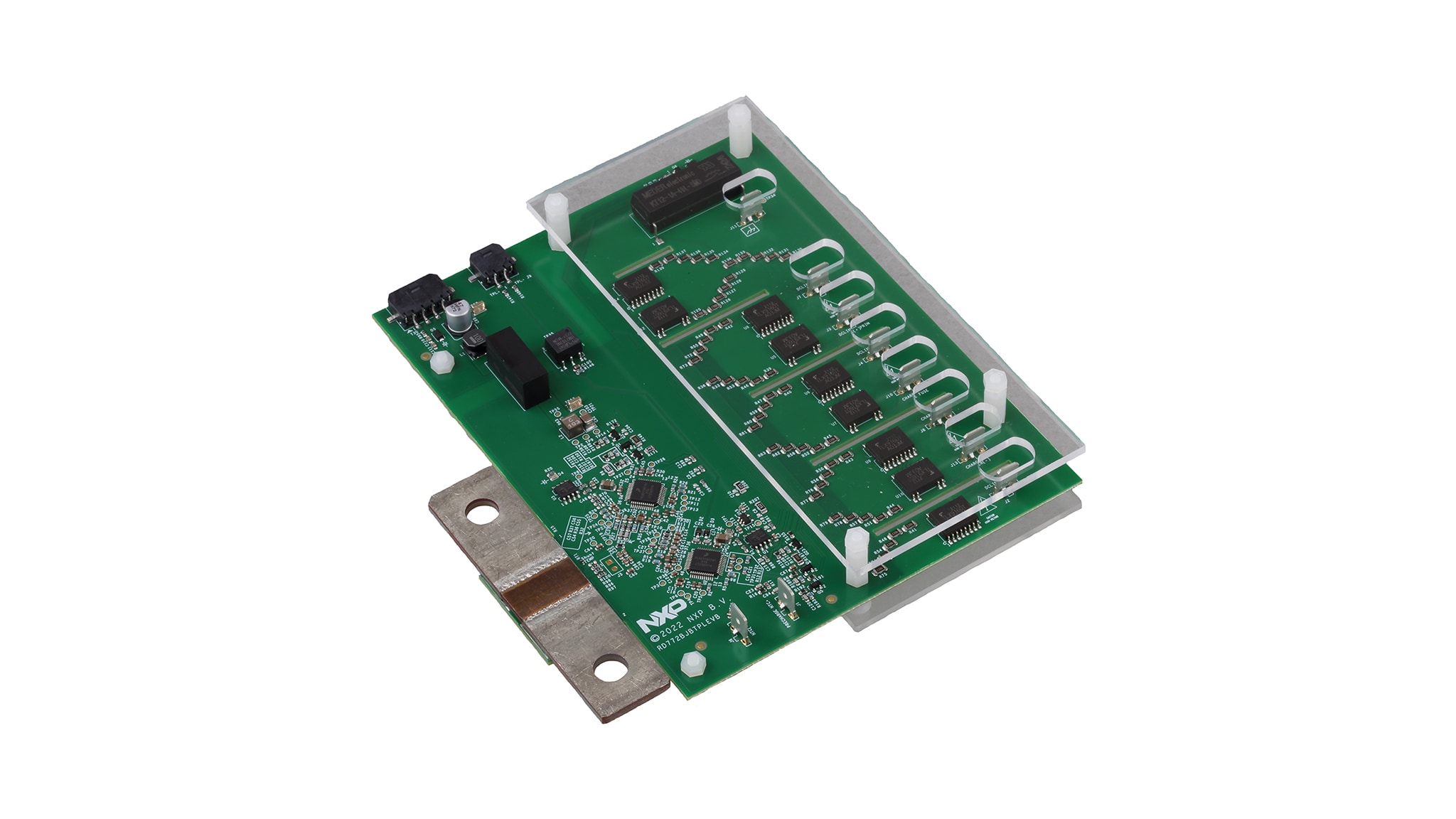

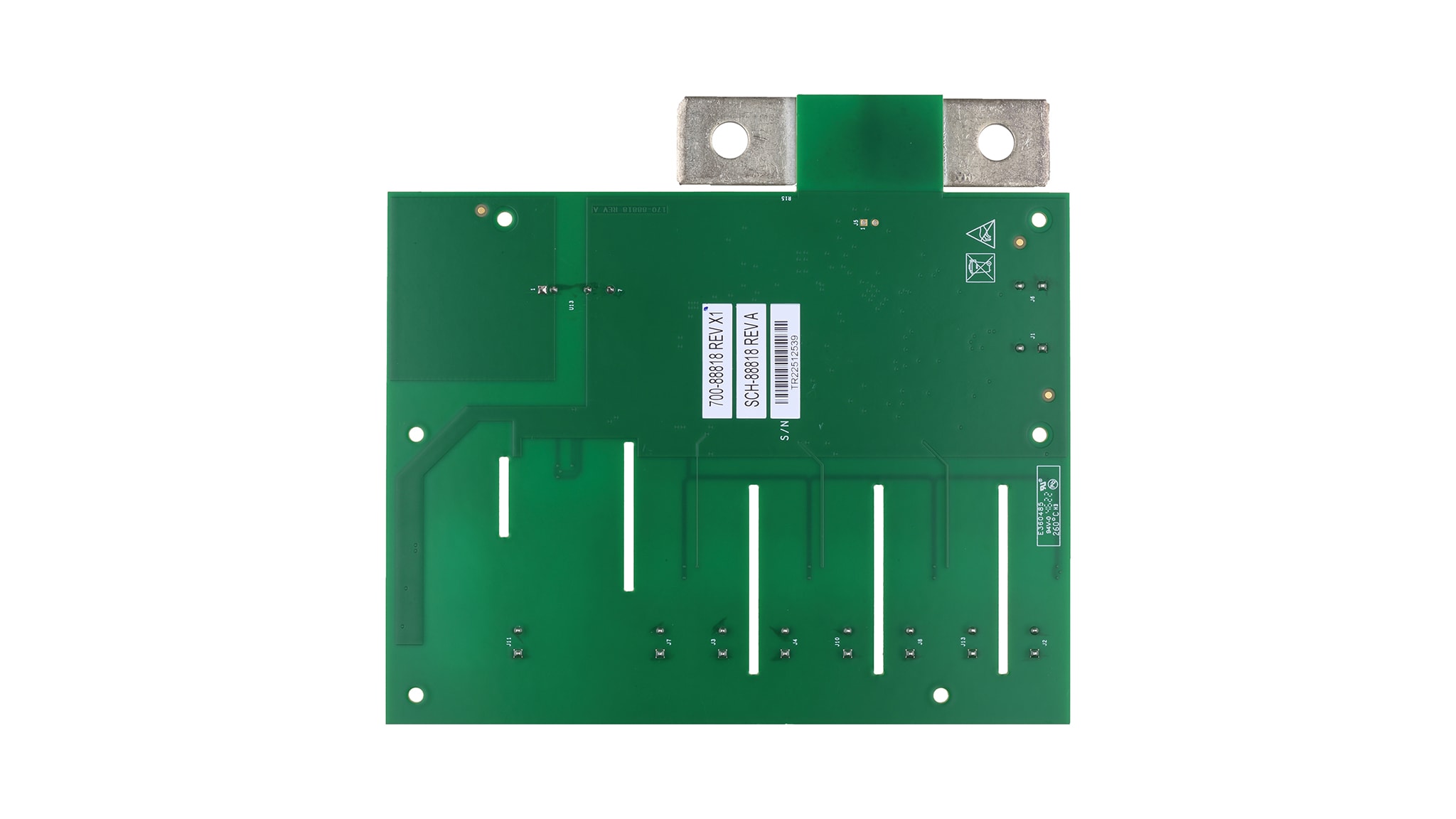

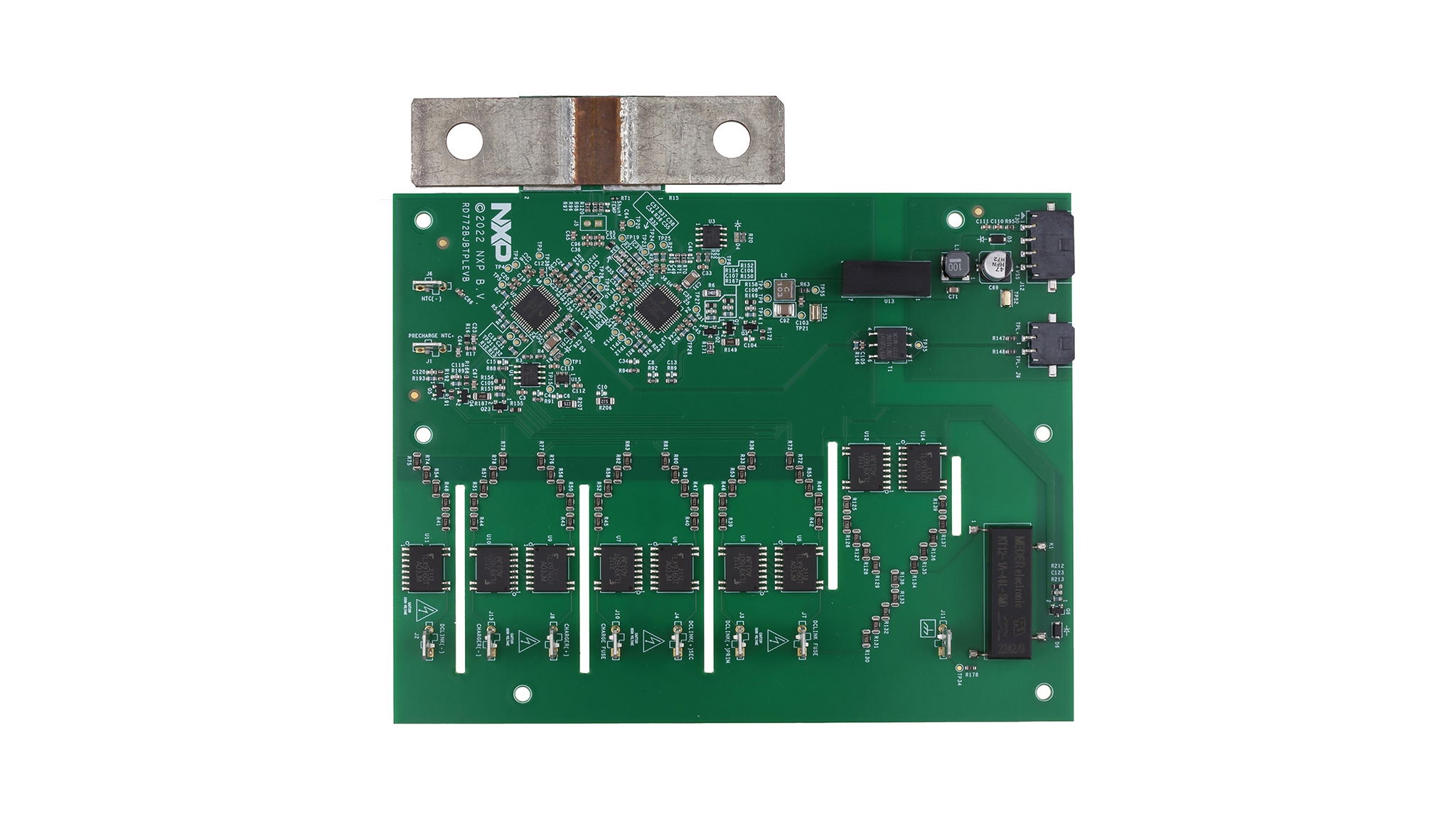

The RD772BJBTPL8EVB is a battery junction box (BJB) reference design with electrical transport protocol link (ETPL) communication. It is meant for rapid prototyping of a 800 V high-voltage battery management system (HVBMS) hardware and software. This board contains two MC33772C battery sensors for redundant high voltage and current measurements and performs isolation measurements.

This board is part of the RD-HVBMSCT800BUN reference design bundle using ETPL.

Block Diagram

RD772BJBTPL8EVB

RD772BJBTPL8EVB Block Diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC

Features

High Voltage Measurement

  • 7 high voltage measurements (up to 1000 V) with high accuracy

Battery Current Measurement

  • Fully redundant current measurement up to +/-1500 A (with populated shunt, adaptable)
  • 0.5% measurement error (IC level only)

Temperature Measurement

  • Shunt temperature measurement for current measurement compensation
  • Pre-charge resistor temperature measurement

Isolation Measurement

  • Isolation resistance measurement between high voltage and low voltage domains

Communication

  • Isolated electrical transport protocol link (ETPL) communication between BJB and BMU

Buy Options

RD772BJBTPL8EVB-Image

Click to expand

  • RD772BJBTPL8EVB
    Active

  • HVBMS Battery Junction Box (BJB).

  • Kit contains:

    • 1 RD772BJBTPLEVB board
    • 1 power cable
    • 7 high voltage measurement cables
    • 1 pair of thermal sensor cable
    • 1 ETPL cable
    • 1 chassis cable for isolation measurement
    • 1 plexiglass cover
  • $1065.73 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 11
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
Order from distributors
