P3S0210 Dual Bidirectional I3C Switch and Voltage Level Translator Evaluation Board

P3S0210BQ-ARD

Roll over image to zoom in

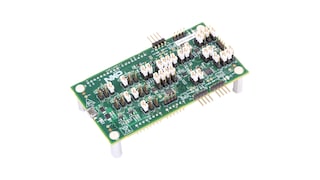

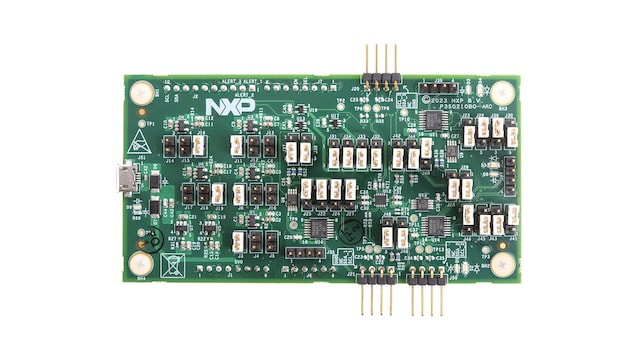

The P3S0210 evaluation board allows the customer to evaluate the on-board P3S0210 dual bidirectional I3C-bus 1:2 and 2:1 switch and voltage level translator with auto direction sensing. The evaluation board can be connected to the customer's I²C/I3C controller via a 100 mil pitch header, or via the Arduino® interface headers. The board is powered by a USB cable, and the on-board LDOs are used to provide power to the P3S0210 as well as the rest of the components on the board.

Each P3S0210 port has one on-board 8-bit I²C GPIO expander (PCA9538) and one I3C temperature sensor (P3T1175) connected to the port. The user I²C/I3C controller can access these devices via the port I²C/I3C interface headers.

Block Diagram

P3S0210BQ-ARD

P3S0210BQ-ARD Block Diagram
Get diagram PDF

Supported Devices

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Interfaces

I3C Interface Devices

  • P3S0210BQ: P3S0210BQ Dual Bidirectional I3C 1:2 Switch and VLT

General Purpose I/O (GPIO)

  • PCA9538: 8-Bit I²C-Bus and SMBus Low-Power I/O Port with Interrupt and Reset

Features

  • On-board I²C and I3C target devices, I3C temperature sensor and I²C 8-bit GPIO
  • VCCP1, VCCP2, VCCPS, VCCE and VCCR supply selectable voltages via jumpers
  • Port 1 to Port S or Port 2 to Port S is selectable
  • Evaluation board is USB powered so external power supply is not required
  • Evaluation board can be connected to a standard NXP microcontroller board via Arduino interface headers
  • Off the board I²C and I3C target devices can be conveniently connected to the P3S0210 via on-board headers

Buy Options

P3S0210BQ-ARD-Image

Click to expand

  • P3S0210BQ-ARD

  • P3S0210 Dual Bidirectional I3C Switch and Voltage Level Translator Evaluation Board.

  • Kit Contains

    • Assembled and Tested Evaluation Board in an anti-static bag
    • Motor Control shield for DEVKIT (DEVKIT-MOTORGD) Board
  • $30.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
