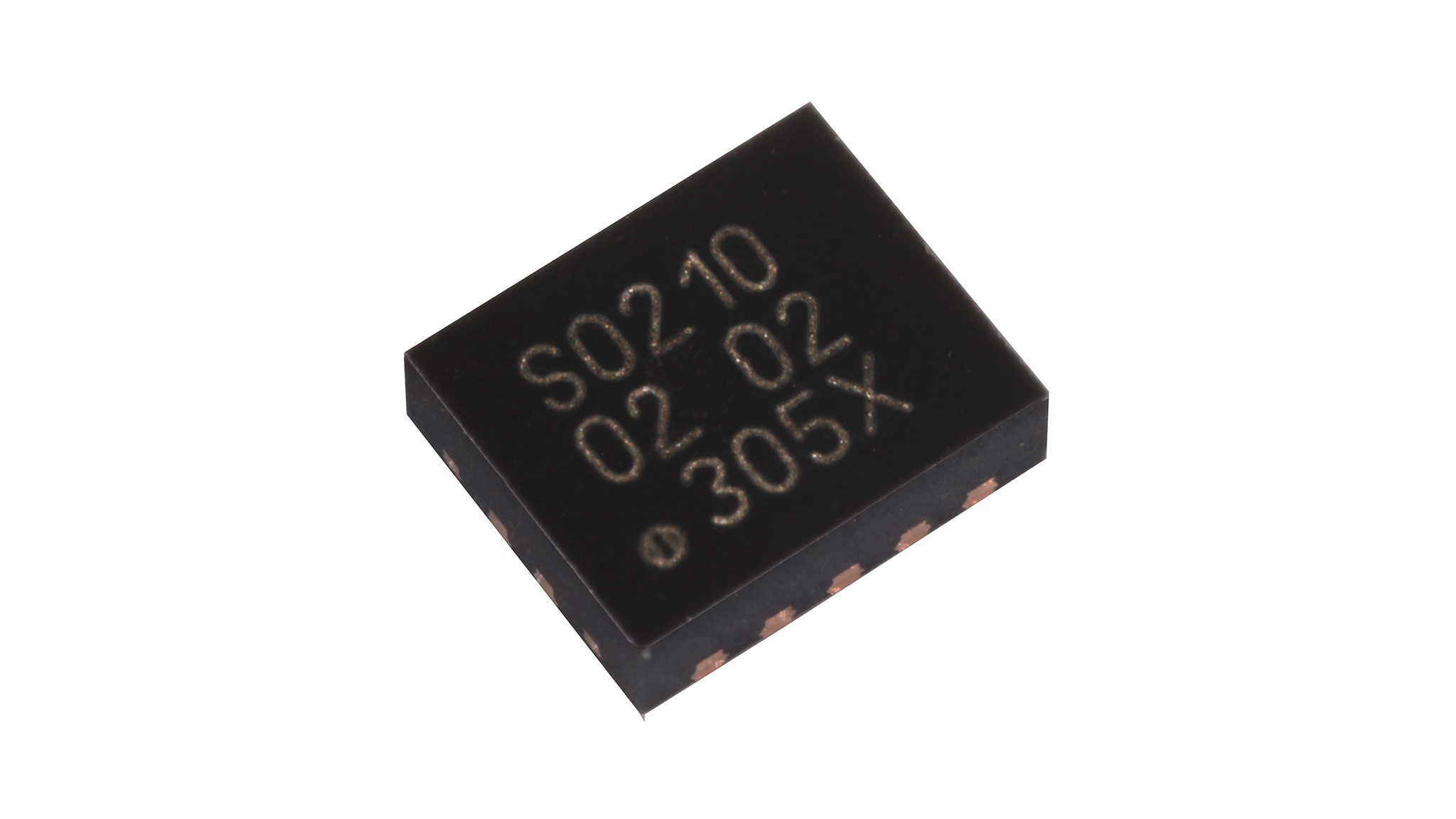

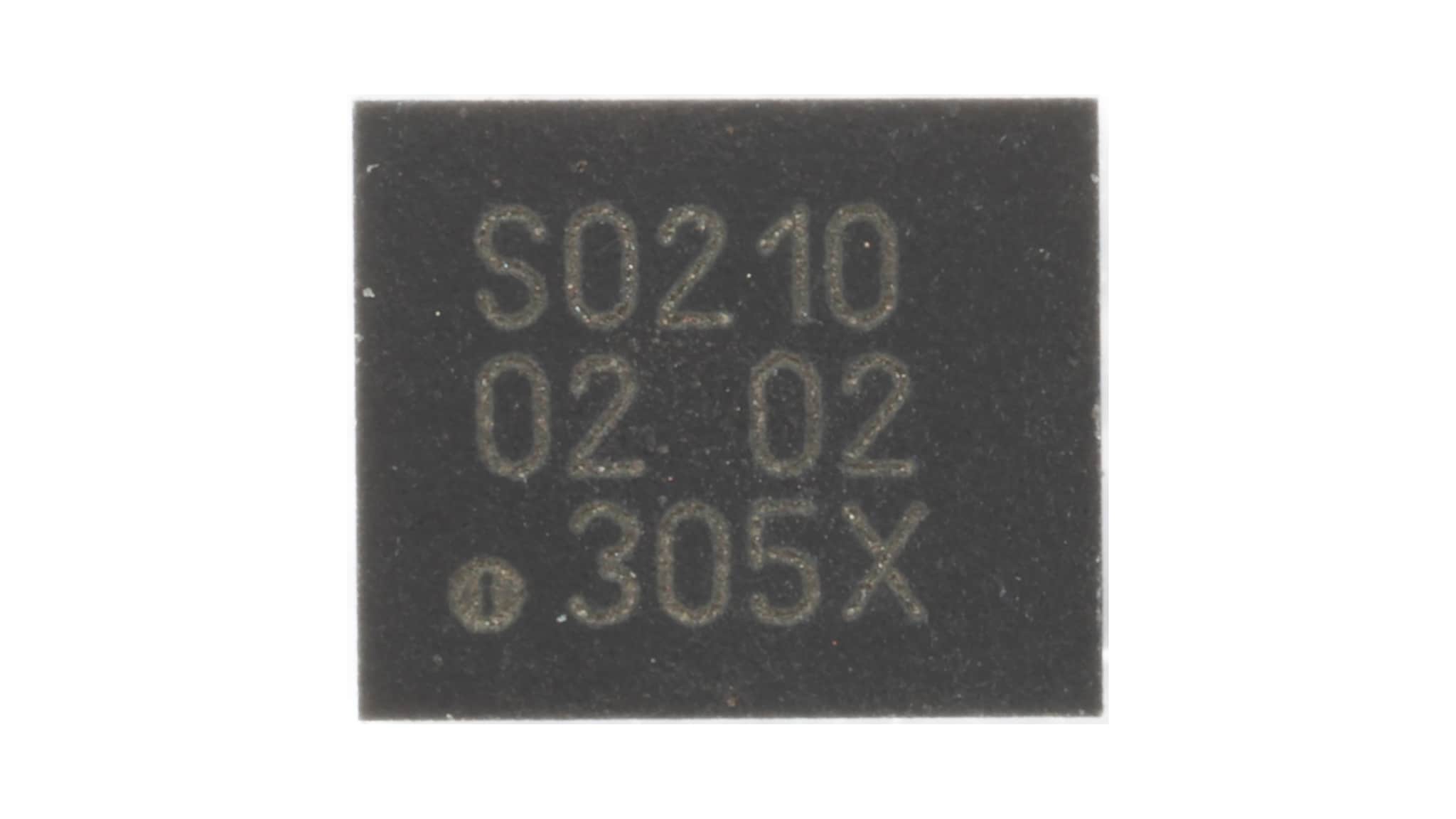

P3S0210BQ Dual Bidirectional I3C 1:2 Switch and VLT
P3S0210BQ is a dual bidirectional I3C-bus 1:2 and 2:1 switch and voltage level translator that can be used for both open-drain as well as push-pull application allowing for I3C-bus and other applications like I²C-bus, SMBus and SPI protocols in a DHVQFN14 package.
The controller, peripheral and interface ports can be set from 0.72 V to 3.63 V and must be less than or equal to the reference supply, which can be set between 1.62 V to 3.63 V. This part is specified for partial power down applications disabling the output which prevents damaging backflow current through the device.
Product Details
Features
I3C Switch and Voltage Level Translation
- 2:1; two controllers - one target
- 1:2; one controller - two targets
Wide Supply Range
- 0.72 V to 3.63 V for controller, interface, and peripheral ports
- 1.62 V to 3.63 V for reference supply
- All port voltages need to be less than reference supply
Open Drain and Push Pull Application
- I3C, I²C and SPI protocols
- Data rate up to 52 Mbps
Robustness Feature Set
- HBM JESD22-A114E Class 2 exceeds 2000 V
- CDM JESD22-C101E exceeds 1000 V
- Latch-up performance exceeds 100 mA per JESD 78F Class II
- IOFF circuitry disables the output, preventing the damaging backflow current
Market Segments
- Server and data center
- Networking
- Desktop and laptop computers
- Smart phone and mobile devices

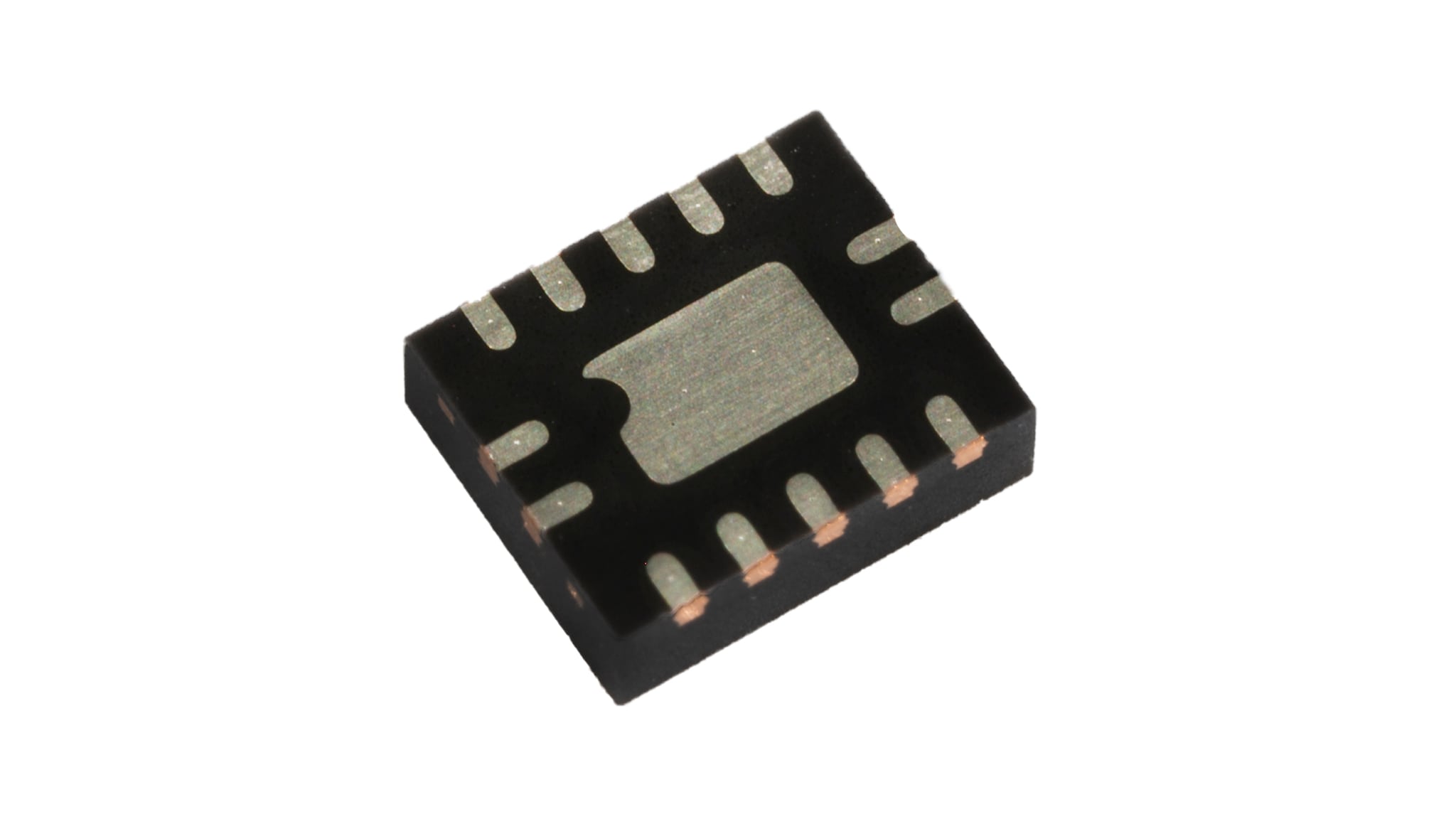

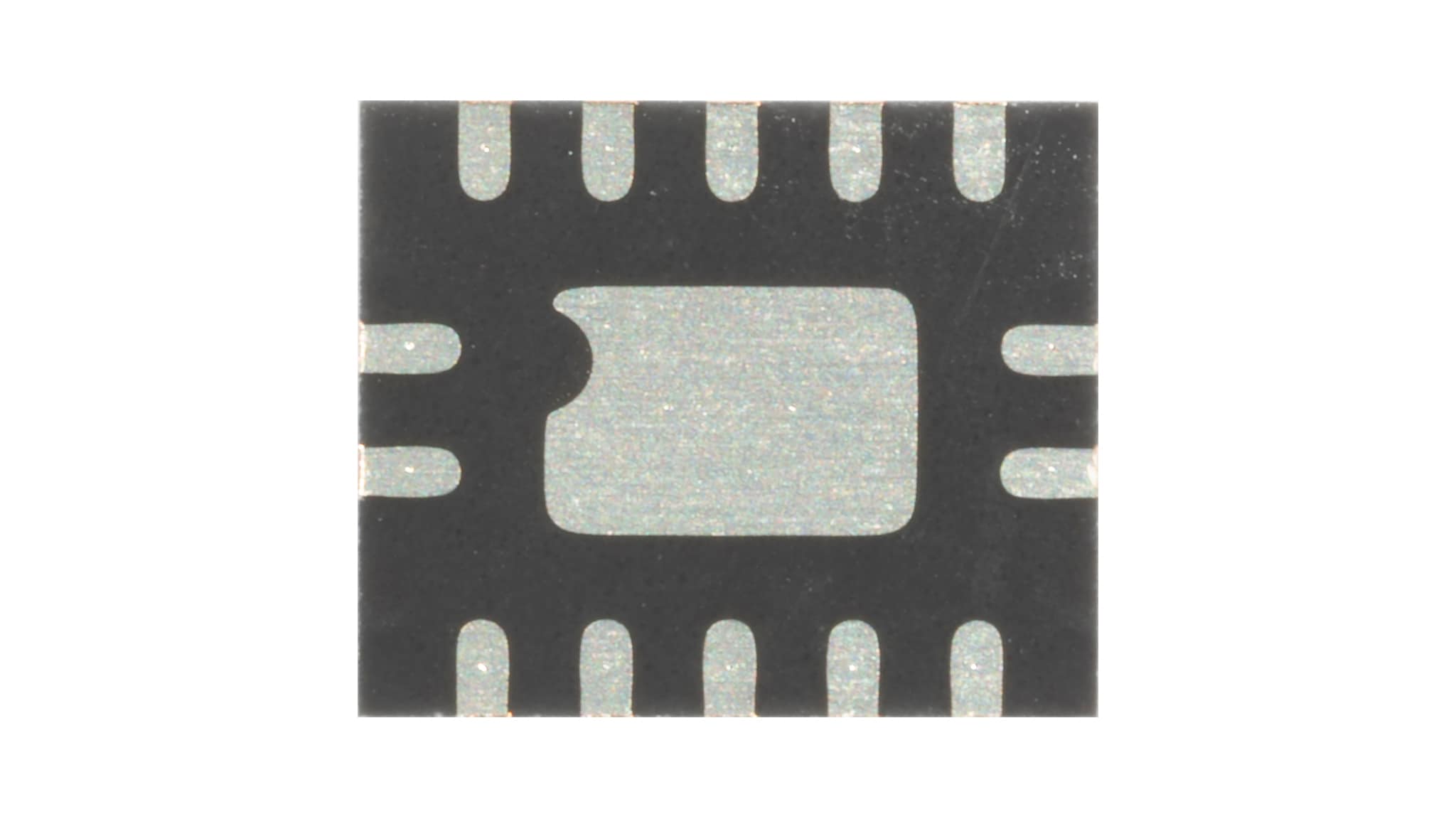

Package
- DHVQFN14 - 2.5 mm x 3 mm x 0.85 mm, 0.5 mm pitch
- Rated for -40 °C to +125 °C ambient operating temperature
