Eight-Channel I²C-Bus Multiplexer with Reset

PCA9547 Active

The PCA9547 is an octal bidirectional translating multiplexer controlled by the I²C-bus. The SCL/SDA upstream pair fans out to eight downstream pairs, or channels. Only one SCx/SDx channel can be selected at a time, determined by the contents of the programmable control register. The device powers up with Channel 0 connected, allowing immediate communication between the controller and downstream devices on that channel.

An active LOW reset input allows the PCA9547 to recover from a situation where one of the downstream I²C-buses is stuck in a LOW state. Pulling the RESET pin LOW resets the I²C-bus state machine causing all the channels to be deselected, except Channel 0 so that the controller can regain control of the bus.

The pass gates of the multiplexers are constructed such that the VDD pin can be used to limit the maximum high voltage which will be passed by the PCA9547. This allows the use of different bus voltages on each pair, so that 1.8 V, 2.5 V, or 3.3 V parts can communicate with 5 V parts without any additional protection. External pull-up resistors pull the bus up to the desired voltage level for each channel. All I/O pins are 5 V tolerant.

Block Diagram

Choose a diagram:

PCA9547

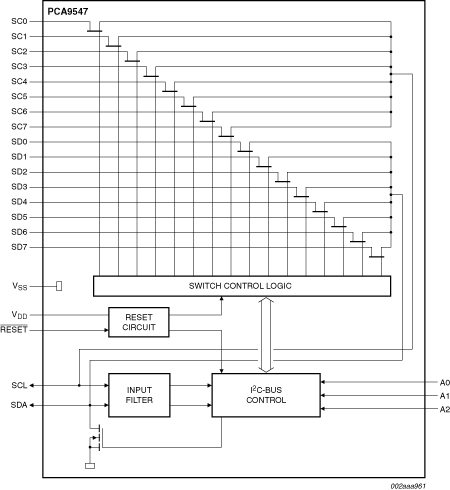

PCA9547 Block Diagram

PCA9547BS, PCA9547D, PCA9547PW

PCA9547BS, PCA9547D, PCA9547PW

Get diagram PDF

Features

Key Features

  • 1-of-8 bidirectional translating multiplexer
  • I²C-bus interface logic; compatible with SMBus standards
  • Active LOW RESET input
  • 3 address pins allowing up to 8 devices on the I²C-bus
  • Channel selection via I²C-bus, one channel at a time
  • Power-up with all channels deselected except Channel 0 which is connected
  • Low Ron multiplexers
  • Allows voltage level translation between 1.8 V, 2.5 V, 3.3 V and 5 V buses
  • No glitch on power-up
  • Supports hot insertion
  • Low standby current
  • Operating power supply voltage range of 2.3 V to 5.5 V
  • 5 V tolerant inputs
  • 0 Hz to 400 kHz clock frequency
  • ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
  • Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA

Packages Offered

  • SO24, TSSOP24, HVQFN24

Buy/Parametrics

3 results

Include 0 NRND

Part

Show description

Order

CAD Model

Interrupt

Operating Temperature (°C)

Reset input pin

Operating voltage (VDC)

Inputs

Outputs

No of Addresses

I2C-bus (kHz)

PCA9547BS
Data Sheet

yes

-40~85

yes

2.3~5.5

1

8

8

400

PCA9547D
Data Sheet

yes

-40~85

yes

2.3~5.5

1

8

8

400

PCA9547PW
Data Sheet

yes

-40~85

yes

2.3~5.5

1

8

8

400
