P3H2441HN I3C Hub Arduino® Shield Evaluation Board

P3H2441HN-ARD
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

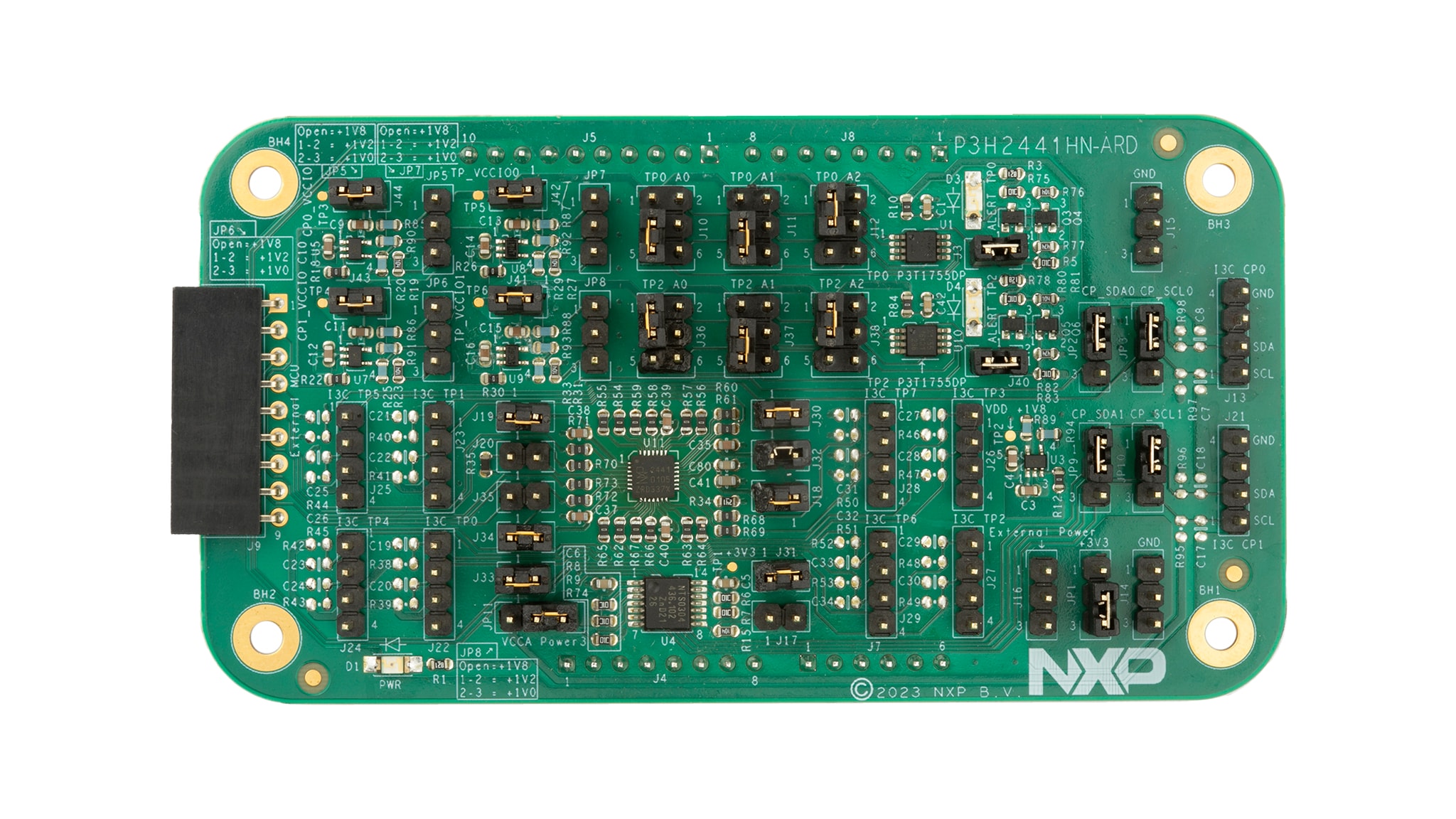

P3H2441HN I3C Hub Arduino Shield evaluation board is a complete evaluation platform for the P3H2441HN (Under development). The I3C Hub has 2 controller port connectors and 4 target ports connectors fo P3H2441HN controller and target ports evaluation.

On-board, it has 1.0 V / 1.2 V / 1.8 V LDOs for controller and target ports power supply configuration and two temperature sensors (P3T1755DP) with alert LEDs providing complete system validation.

Moreover, the P3H2441HN is equipped with convenient test points for easy scope measurements and signal access, a USB interface to the host PC and a power supply from USB port or external power supply that can be used to power P3H2441HN-ARD evaluation board.

Product Details

Features

  • Two controller ports to connect to I3C or I²C/SMBus controller devices: Controller Port 0 (CP0) and Controller Port 1 (CP1). Pre-configured I3C mode only by default
  • Four Target Ports (TP), each port can be used to connect to I3C only devices, I²C only devices, mixed I3C and I²C devices
  • Integrated LDO regulators to provide 1.0 V, 1.2 V or 1.8 V
  • HUB network to communicate between controller ports to target ports in a transparent bridge mode
  • I3C IBI and hot join support
  • A user-friendly GUI makes it easy to explore the hub features

Related Hardware

Quick reference to our board types.
Filters

4 hardware offerings

Design Files

Quick reference to our design files types.
Filters

2 design files

Software

Quick reference to our software types.

Filters

2 software files

  • BSPs and Device Drivers

    P3H2x4x I3C Hub - Application Code Hub

    MCUXPRESSORev 1Mar 4, 20251 KBP3H2X4X-I3C-HUB-APPLICATION-CODE-HUB
    Download
  • BSPs and Device Drivers

    P3H2x4x I3C Hub with Demo App (SDK)

    GITHUBRev 1Mar 4, 20251 KBP3H2X4X-I3C-HUB-DEMO-APP-SDK
    Download

Note: For better experience, software downloads are recommended on desktop.
