24-Channel SPI Serial Bus 63 mA / 5.5 V Constant-Current LED Driver

PCA9958HN-ARD

Roll over image to zoom in

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

Supported Devices

Power Management

LED Drivers

  • PCA9958HN: PCA9958 24-Bit 63 mA Current LED Driver with SPI

Features

Key Features

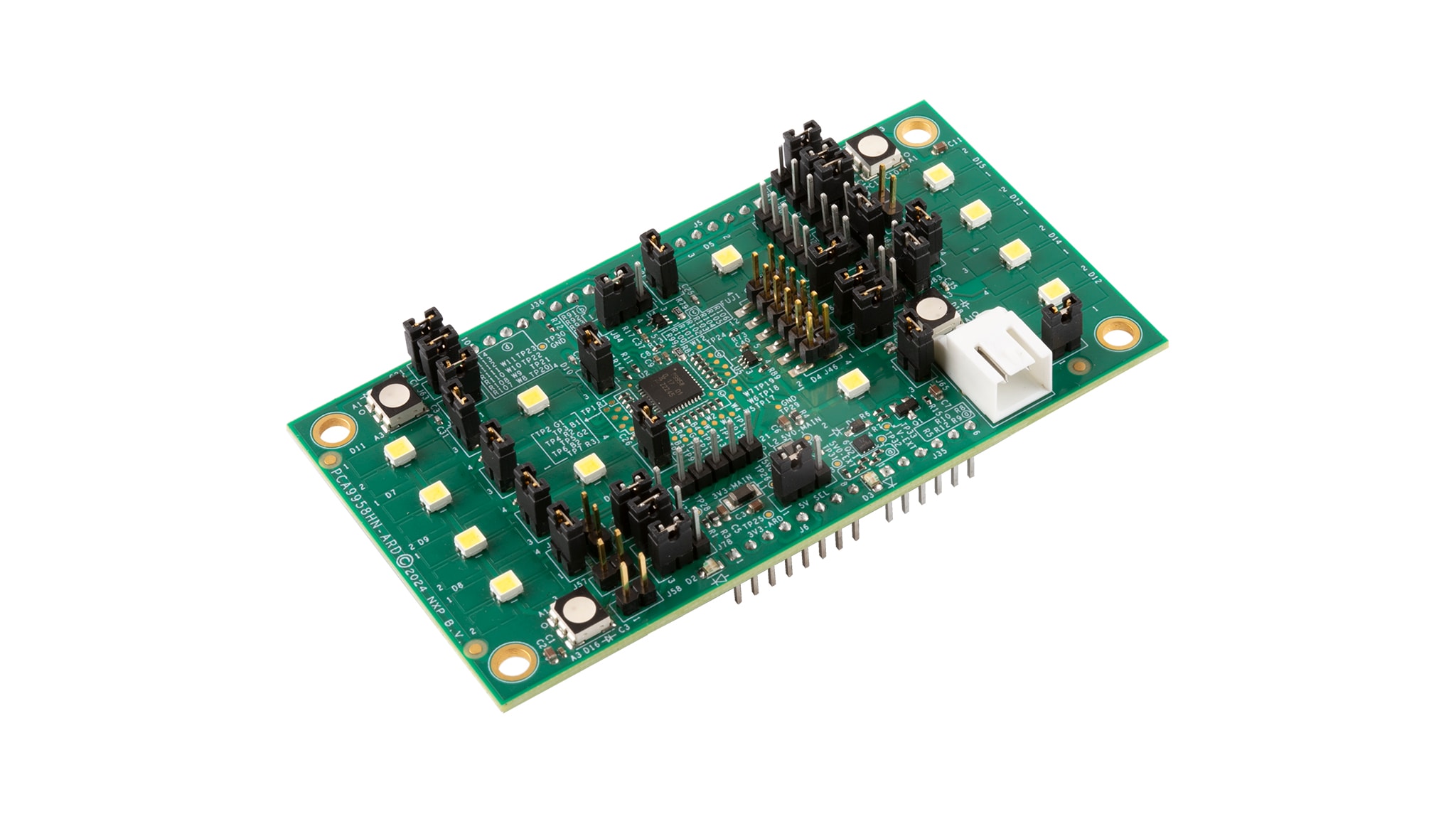

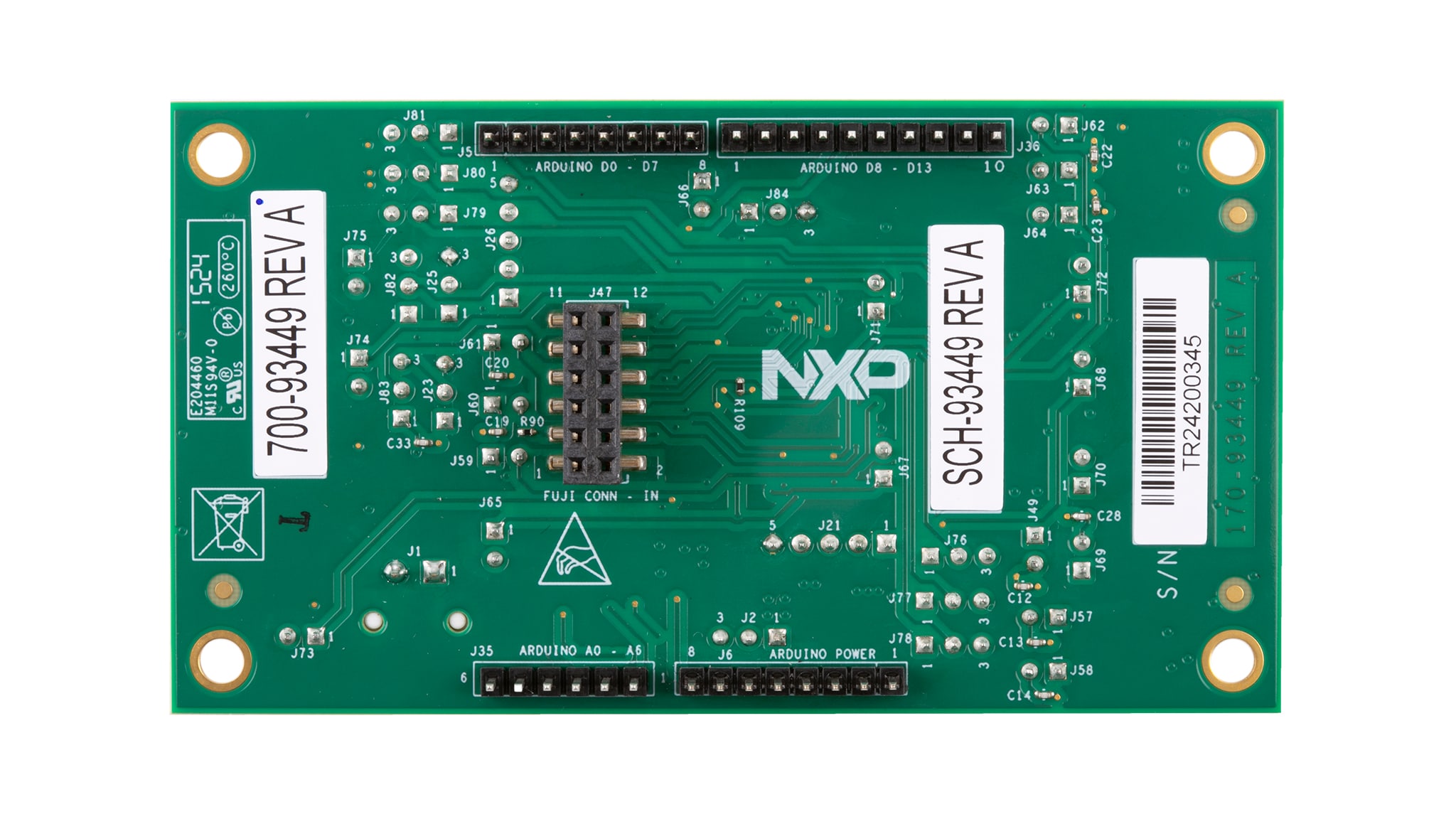

  • Arduino shield board that interfaces with compatible Arduino MCU boards, including Arduino Uno R3
  • Evaluation platform for PCA9958HN, a 24-channel SPI serial bus 32 mA, 5.5 V constant current LED driver
  • PCA9958HN-ARD connector supports a SPI daisy chain scalable architecture through stackable Arduino shields
  • Power from either Arduino or PCA9958HN-ARD connectors

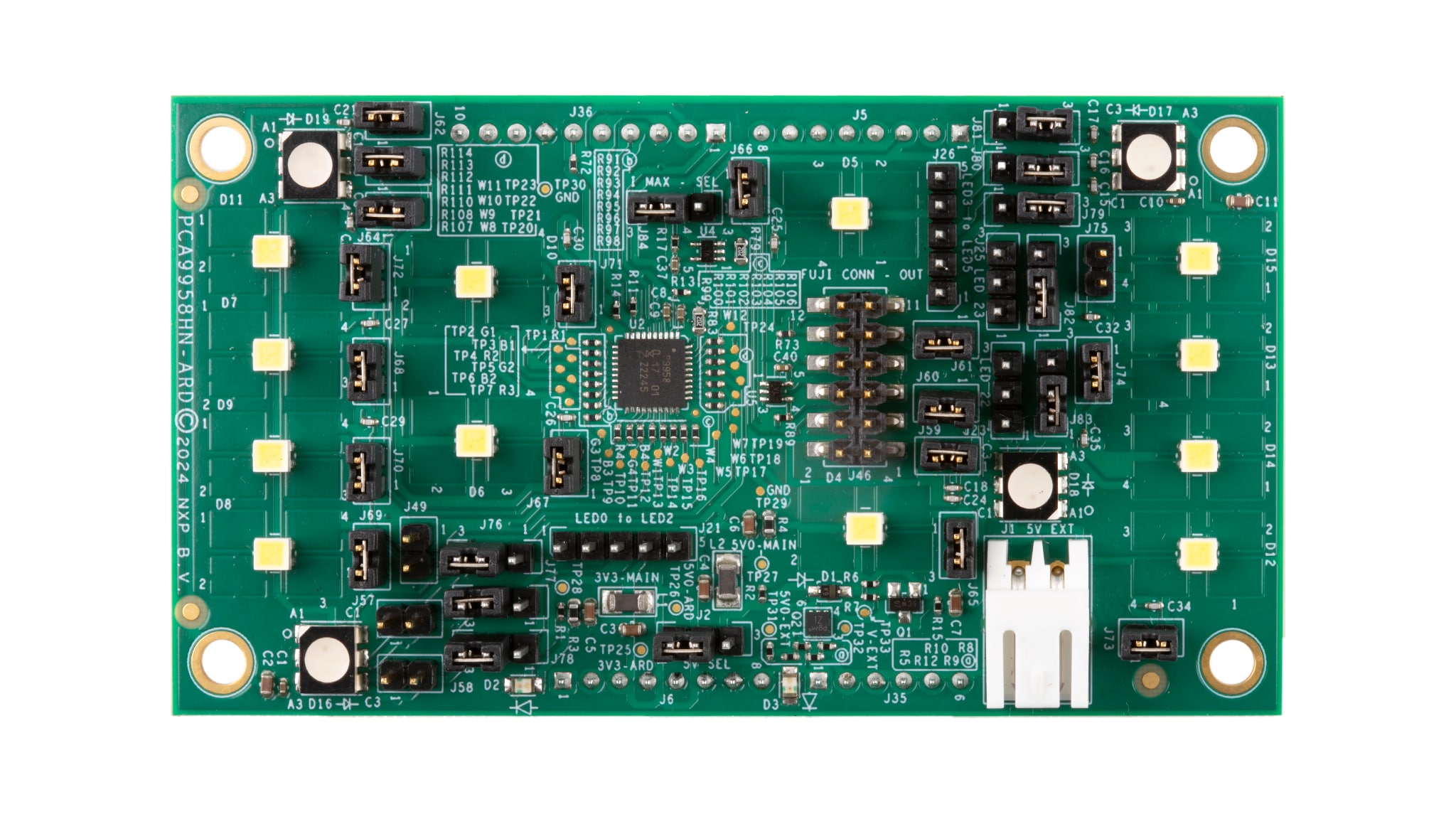

  • Windows based GUI enables control of four RGB and twelve discrete white LEDs
  • Contains jumpers and connectors that allow users to connect to external LEDs

Buy Options

PCA9958HN-ARD-Image

Click to expand

  • PCA9958HN-ARD
    Active

  • 24-Channel SPI Serial Bus 63 mA / 5.5 V Constant-Current LED Driver.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
    • Quick Start Guide
  • $25.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 38
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
