i.MX RT1064 Evaluation Kit

MIMXRT1064-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1064: i.MX RT1064: Crossover MCU with Arm® Cortex®-M7

Features

Processor

  • MIMXRT1064DVL6A processor

Memory

  • 256 Mb SDRAM memory
  • 512 Mb Hyper Flash
  • 64 Mb QSPI Flash
  • TF socket for SD card

Display and Audio

  • Parallel LCD connector
  • Camera connector
  • Audio codec
  • 4-pole audio headphone jack
  • External speaker connection
  • Microphone
  • S/PDIF connector

Connectivity

  • Micro USB host and OTG connectors
  • Ethernet (10/100M) connector
  • CAN transceiver
  • Arduino® interface

Software

  • MCUXpresso SDK with optional FreeRTOS support
  • MCUXpresso IDE
  • MCUXpresso Config Tools
  • Zephyr OS

Buy Options

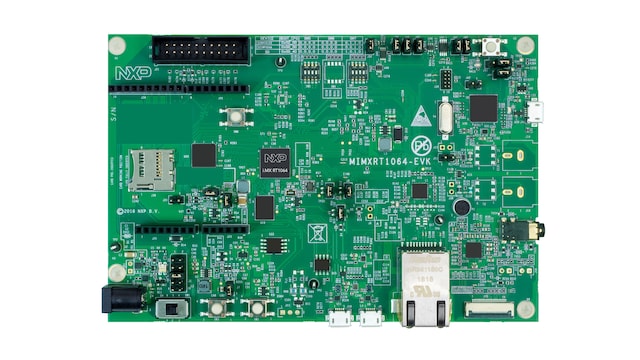

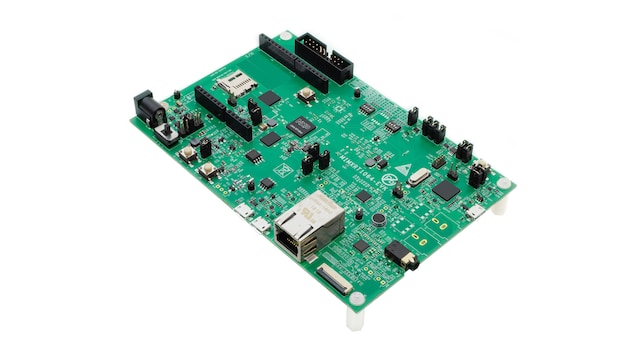

MIMXRT1064-EVK-Image

Click to expand

  • MIMXRT1064-EVK
    Active

  • i.MX RT1064 Evaluation Kit.

  • Kit Contains

    • MIMXRT1064-EVK board
    • USB cable (Micro B)
    • Camera sensor module
  • $148.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 27
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

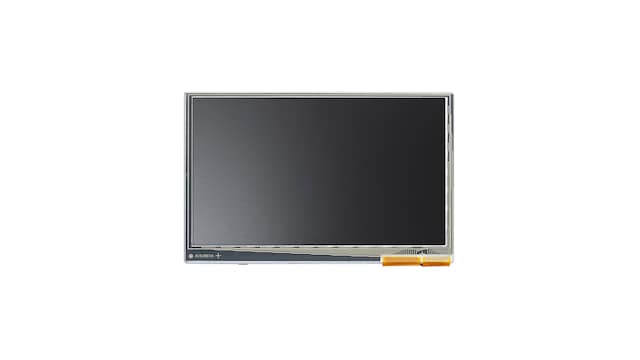

RK043FN02H-CT-Image

Click to expand

  • For a quantity of 1
Order from distributors
