IMXEBOOKDC5 6-inch E-paper Panel Daughter Card

IMXEBOOKDC5
Active

Roll over image to zoom in

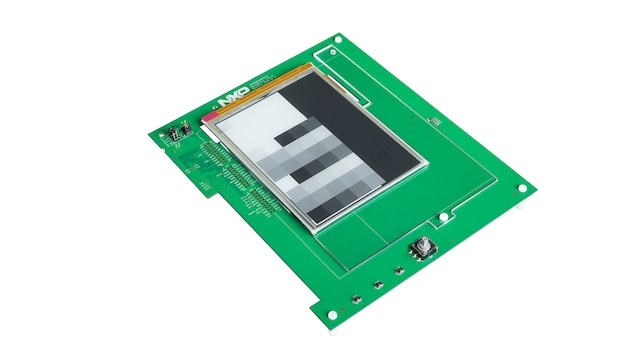

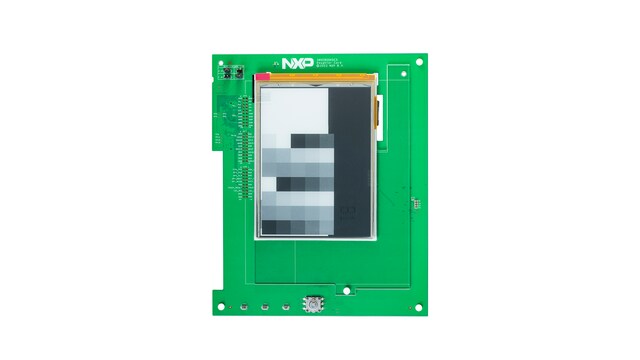

The IMXEBOOKDC5 board comes with a VB3300-FOC e-paper display module mounted, which is a 6-inch, 1024x758 pixel e-paper display featuring capacitive touch panel with front light.

This accessory board works with the i.MX 8ULP EVK for evaluation of e-reader applications. The IMXEBOOKDC5 board has a 120-pin connector that connects to the 120-pin connector of the i.MX 8ULP-EVK board.

Product Details

Features

Connectivity

  • Parallel EPDC interface

Display

  • E Ink® VB3300-FOC, 6-inch, 1024x758 pixels

Sensors

  • Capacitive touch panel

Buy Options

IMXEBOOKDC5-Image

Click to expand

  • IMXEBOOKDC5
    Active

  • 6-inch E-paper Panel Daughter Card.

  • Kit Contains:

    • IMXEBOOKDC5 Daughter Card with mounted 6-inch e-paper display panel.
  • $800.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
