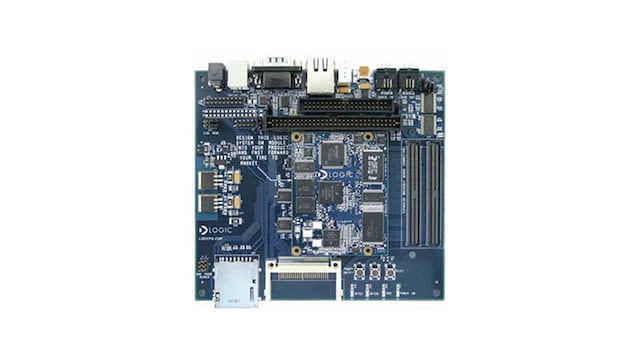

i.MX31 Lite Development Kit

i.MX31_LITE_KIT

Roll over image to zoom in

Developed in collaboration with Logic Product Development, the i.MX31 Lite Kit provides a low-cost, high-performance, product-ready software and hardware platform for OEMs, ODMs, IDHs and independent developers.

The i.MX31 Lite Kit enables rapid design of embedded products targeting the medical, industrial, wireless, consumer markets and general purpose markets. Leverage the power of our popular i.MX31 multimedia processor in this cost-effective development solution.

Click here for the full list of i.MX31 SoC features.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX Mature Processors

  • i.MX31: Applications Processors - Integrated Image Processing Unit (IPU), Connectivity , Arm11™ Core

Features

The i.MX31 SOM-LV is based on the i.MX31 multimedia applications processor running up to 532 MHz

  • LCD display connector
  • Integrated LCD, touch and backlight connector for zoom display kitsaudio
  • Stereo input and output jacks network support
  • One RJ45 Ethernet jack connector with magnetics (application/debug) PC card expansion
  • CompactFlash® type I card
  • MMC/SD card ATA support USB
  • One USB 2.0 high-speed host interface
  • One USB high-speed on-the-go device interface serial ports
  • 115.2 kbps RS-232 debug serial port Software
  • LogicLoader™ (bootloader/monitor)
  • Windows® CE 5.0 BSP
  • GNU cross development toolchain (compiler, linker, assembler, debugger) cables
  • Serial cable (null-modem)
  • Ethernet crossover cable
  • USB A to mini-B cable
  • 5 volt power supply (with Europe, Japan, UK, and US adapters) mechanical
  • 146.1 mm wide x 158.8 mm long x 17.1 mm high RoHS compliant
