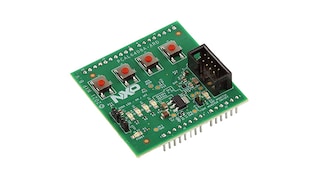

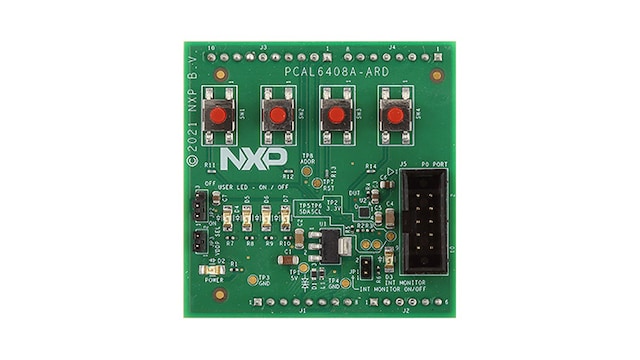

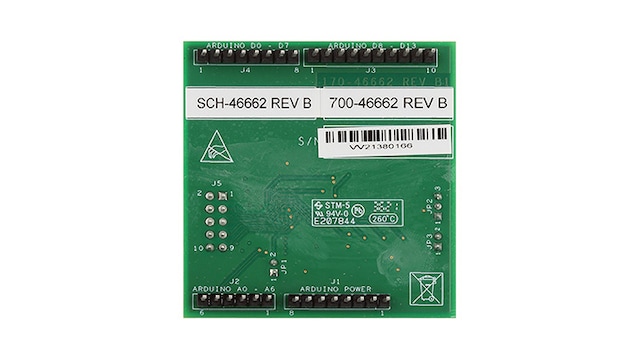

PCAL6408A 8-Bit GPIO Arduino® Shield

PCAL6408A-ARD

Roll over image to zoom in

The PCAL6408A-ARD Arduino Shield allows easy integration with Arduino EVKs to evaluate 8-bit general-purpose I/O expander features for interfacing to sensors, push buttons, keypads and more. A graphical interface allows the user to easily explore the different functions of the GPIO expander to create an evaluation system.

Supported Devices

Interfaces

General Purpose I/O (GPIO)

  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander

Features

General Features

  • I/O connector for external access to IC input-output pins
  • 4 user switches connected to I/O pins of the IC
  • 4 user LEDs connected to I/O pins of the IC
  • Equipped with Arduino Uno R3 port for direct connection with Arduino devices
  • Fully compliant with IMXRT1050 EVK board
  • Fully compliant with LPCXpresso55S69 dev. board
  • Compliant with i.MX Mini LPDDR4 EVK board

Buy Options

PCAL6408A-ARD-Image

Click to expand

  • PCAL6408A-ARD
    Active

  • PCAL6408A 8-Bit GPIO Arduino® Shield.

  • Kit contains:

    • PCAL6408A-ARD Arduino Shield
    • Quick Reference Card
    • Additional hardware required: USB A-to-MicroB cable (not included)
  • $97.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 37
    • Shipping: Normally ships 1-2 business days
ADD TO CART
