Automotive Development Platform Based on i.MX RT1170

i.MXRT1170-ADP

Roll over image to zoom in

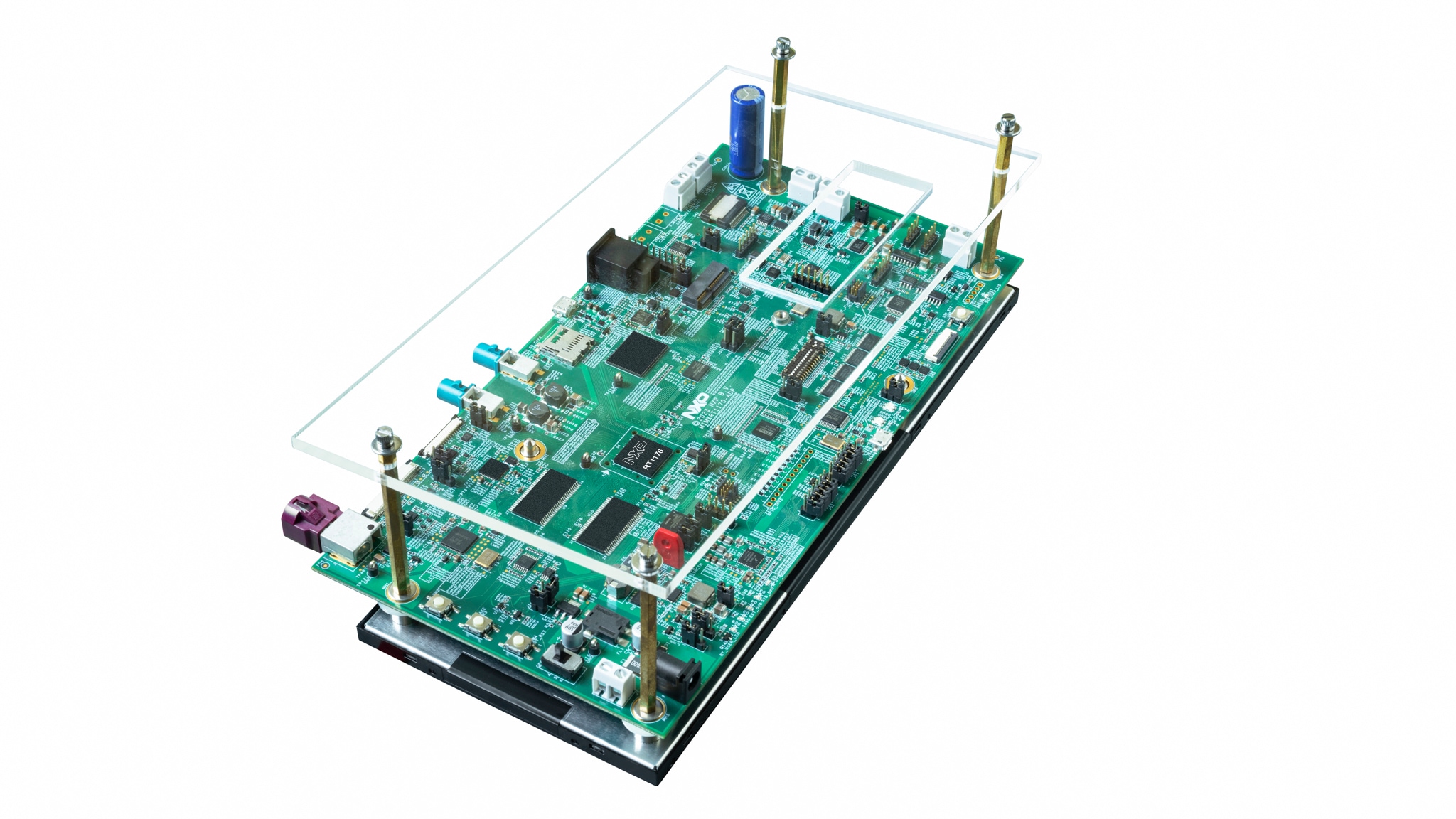

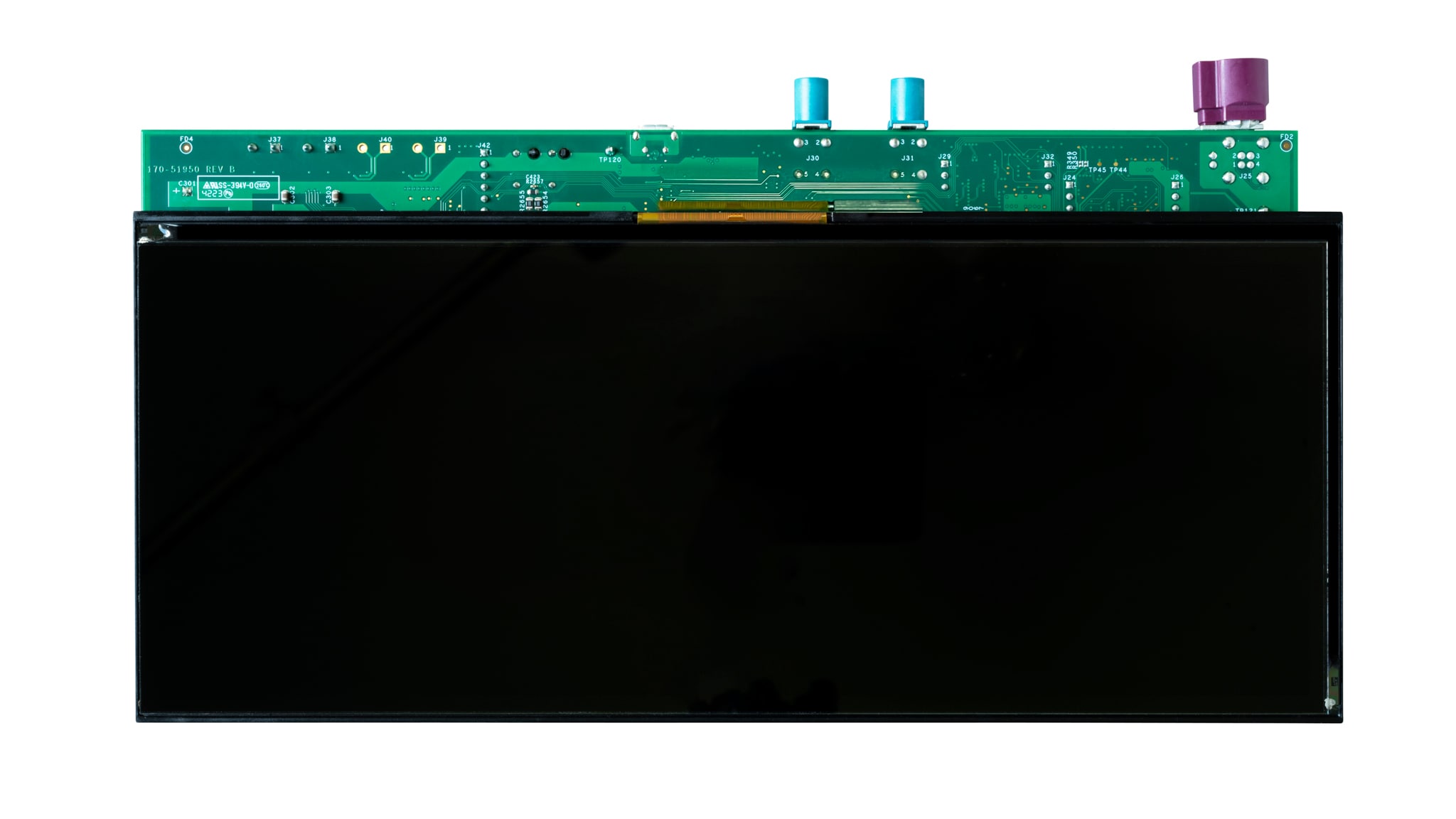

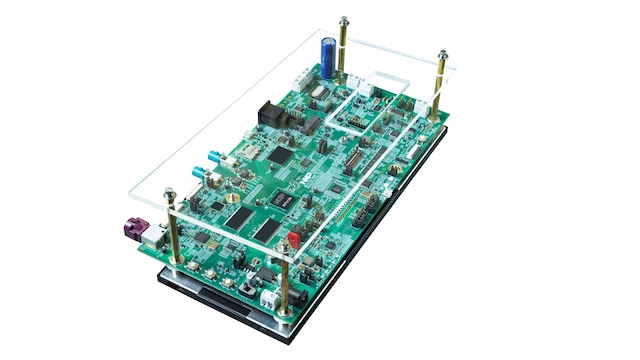

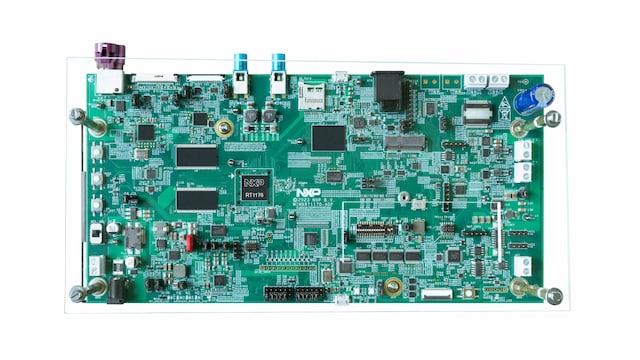

i.MX RT1176 Automotive Development Platform (ADP) targets to offer a solid foundation to quickly enable designs in the automotive market, including Infotainment, In-vehicle experience, Two wheeler Digital Connected Cluster, HUD, Standalone small Cluster, HMI, entry-level DMS, voice command, etc.

Block Diagram

MIMXRT1176-ADP

i.MX RT1170
Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • KW45: KW45: 32-Bit Bluetooth® 5.3 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M33 Core

Wi-Fi® + Bluetooth® + 802.15.4

  • AW611: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 Automotive Solution

Interfaces

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Automotive Ethernet PHYs

  • TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Power Management

PMICs

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level

Features

Hardware

  • i.MX RT1170 Auto part number (MIMXRT1176AVM8A)
  • Cortex-M7 up to 600 MHz under 125C; 800 MHz under 105C
  • PMIC PF5020 compliant with ASIL B and Dual Buck FS5600
  • S32K MCU compliant with ASIL-B
  • Automotive displays via LCDIF, MIPI DSI interfaces. RGB-to-LVDS interface, MIPI-DSI Serializer
  • Automotive camera via MIPI CSI interface, MIPI-CSI Deserializer
  • Audio (Microphone/Speaker)
  • Connectivity (M.2 connector WiFi/BT, Ethernet with safety PHY, CAN, USB)
  • Various memory interfaces (QSPI Flash, Octal SPI flash, HyperRAM, SDRAM, eMMC/SDCard)
  • 64 MB octal SPI flash and 64 MB 32 bit SDRAM for high performance application

Software

  • BSP based on SDK 2.15.1
  • Examples for drivers of peripherals
  • AW61x WiFi/BT stack library on ADP
  • LVGL based GUI example
  • 2-Wheeler example with Bluetooth bridge enabled (A2DP, HFP, H2H)
  • DMS example on ADP
  • NXP SBL OTA solution on ADP
  • QtMCU adaptation layer on ADP

Buy Options

MIMXRT1176-ADP-Image

Click to expand

  • MIMXRT1176-ADP
    Active

  • Automotive Development Platform Based on i.MX RT1170.

  • $1000.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
