NXP EdgeReady MCU-Based Solution for 3D Face Recognition

VIZN3D

Roll over image to zoom in

NXP’s EdgeReady MCU-based solution for 3D face recognition leverages the i.MX RT117F crossover MCU, enabling developers to quickly and easily add 3D face recognition with advanced liveness detection to their products, with the confidence that it will work in even the most challenging outdoor lighting conditions and can resist the most sophisticated spoofing attacks. 3D liveness detection defeats spoofing attempts using photographs or 3D models, and uses a high performance 3D structured light camera module (SLM) with an optional low-cost CMOS sensor-based RGB camera, without requiring the use an expensive, power hungry, Linux-based MPU with long boot times. The development kit for this solution, SLN-VIZN3D-IOT, comes with fully integrated turnkey software, for quick out-of-the-box operation, minimizing time to market, risk and development effort. Face recognition and liveness detection are done entirely offline, on the i.MX RT117F MCU, without using the cloud, addressing the privacy concerns of some consumers and eliminating the latency associated with cloud-based implementations. The solution includes an available remote registration capability to allow end users to register their faces from mobile devices.

Block Diagram

Choose a diagram:

i.MX RT117F 3D Face Recognition Hardware Block Diagram

i.MX RT117F 3D Face Recognition Hardware Block Diagram

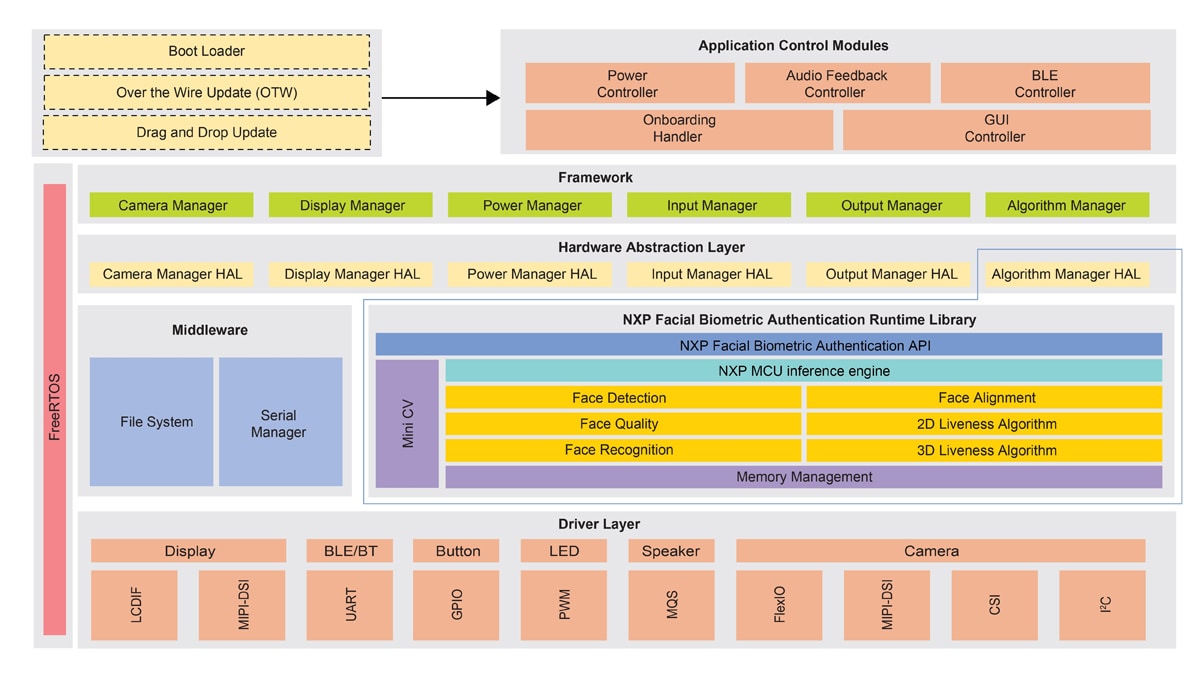

i.MX RT117F 3D Face Recognition Software Block Diagram

i.MX RT117F 3D Face Recognition Software Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

Features

MCU

Memory

  • 2 MB SRAM (i.MX RT117F internal)
  • 32 MB QSPI NOR Flash Module
  • 32 MB SDRAM PC200 Module

Camera

  • Orbbec 3D SLM Camera Module with Depth and IR Sensing
  • Optional RGB Camera Module with GalaxyCore GC0308 Image Sensor

Display

  • Optional Rocktech TFT Display with Parallel Interface

Low Power Radio

Motion Detection

    Optional Murata PIR Sensor

Audio Playback

    Optional MQS DAC (internal i.MX RT117F) to control inexpensive analog amplifier

Lighting

    Optional White LED Strobe with PWM LED driver

User Interface

    Optional User/Reset Switches and RGB Status LED

Toolchain

Software Development Kit (SDK)

ML/AI

    Smart Lock Application featuring NXP Machine Learning Face Recognition Engine

Phone App

    Android Smart Lock App for the Remote Registration

More

Buy Options

SLN-VIZN3D-IOT-Image

Click to expand

  • SLN-VIZN3D-IOT
    Active

  • NXP EdgeReady MCU-Based Solution for 3D Face Recognition.

  • Kit Contains:

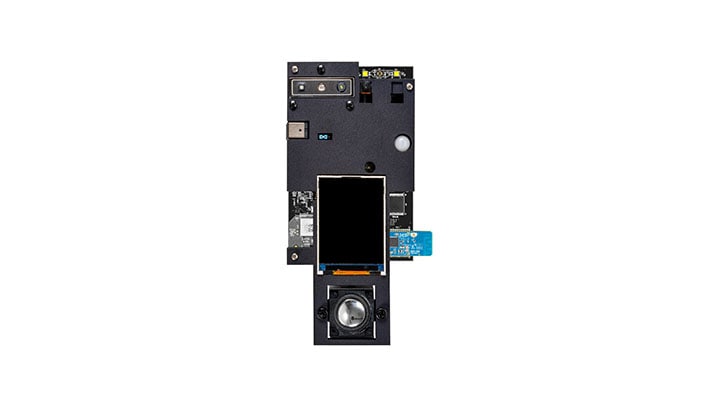

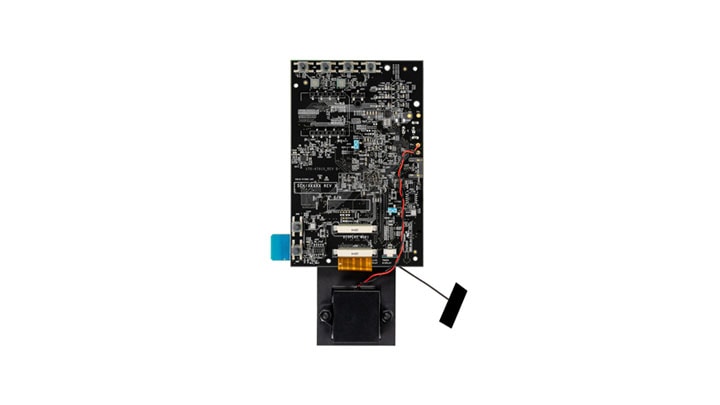

    • i.MX RT117F based secure 3D face recognition solution development kit
    • USB Type-A to USB Type-C Cable
  • $343.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 47
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
