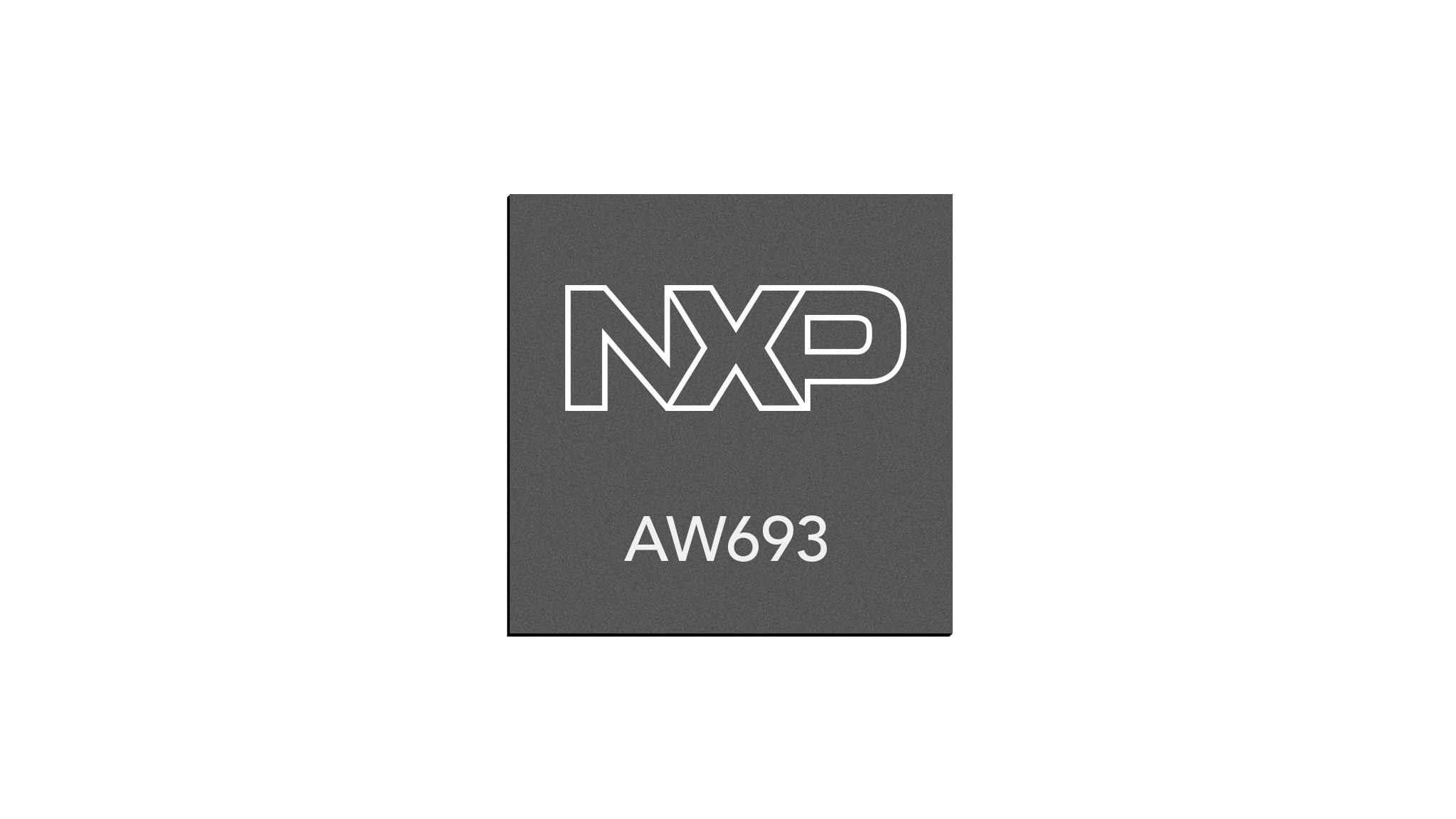

2x2 Dual-Band (5-7 GHz), 1x1 (2.4 GHz) Concurrent Dual Wi-Fi 6/6E and Bluetooth 5.3 Combo Solution
The AW693 is a highly integrated Wi-Fi 6/6E device enabling concurrent dual Wi-Fi (CDW) and Bluetooth 5.3 operation. AW693 supports four modes:
- Mode 1: CDW 2x2 Wi-Fi 6/6E 5-7 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 2: CDW 1x1 Wi-Fi 6/6E 5-7 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 3: 2x2 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 4: 2x2 Wi-Fi 6/6E 5-7 GHz (802.11ax)
The system-on-chip (SoC) implements advanced features including MU-MIMO, OFDMA, target wake time (TWT), and Bluetooth LE Audio. With integrated 2.4 GHz and 5-7 GHz TX power amplifiers (PA), RX low noise amplifiers (LNA) and Tx/Rx switches (T/R SW) as well as a full Bluetooth radio, the AW693 simplifies design. A three-antenna design is also supported. External front-end module (FEM) with PA and LNA is also supported.
The AW693 supports a flexible front-end design with either three or two antennas. The AW693 implements advanced real-time Wi-Fi and Bluetooth arbitration hardware in conjunction with software algorithms to optimize coexistence performance.
NXP’s Edgelock technology is integrated. The embedded Edgelock® secure subsystem (ELS) supports hardware crypto accelerated secure boot, key management, firmware authentication, secure life cycle management and anti-rollback protection.
The AW693 integrates dedicated CPUs and memories for both the Wi-Fi and Bluetooth subsystems for realtime, independent protocol processing. The interfaces to external host processors include PCIe for Wi-Fi and UART for Bluetooth. The AW693 is available in HVQFN148 and WLCSP packages and is AEC-Q100 Grade 2 compliant.
Wireless modules based on the NXP AW693 are offered by leading module manufacturers.
Product Details
Features
Wi-Fi Key Features
- 2x2 Wi-Fi 6/6E and 1x1 Wi-Fi 2.4 GHz concurrent dual wireless mode (mode 1)
-
2x2 radio
- 40 MHz channel for 2.4 GHz (RF paths 2A/2B)
- 1024 QAM (MCS11), up to 80 MHz channel for 5-7 GHz (RF paths 5A/5B
-
1x1 radio
- 20 MHz channel for 2.4 GHz (RF path C)
- 1024 QAM (MCS11), up to 80 MHz channel for 5-7 GHz (RF paths 5A))
-
2x2 and 1x1 radios
- STA and mobile AP
- Low-latency data exchange (LLDE)
- Wi-Fi TSF host clock sync between AP and STA
- PCIe host interface
Bluetooth Key Features
- Bluetooth 5.3
- High speed, long range, advertising extensions
- Isochronous channels supporting LE audio
- Integrated PA (+13 dBm)/LNA/SW
- Optional external PA/LNA
- UART host interface
Operating Characteristics
- Supply voltage: 1.8 V and 3.3 V
- Operating temperature: Automotive AEC-Q100 Grade 2: -40 to 105°C
- Storage temperature: -55 to 125°C
Partner Modules
AW693
2x2 Dual-Band (5-7 GHz), 1x1 (2.4 GHz) Concurrent Dual Wi-Fi 6/6E and Bluetooth® 5.3 Combo Solution| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
AW-XMA06 |
PCIe | UART | -40 to 105 | Antenna pin(s) | 3 | SMD | 23 x 23 x 2.58 | FCC | i.MX |
|
JODY-W683-01A |
PCIe, SDIO | UART, PCM/I²S | -40 to 105 | Antenna pin(s) | 3 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,GITEKI,BTSIG | i.MX 6/7/8/9 |
|
M2-JODY-W683-00C |
PCIe, SDIO | UART, PCM/I²S | -40 to 85 | U.FL connector(s) | 3 | M.2 card | 22.0 x 30.0 x 4.2 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8/9 |
RW612
1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.3 / 802.15.4| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
AW-CU570 |
- | - | -40 to 85 | Embedded antenna, U.FL Connector(s) | 2 | SMD | 28 x 15 x 3.15 | FCC, NCC | Hostless |
|
CMP4612-2-R |
SDIO, USB | UART | -40 to 85 | PCB-trace | 1 | SMD | 16.7 x 27.2 x 3.47 | FCC IC CE | i.MX / i.MX RT |
|
CMP4612-2C-R |
SDIO, USB | UART | -40 to 85 | U.FL Connector(s) | 1 | SMD | 16.7 x 27.2 x 3.47 | FCC IC CE | i.MX / i.MX RT |
|
CMP4612-2-EVB |
SDIO, USB | UART | -40 to 85 | PCB-trace | 1 | SMD | 16.7 x 27.2 x 3.47 | FCC IC CE | i.MX / i.MX RT |
|
LBES0ZZ2FR-580 |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 12 x 11 x 1.4 | TBD | Hostless |
|
IRIS-W101-00B |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 14.6 x 16.8 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W101-10B |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 14.6 x 16.8 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W106-00B |
- | - | -40 to 85 | Embedded antenna | 1 | SMD | 14.6 x 20.9 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W106-10B |
- | - | -40 to 85 | Embedded antenna | 1 | SMD | 14.6 x 20.9 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
ISP5261-WX |
- | - | -40 to 85 | Embedded Antenna | 1 | SMD | 12 x 12 x 1.8 | - | i.MX RT, MCX |
