2.4 GHz Single-Band 1x1 Wi-Fi® 4 (802.11n) Solution

88W8801 Active

The 88W8801 is a highly integrated, single-band (2.4 GHz) Wi-Fi 4 1x1 System-on-Chip (SoC), specifically designed to support High Throughput (HT) data rates. The device provides the combined functions of Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) baseband modulation, Medium Access Controller (MAC), CPU, memory, host interfaces, and direct conversion Wi-Fi RF radio on a single integrated chip.

For security, the 802.11i security standard is supported through several protocols. And for video, voice, and multimedia applications, 802.11e Quality of Service (QoS) is supported.

Host interfaces include USB 2.0 and SDIO 2.0 to connect Wi-Fi radios to the host processor.

The device is available in a 48-pin QFN package.

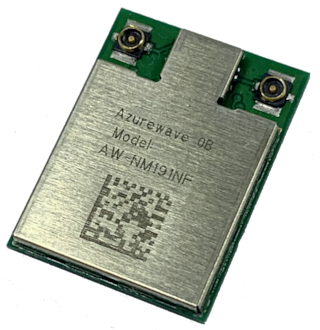

Wireless modules based on the NXP 88W8801 are offered by leading module manufacturers.

More

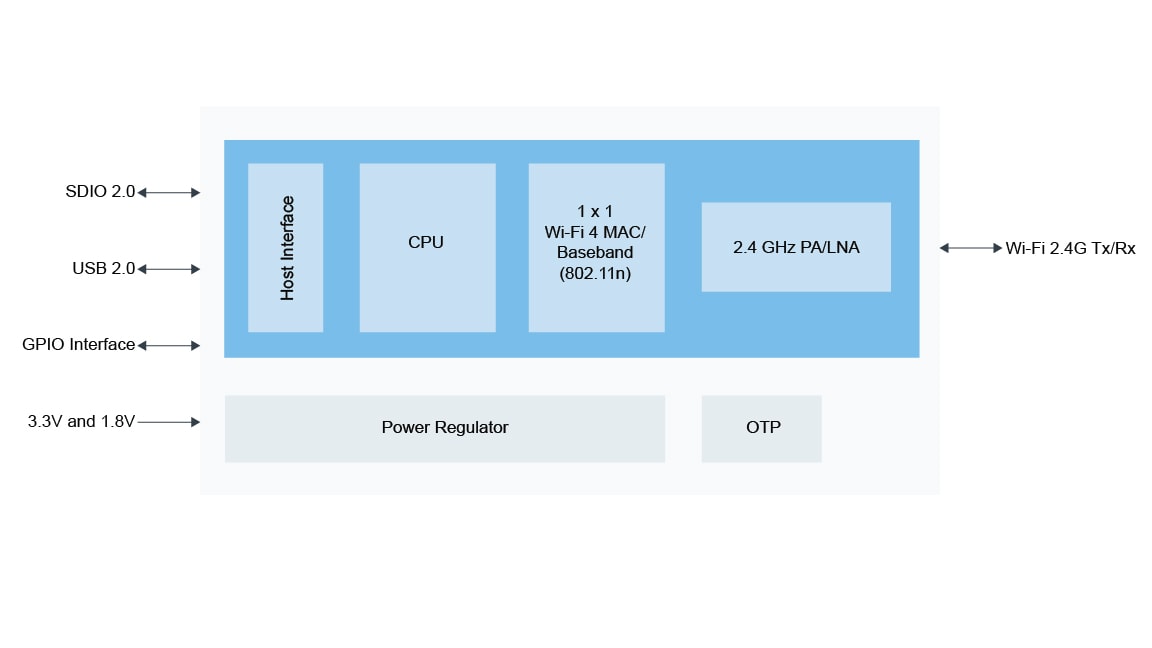

Block Diagram

88W8801 block diagram

88W8801 block diagram
Get diagram PDF

Features

Wi-Fi Key Features

  • 1x1 SISO and HT20 operation
  • 802.11e Quality of Service (QoS)
  • Thick MAC architecture
  • Simultaneous operation
    • Mobile AP and STA
    • Wi-Fi direct and STA
  • Supports WPA/WPA2 mixed mode and WPA3 security standards

Host Interfaces

  • USB 2.0 with Link Power Management (LPM)
  • SDIO 2.0

Operating Characteristics

  • Supply voltage: 1.8V and 3.3V
  • Operating temperature
    • Commercial: 0 to 70°C
    • Extended: -30 to 85°C
    • Industrial: -40 to 85°C
