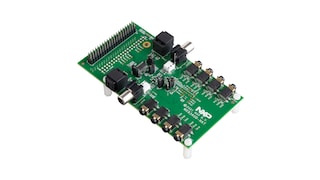

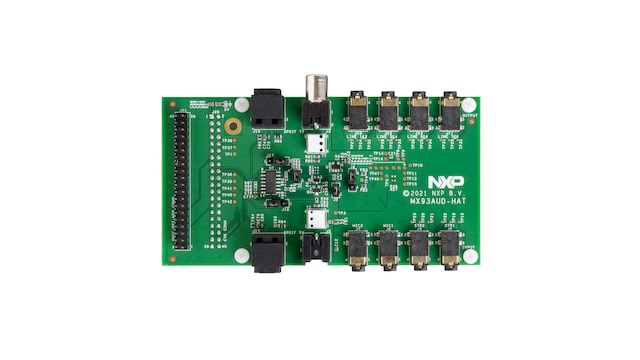

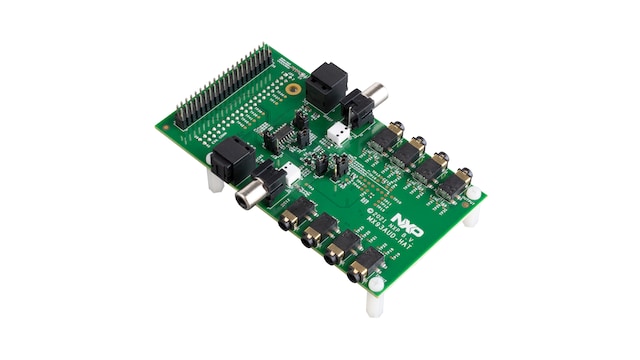

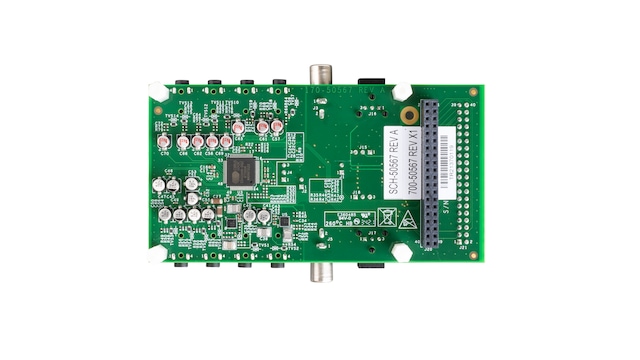

MX93AUD-HAT Audio Board

MX93AUD-HAT

Roll over image to zoom in

The MX93AUD-HAT is an entry level audio evaluation platform that is fully compatible with i.MX 93 EVK. It includes a multi-channel codec, S/PDIF and microphone interfaces.

Block Diagram

MX93AUD-HAT Audio Board

MX93AUD-HAT-BD
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

Features

  • S/PDIF TX/RX
  • 8-CH Line Out
  • 4-CH Line In
  • 2-CH Microphone
  • DMIC interface to connect to the 8MIC-RPI-MX8 microphone array board

Buy Options

MX93AUD-HAT-Image

Click to expand

  • $132.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
