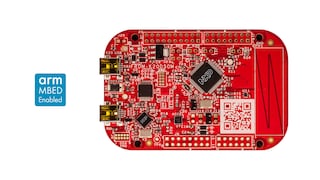

The Kinetis^® K20 72 MHz MCU family offers a scalable entry point into the mid-performance Kinetis portfolio with various levels of integration, featuring high-precision analog integration and flexible low-power.

Includes a rich suite of analog, communication, timing and control peripherals to accommodate a wide range of requirements
Maximizes board space and enhances performance with minimum-length interconnections
Enables miniaturization of existing applications
Delivers significant BOM savings through smart on-chip integration
Shares the comprehensive enablement and scalability of the Kinetis portfolio

Data Sheet

Reference Manual

Product Details

Block Diagram

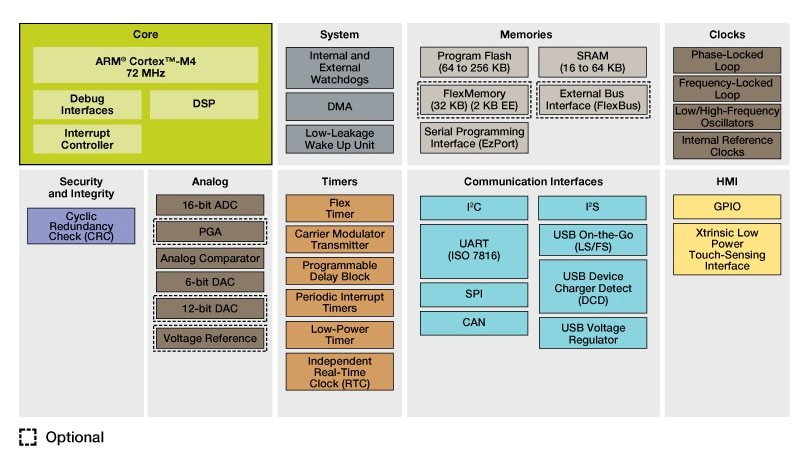

Kinetis K20 Mid-Performance USB MCUs Block Diagram

Get diagram PDF

Features

Ultra-Low-Power

10 low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <1.45 µA, run currents of <277 µA/MHz, 4 µs wake-up from Stop mode
Full memory and analog operation down to 1.71V for extended battery life
Low-leakage wake-up unit with up to eight internal modules and sixteen pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continual system operation in reduced power state

Flash, SRAM and FlexMemory

64-256 KB flash. Fast access, high reliability with 4-level security protection
16-64 KB of SRAM
FlexMemory: 2KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss or corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71V. In addition, 32KB FlexNVM for extra program code, data or EEPROM backup

Mixed-Signal capability

Up to two high-speed 16-bit ADCs with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
One 12-bit DAC for analog waveform generation for audio applications
Three high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Two programmable gain amplifiers with x64 gain for small amplitude signal conversion
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Performance

Arm^® Cortex^®-M4 core + DSP
72 MHz, single cycle MAC, single instruction multiple data (SIMD) extensions
16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Cross bar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

FlexTimer with a total of 8 channels. Hardware dead-time insertion and quadrature decoding for motor control
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows use of overlay surfaces upto 5 mm thick

Connectivity and Communications

USB 2.0 On-The-Go (full speed). Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off chip at 3.3V to power external components from 5V input
Up to 5 UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported for multiple industrial communication protocols
Inter-IC Sound (I²S) serial interface for audio system interfacing
One CAN module for industrial network bridging
Up to two DSPI and two I²C

Reliability, Safety and Security

Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch

External Peripheral Support

FlexBus external bus interface provides interface options to memories and peripherals such as graphics displays. Supports up to 6 chip selects and 2GB addressable space
